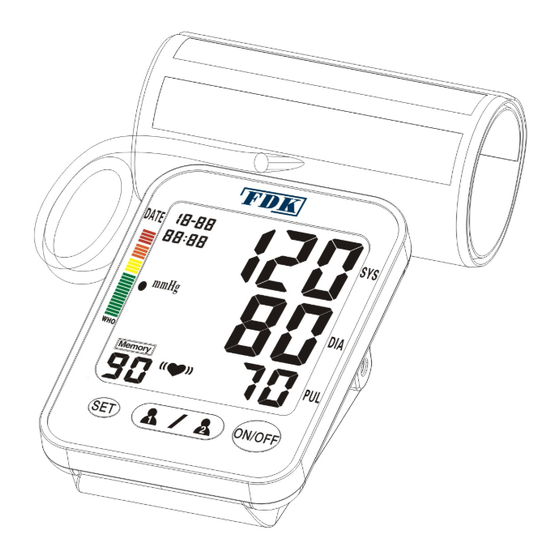

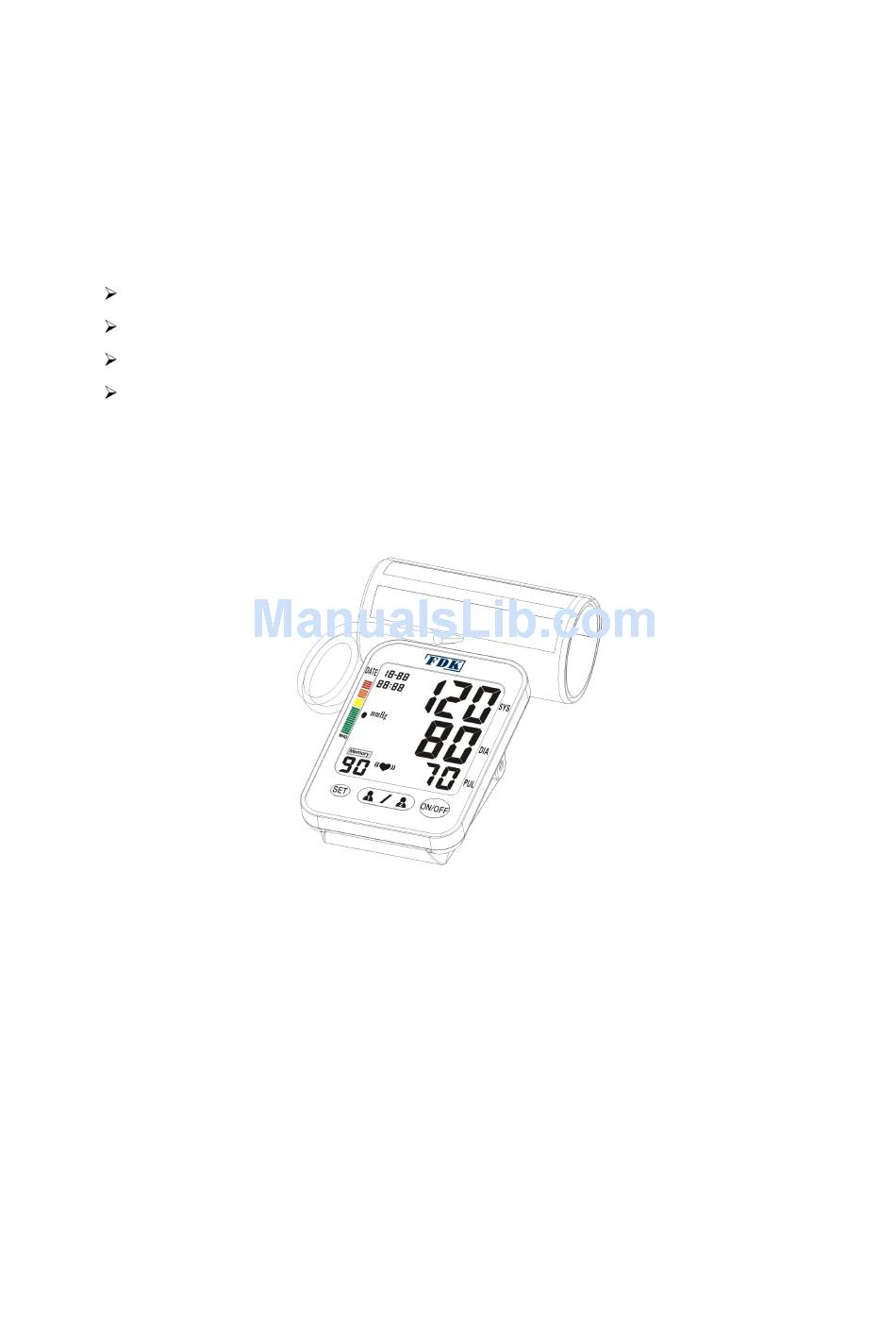

Arm Automatic Blood Pressure Monitor
(Electronic Sphygmomanometer)
Thank your for purchasing our product.
Please read this manual carefully before using the product.
Please keep the manual appropriately for future reference.
This User Manual is suitable to the following models: FT-C21Y, FT-C22Y, FT-C23Y,
FT-C24Y, FTC11B, FT-C12B, FT-C21Y-V, FT-C22Y-V, FTC23Y-V, FT-C24Y-V,
FT-C11B-V, FT-C12B-V, FT-C11B-UR and FT-C11B-BT.
Table of Contents
(I) General Information
(II) Precaution for Use and Maintenance
(III) Name of Each Part
(IV) Measure Procedure
(V) Troubleshooting
(VI) Model List
User Manual
Advertisement
Related Manuals for FDK FT-C21Y
Summary of Contents for FDK FT-C21Y
- Page 1 Please read this manual carefully before using the product. Please keep the manual appropriately for future reference. This User Manual is suitable to the following models: FT-C21Y, FT-C22Y, FT-C23Y, FT-C24Y, FTC11B, FT-C12B, FT-C21Y-V, FT-C22Y-V, FTC23Y-V, FT-C24Y-V, FT-C11B-V, FT-C12B-V, FT-C11B-UR and FT-C11B-BT.
-
Page 2: General Information
The cuff circumference is limited to 8.7 inches to 12.6 inches. Specification Product Name Arm Automatic Blood Pressure FT-C21Y, FT-C22Y, FT-C23Y, FT-C24Y, FTC11B, FT-C12B, FT-C21Y-V, FT-C22Y-V, FTC23Y-V, FT-C24Y-V, FT-C11B-V, FT-C12B-V, FT-C11B-UR Applied Models and FT-C11B-BT. - Page 3 ach measurement takes around 60 seconds, and each memory checking takes about 1 second Protection against electric Type BF Cuff shock IP classification IP21 Temperature: 10~40° C Humidity: ≤85% RH Working Environment Pressure: 86~106 kPa Temperature: -20~60° C Transport and storage Humidity: ≤85% RH Environment Pressure: 86~106 kPa...
-
Page 4: Precaution For Use And Maintenance
Cleaning Information: 1. If the device is very dirty, wipe it clean with a cloth moistened with sterilizing alcohol or a neutral detergent. Then wipe it with a dry cloth. 2. NEVER clean the blood pressure monitor with thinners or benzene, as they may damage it. - Page 5 5. Blood pressure measurement may not be possible for anyone with a weak pulse or arrhythmia. 6. Repeated blood pressure measurement may cause problems such as congestion or swelling in some people. 7. Frequently repeated blood pressure measurements will not give accurate results. Allow an interval of about 3 minutes between measurements.
- Page 6 Precautions for Maintenance: 1. DO NOT store the blood pressure monitor in locations exposed to direct sunlight, high temperatures (over 60° C), low temperatures (below -20° C), high relative humidity (over 85%) or excessive amounts of dust. 2. DO NOT drop the blood pressure monitor or subject it to other shocks or vibration. 3.
- Page 7 Figure 2 – Display of LCD Note for LCD display: (1) Date: Month - Day (2) Time: Hour – Minute (3) Systolic Blood Pressure (unit: mmHg) (4) Diastolic Blood Pressure (unit: mmHg) (5) Pulse Rate(unit: beat/minute) (6) WHO Blood Pressure Classification Indicator (7) Inflation / Deflation Indicator (8) Blood Pressure Measurement Unit (9) Battery Symbol...
- Page 8 Close the battery cover by gently sliding it into the compartment and pressing it into place.. See Figure 3. Note： ： ： ： When the LCD display shows “Low Battery” signal ,the batteries must be replaced for accurate readings. See Figure 4 Do not use rechargeable batteries (voltage 1.2V).
- Page 9 pressed and released, the YEAR will stop blinking and the MONTH will begin to blink. Press and release the “ ” button until the desired month is reached. See Figure 5. Repeat this process to set the DAY, HOUR, MINUTES. After you change the batteries, you have to readjust the date and time.
- Page 10 ★ Keep up right position on the same height of heart. ★ Do not bend with the cuff or the air tube. Do not inflate before fitting the cuff. ★ When the cuff is dirty, detach it from the equipment, wash the cuff by hand with proper detergent and rinse it in the enough cold water, dry in air.
- Page 11 able to place two fingers between the cuff and your arm. Figure 7 After you are in a comfortable position, press the “ON/OFF” button. The device will perform a self verification/check. During this verification/check the LCD will display all “8’s”. At the conclusion of the verification/check the LCD will display “00”. See Figure 8. If the device has voice function, it will speak out the displayed blood pressure, heart rate.
- Page 12 READING AN AVERAGE OF THE LATEST THREE MEASUREMENTS (AVg) ★ When the monitor is turned off, press and release the “ ” button. LCD will display “ ” in the upper corner of the LCD Display. The result that is first displayed and the result that is first announced –...
- Page 13 Figure 10 From the above figure, we can see the classification of blood pressure for adults is as below. The WHO BP Classification Indicating Bar would show out the blood pressure level by the color indicator . Blood Pressure SBP (mmHg) DBP (mmHg) COLOR INDICATOR Classification...
- Page 14 The device will speak out the last time displayed memory blood pressure (systolic and diastolic pressure), and heart rate when reading memory result. Note: The voice function is ONLY for models FT-C21Y-V, FT-C22Y-V, FT-C23Y-V, FT-C24Y-V, FT-C11B-V, FT-C12B-V. UART connection and Blue Tooth Function...
- Page 15 ★ Activate the blood pressure monitor which with UART port and start testing according to the normal blood pressure monitor operation method. ★ After testing the result including systolic pressure , diastolic pressure and pulse will display on LCD , press the SEND button to send these data to the receiving device such as mobile phone .
- Page 16 device. Speaking, frightened Do not speak, take deep breath nervous or excited 2~3 times to relax yourself. measurement Adjust position; refer to “Arm Cuff Wrong position Shows abnormal result Swathing”. Some interference in inflation or wrong Refer to the inflation step in operation during “Measuring process”.
- Page 17 3. The manufacturer are available for request of circuit diagrams, component part lists, descriptions ,calibration instructions ,or other information that will assist service personnel to repair those parts of the device 4. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
- Page 18 Guidance and manufacture’s declaration – electromagnetic immunity is intended for use in the electromagnetic environment specified below. The customer [EQUIPMENT or SYSTEM] or the user of should assure that it is used in such an environment. [EQUIPMENT or SYSTEM] Electromagnetic Immunity test IEC 60601 test level Compliance level...
- Page 19 Guidance and manufacture’s declaration – electromagnetic immunity s intended for use in the electromagnetic environment specified below. The customer [EQUIPMENT or SYSTEM] i or the user of should assure that it is used in such an environment. [EQUIPMENT or SYSTEM] IEC 60601 test Compliance Electromagnetic environment -...
- Page 20 Recommended separation distances between portable and mobile RF communications equipment and the [EQUIPMENT or SYSTEM] s intended for use in an electromagnetic environment in which radiated RF [EQUIPMENT or SYSTEM] i disturbances are controlled. The customer or the user of the can help prevent [EQUIPMENT or SYSTEM] electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications...
- Page 21 Explanation of Symbols: Symbol for batch code Symbol for manufacturer Symbol for ‘CE” Symbol for “electrical and electronic equipment” Symbol for “TYPE BF APPLIED PART” Symbol for “Follow operating instructions” IP21 Symbol for “the IP classification” Symbol for “ RF transmitters” Manufacturer: FUDAKANG INDUSTRIAL CO.,LTD Address :No.8 Yinghe Road, Yuanjiangyuan Management Zone, Changping Town, Dongguan, Guangdong China.
