3. BEFORE INSTALLATION

Upon receipt of this device, check for damage to the packaging or product.
DO NOT PROCEED with installation if any damage is found; contact your
supplier. Do not use extension leads with the device. This can pose a danger
particularly in the vicinity of a swimming pool.
Make sure the place you choose for installation meets the following conditions:
- Ambient temperature from -10~40℃
- 45 to 90 percent relative humidity, non-condensing
- Less than1000m above sea level
- Keep out of direct sunlight
- Good ventilation

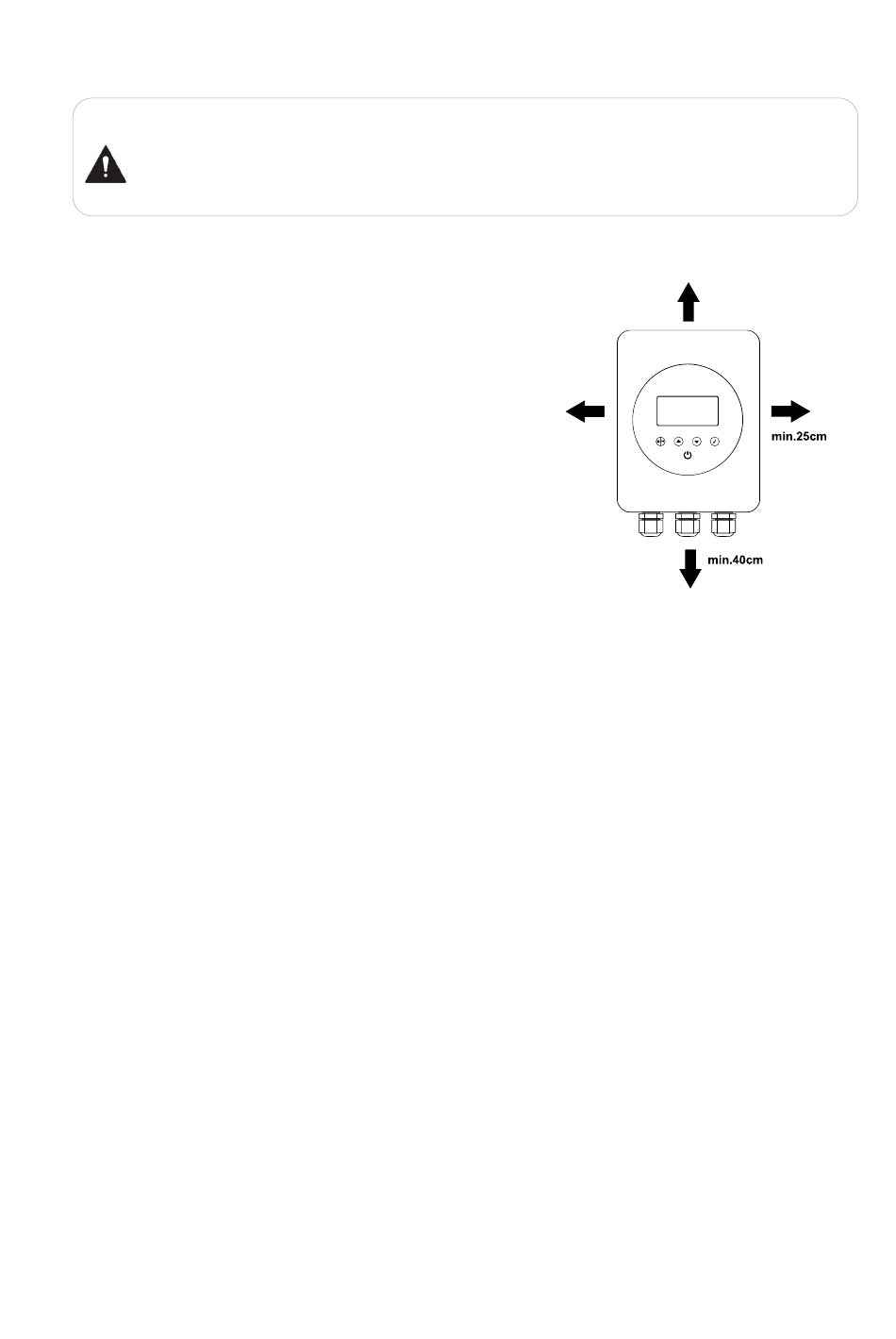

For efficient cooling, please make sure it is installed with a
minimum clearance surrounding it (Fig2)
Blocked ventilation or an enclosed space with limited air
flow may cause overheating or potential operational failure
of the inverter.

4. CONNECTING TO POOL PUMP

Please follow these steps and the wiring diagram for correct connection. The warranty may be
compromised if the device is not installed in accordance with instructions described in this
manual.
Only ONE pump can be connected to the inverter. Please do not connect any other appliance
to the output.
Mark the hole locations on the wall, drill and insert the expansion plugs supplied, fit the screws
and hang the device on the screws.
4.1 Turn off all electrical supply to the pool pump, unplug it from the main switch or at the
chlorinator which provides electrical power to the pump.
4.2 Plug the pool pump into the device's power outlet (marked PUMP CONNECTION ONLY).
4.3 Plug the device into the main switch/chlorinator/timer connection where the pump was
originally plugged into.
4.4 Switch all power back on.
4.5 Ensure chlorinator/timer is active.
4.6 Now the device is ready to operate.
Fig. 2
2
