1. IMPORTANT SAFETY INSTRUCTIONS

To make the best use of this energy saving device and to avoid potential risk of fire,
electrical shock, SERIOUS injury to people or damage to property, please read
this user guide carefully before installation and keep it for future reference.

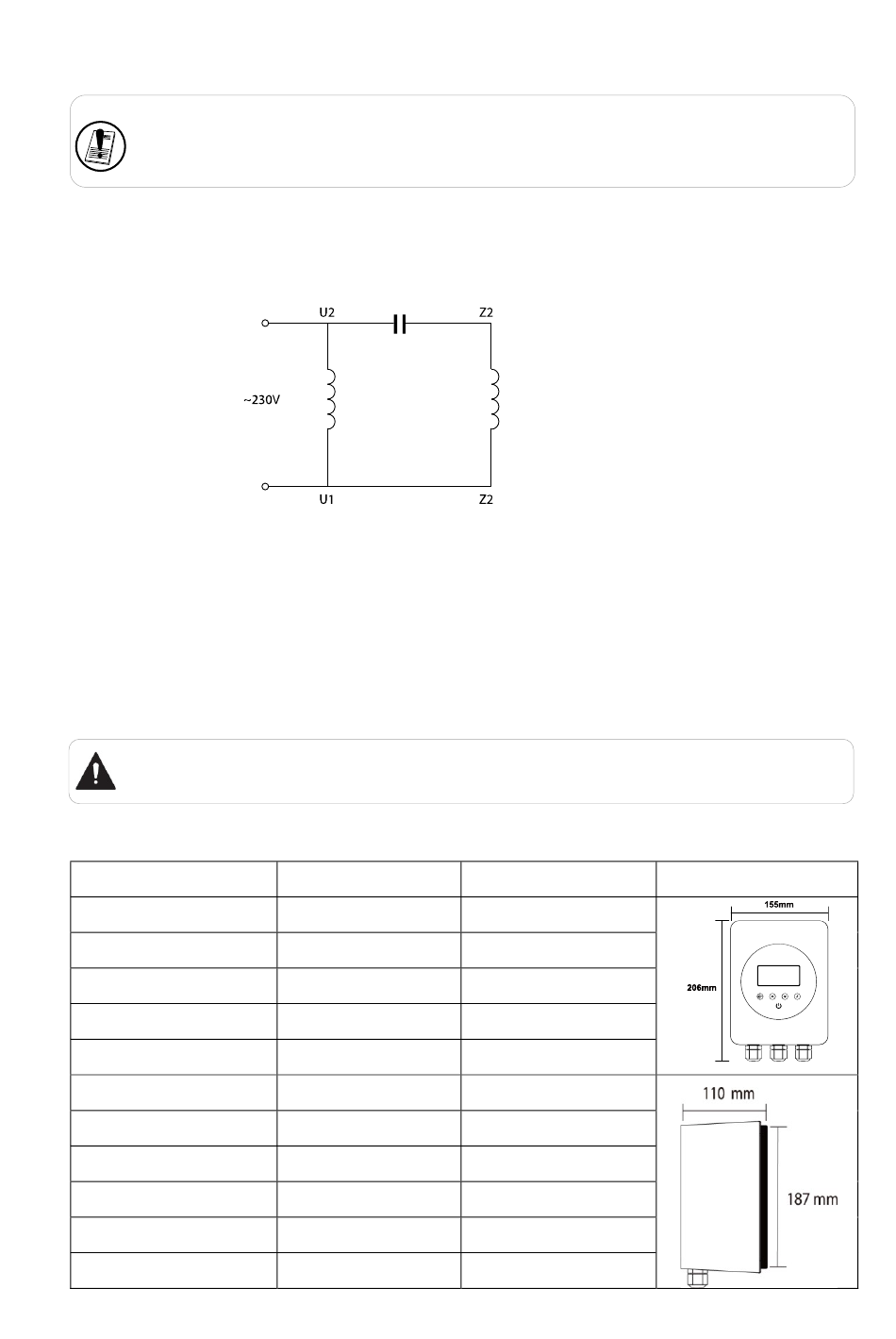

This device can ONLY be used with pool pumps with permanent split capacitor motor. The
schematic diagram below shows a typical single speed swimming pool pump motor.
1.1 It is NOT compatible with:
a. Single phase motors with centrifugal switch
b. Pool pump motors with start relays or switch
c. Series or DC motors
d. Pool pump motors with faults in their rotors or capacitors
e. Shaded-pole asynchronous motors
1.2 An RCD with a rated residual current not exceeding 30mA must be used with this product.
If you are not sure of the compatibility of your pool pump with this device, please
contact your supplier or manufacturer before proceeding with installation.

2. TECHNICAL DATA

Model
Input power
Input voltage
Input frequency
Output power
Output Voltage
Pump type
Max. current
Speed range
Cooling
Net Dimension (L*H*W)
Gross/Net Weight
Running Capacitor
Main
Winding
+
Power 1100
1 phase AC
220~240V
50Hz
Max 1.1kW
1ph, 0~240V
Single phase
Max 6A
1200~2900 rpm
Ventilation
187*110*155mm
3.0/2.7Kg
Auxiliary
Winding
Fig 1
+
Power 2200
1 phase AC
220~240V
50Hz
Max 2.2 kW
1ph, 0~240V
Single phase
Max 12A
1200~2900 rpm
Ventilation/Fan
187*110*155mm
3.0/2.7Kg
Dimensions
