HTP TIMER-DIG Installation Instructions page 2

1)
Connect the DIN connector back on to the
timer as illustrated and make sure the gasket is
securely in place and tighten the screw
(max.1Nm)
The unit will be IP65 when properly installed.
2)
Note: the voltage must comply with the voltage mentioned on the coil
3)

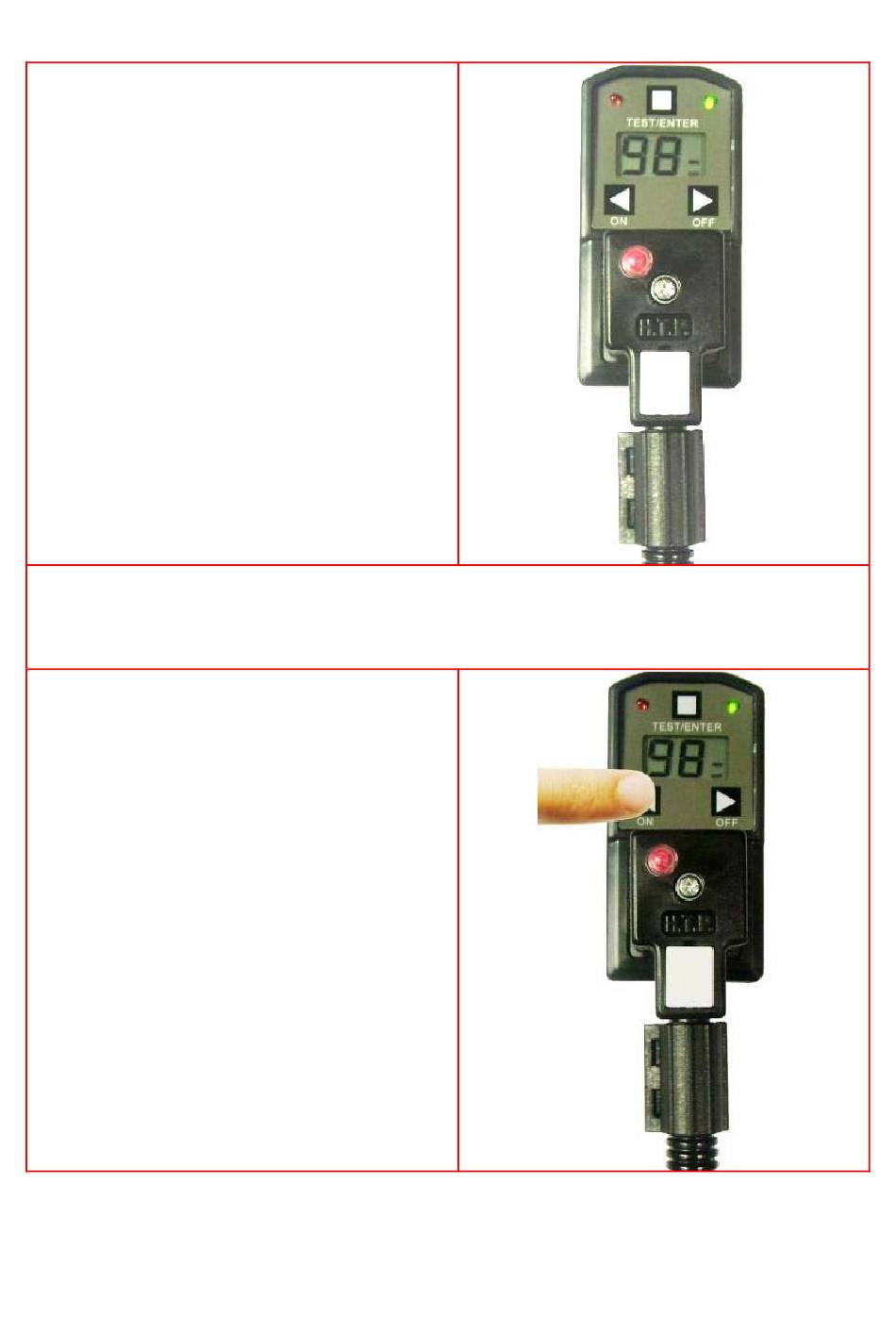

When the unit is installed correctly and operational, you can
change the pre-set values to anything ranging from 0.5 sec
to 99 sec. for the ON time.
To change the ON time simply press the left 'on' button for
3 sec. and 'sec' will start flashing on the display.
The previously set ON time will appear on the display and
the 'on' led will be on.
You can now press the left 'on' button for increasing the
time or the right 'off' button to decrease the time.
N.B.: from 0 sec. to 9,5 sec., step of 0,5 sec.
from 10 sec. to 99 sec., step of 1 sec.
INSTALLATION INSTRUCTIONS (part 1 of 2)
Switch ON the power.
Pag. 2
