Back Panel Dimensions; Left Hand Side Panel Dimensions - Eurotech Arcom VULCAN Technical Manual

Industrial compact enclosure ice
Hide thumbs Also See for Arcom VULCAN:
Table of Contents

Advertisement

VULCAN ICE

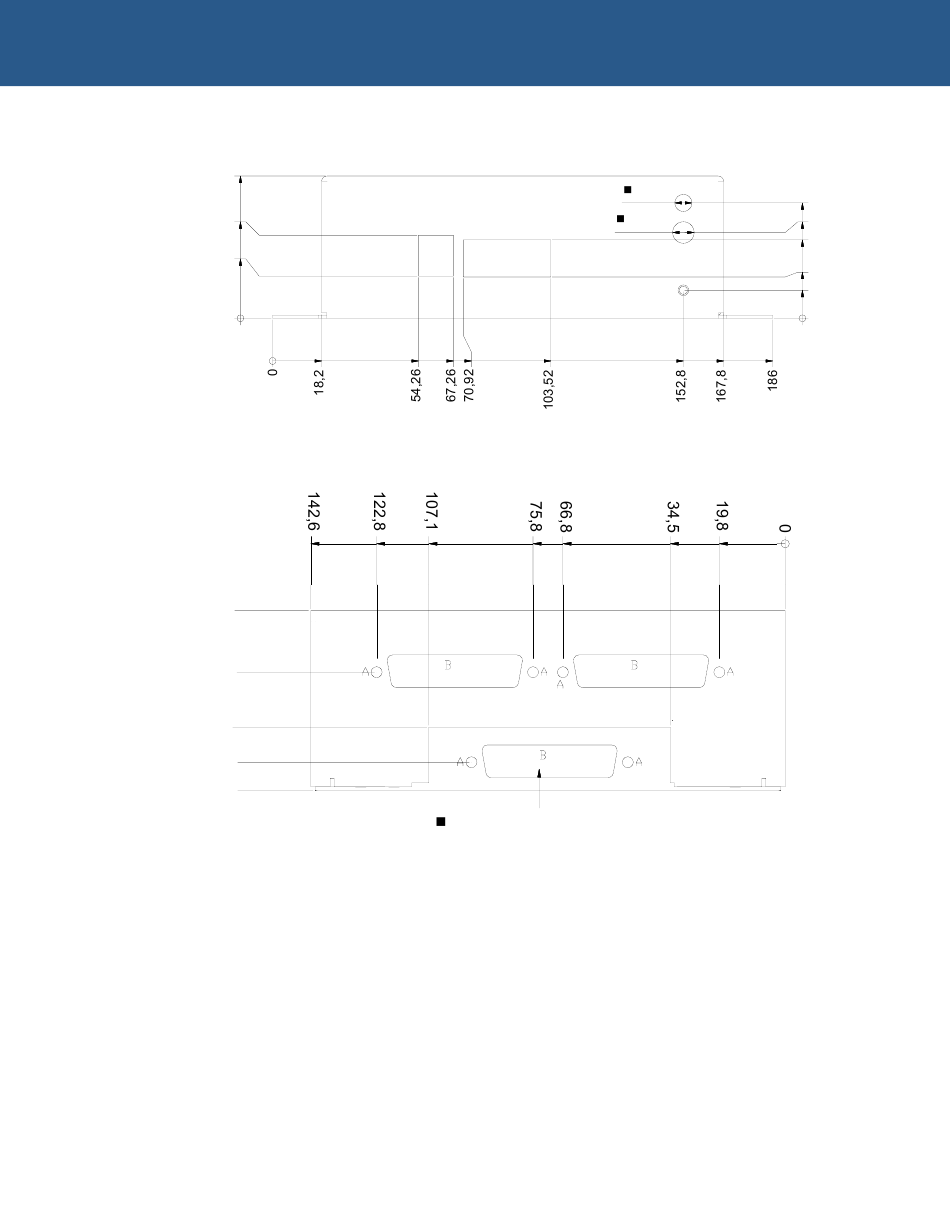

Back panel dimensions

52,95
30,9
15,7
0

Left hand side panel dimensions

54,3
35,8
19,2
8,6
0
All dimensions in mm.
© 2005 Arcom
Issue C
6 X 'A' HOLES @ 3,3
6,35
8
4 X B HOLES
25 WAY D PUNCH
Mounting details
42,95
31,95
29,2
15,4
10,45
0
16
