Ethernet (10/100Base-T) ports

Ethernet ports use dual shielded RJ45 connectors with LEDs. The connector is fitted
directly to the VULCAN board. Pin assignment is shown in the following table:
ETH0 Signal name ETH1
1B TX0+
2B TX0-
3B RX0+
4B N/C
5B N/C
6B RX0-
7B N/C
8B N/C
© 2005 Arcom Issue C
Signal name
1A TX1+
2A TX1-
3A RX1+
4A N/C
5A N/C
6A RX1-
7A N/C
8A N/C

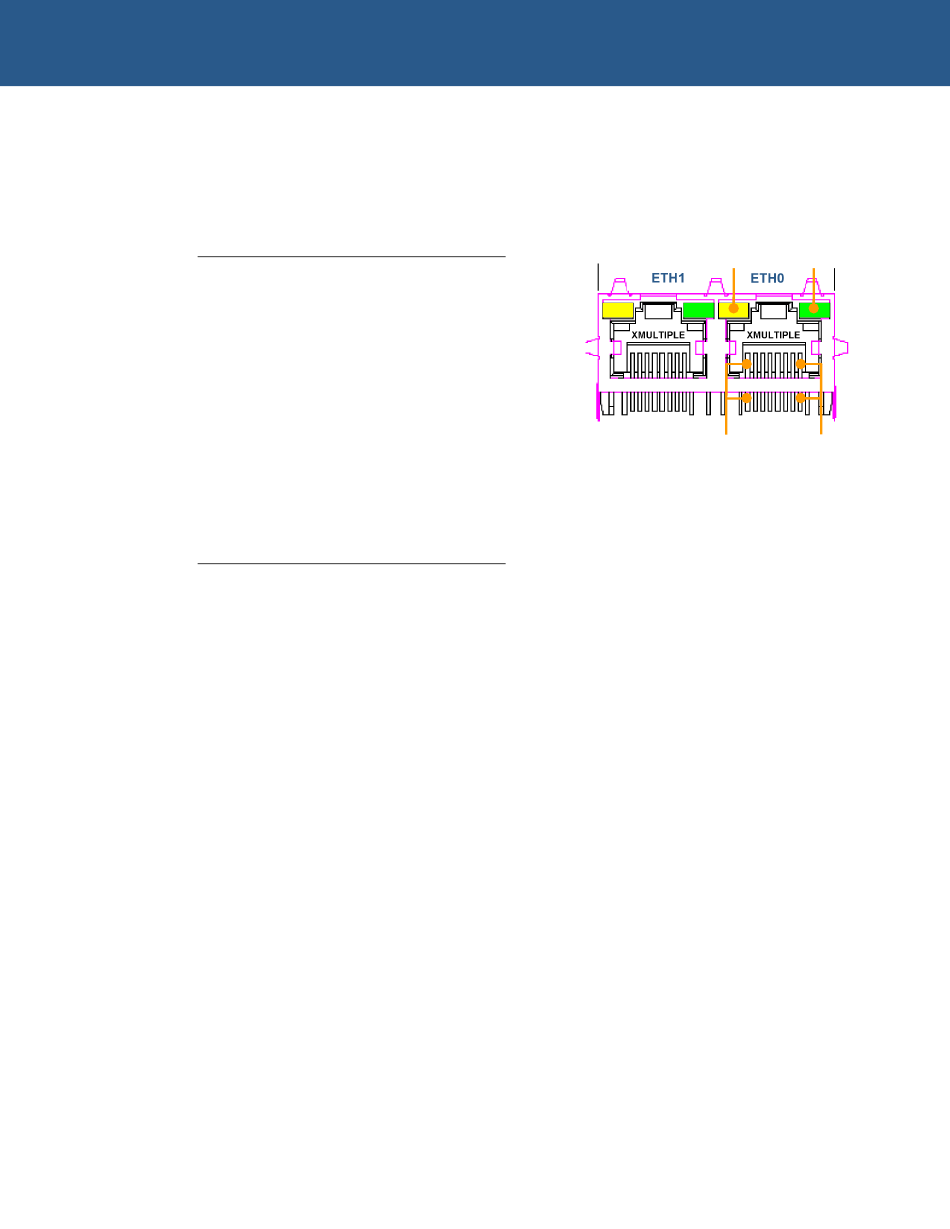

Connector details
LINK/ACT 100
Pin no. 8 Pin no. 1
typ. per typ per
port port
