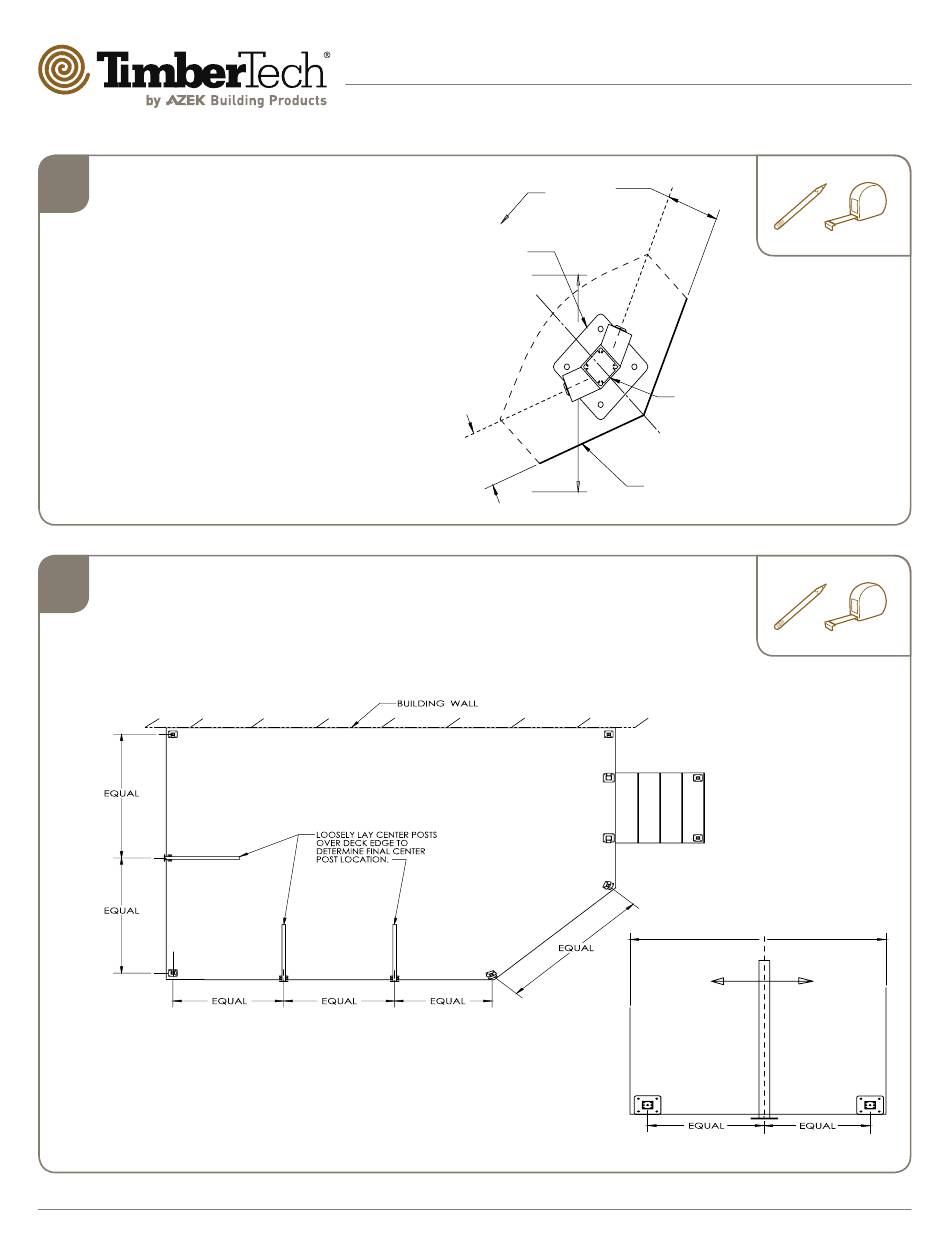

Install 45° Corner Posts
(Post to be installed at 22.5°
to accommodate a 45°
angle.)
Position post on same 3" centerline
(typical) and temporarily fasten to deck
surface. Use one 22.5° Panel Attach
Kit (purchased separately) to install 45
degree corner posts.
7
Determine Center Post Locations
Loosely lay center post over deck edge and
adjust as required to determine final center post
mounting locations.
(Dia. #8)
(Dia. #9 & #10)
PLAN VIEW
Dia. #9
Installing Impression Rail
TOP VIEW
3" CENTERLINE
TYPICAL
LOCATE 45°
ANGLED POST
Dia. #8
3" CENTERLINE
TYPICAL
Page 6
Express
™
Aluminum Posts
POST DISSECTS
DECK ANGLE
TYPICAL
DECK
EDGE
CENTER LINE
CLOSE UP
VIEW
Dia. #10
