Important Information
• Please read all instructions completely before starting any part of the installation. Always make sure to visit www.TimberTech.com to
ensure you are viewing the most current installation instructions, care and cleaning, technical information and more.
• Impression Rail Express should be installed using the same good building principles used to install wood, composite, or metal railing and
in accordance with the local building codes and the installation guidelines included below.
• The AZEK Co. LLC accepts no liability or responsibility for the improper installation of this product.
• Impression Rail Express may not be suitable for every application and it is the sole responsibility of the installer to be sure that Impression
Rail is fit for the intended use. Since all installations are unique, it is also the installer's responsibility to determine specific requirements in
regards to each rail application.
• The AZEK Co. LLC recommends that all applications be reviewed by a licensed architect, engineer or local building official before
installation. If you have any questions or need further assistance, please call AZEK Customer Service at 877-ASK-AZEK (877-275-2935),
or visit our website at www.TimberTech.com.
• Impression Rail Express is tested as a whole system and should be used that way. It is not intended to be used in conjunction with other
railing systems or fasteners.
• The following Installation Guidelines are applicable for installation of Impression Rail Express only.
• IMPORTANT: Make sure the DRIVE TOOL/DRILL is configured or set to use the SCREW setting when driving and/or tightening all
FASTENERS.
• SAFETY: Always wear goggles when handling, cutting, drilling and fastening materials.
• Failure to install this product in accordance with applicable building codes and Impression Rail Express's written Rail Install Guide may
lead to personal injury, affect rail system performance and void the product warranty.
• The buildup or generation of static electricity is a naturally occurring phenomenon in many plastic based products such as carpeting,
upholstery, and clothing, and can occur on alternative decking under certain environmental conditions. This static electricity can discharge
once contact is made with hardware, railing, or other conductors of electricity.

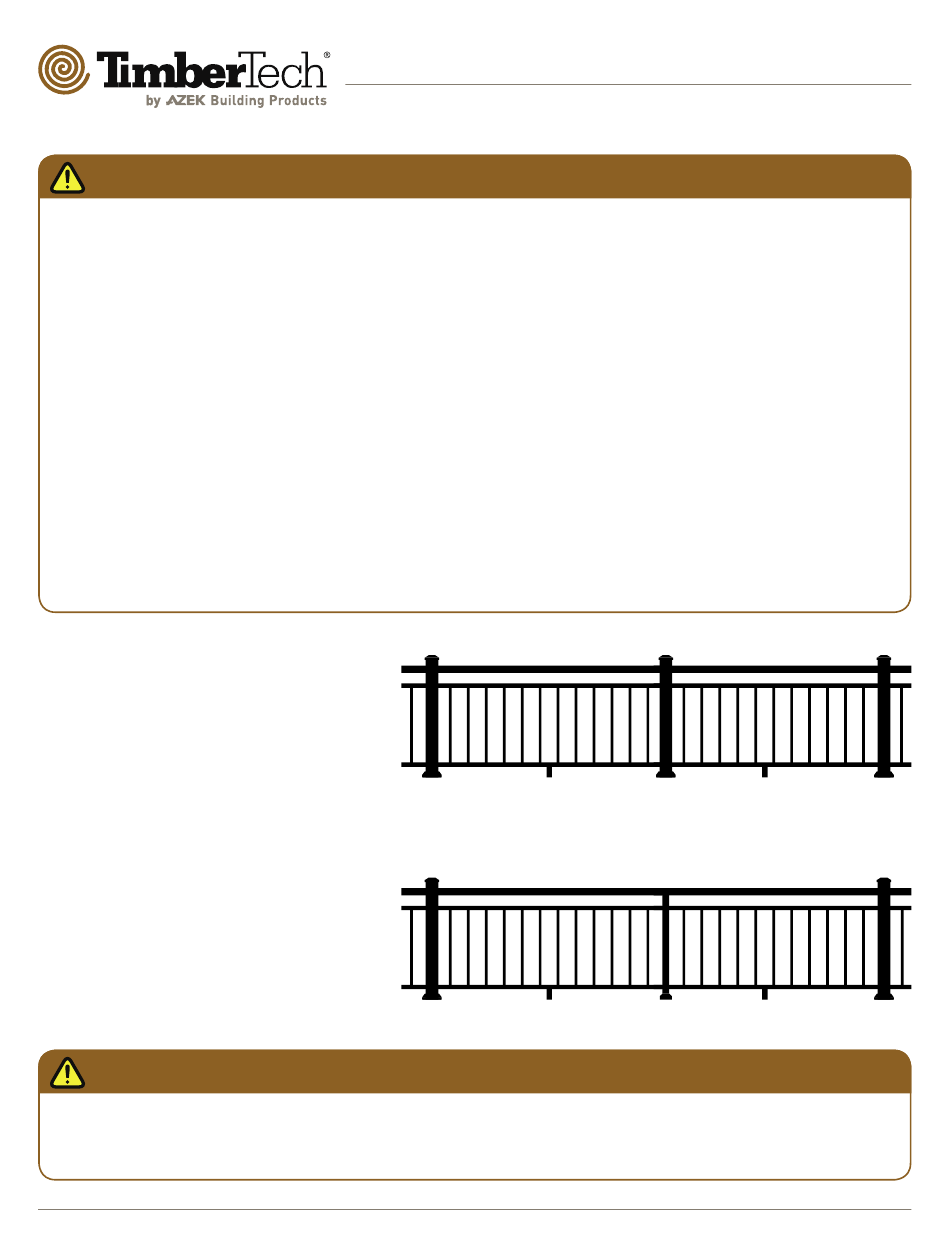

Standard Open Mid-Rail System
Each Panel Requires:
• 36" X 6' Panel Kit
• One additional Bottom Snap
• One unpunched H-Channel
• Rail Attach Kit (one kit for two panels)
• 6 Deck Rail Clips per bay
Continuous Top Rail Open Mid-Rail System
Each Panel Requires:
• 36" X 6' or 8' Continuous Top Rail Panel Kits
• One additional Bottom Snap
• One unpunched H-Channel
• Rail Attach Kit (one kit for two panels)
• Continuous Top Rail (span up to 18')
• 5 Deck Rail Clips per bay
• One Crossover Bracket
Important Note:
Prior to construction, check with your local regulatory agency for special code requirements in your area.
Common railing height is 36" or 42". Post spans will vary depending on job site conditions. Never span more than 8' on-center between railing
posts. Spans longer than 12' in length will require reduced post spans. When you cut a kit to create two panels, for instance, cutting 8' to two 4',
you will need an additional hardware kit. Read instructions completely to get an understanding of how the product goes together and how each
piece affects the other.
Installing Impression Rail
Open Mid-Rail Aluminum Railing System
Page 2
Express
™
