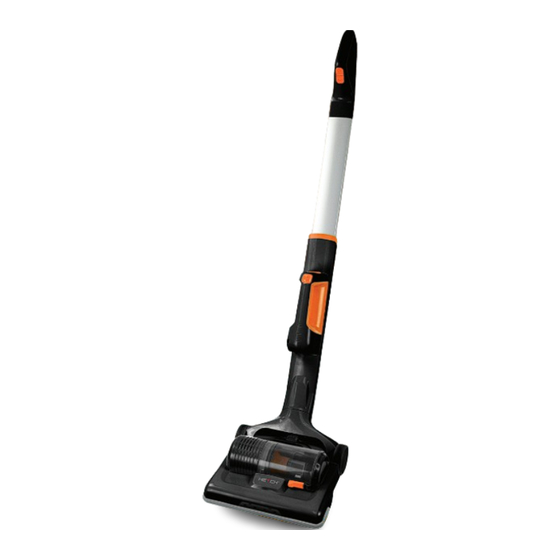

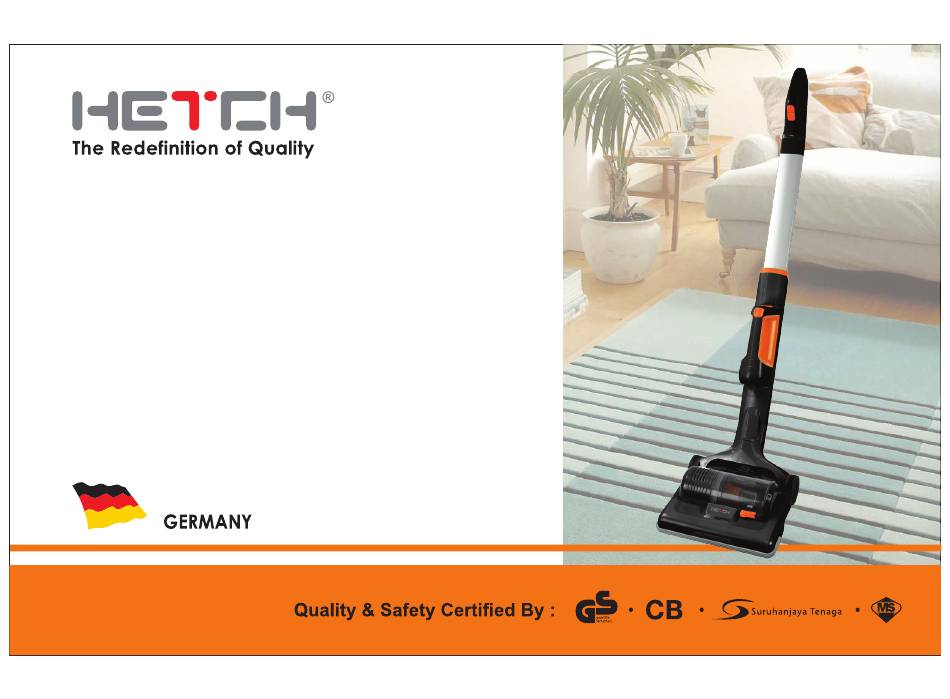

- Page 1 HETCH Cordless + Dual Battery Vacuum Cleaner (user manual) Cordless + Dual Battery Vacuum Cleaner Model No. : CVC-1407-HC Size : 160 x 105mm Paper : 230gsm Art Card (cover matt laminate)
- Page 2 . Important Safety Instructions . Parts Identification . Operation Instructions . Care & Maintenance . Troubleshooting . Specifications . Warranty Card Page : 2...
-
Page 3: Important Safety Instructions
A. IMPORTANT SAFETY INSTRUCTIONS IMPORTANT : READ ALL INSTRUCTIONS BEFORE USE. RETAIN INSTRUCTIONS FOR FUTURE REFERENCE. Do not use in rain or leave outdoors whilst raining WARNING: Basic safety precautions should always be observed when using an electrical appliance, including the following to reduce the risk of fire, electrical shock, or injury. - Page 4 A. IMPORTANT SAFETY INSTRUCTIONS Electrical Safety : Only use batteries and chargers supplied by the manufacturer. Never modify the charger in any way. The charger has been designed for a specific voltage. Always check that the mains voltage is the same as that stated on the rating plate.
- Page 5 A. IMPORTANT SAFETY INSTRUCTIONS Battery Safety : This appliance includes Li-ion batteries, do not incinerate batteries or expose to high temperatures, as they may explode. Liquid ejected from the battery may cause irritation or burns. In an emergency situation contact professional help immediately. Leaks from the battery cells can occur under extreme conditions.
- Page 6 A. IMPORTANT SAFETY INSTRUCTIONS Service : Before using the appliance and after any impact, check for signs of wear or damage and repair as necessary. Do not use the appliance if any part is damaged or defective. Repairs should be carried out by an authorised service center in accordance with relevant safety regulations. Repairs by unqualified persons could be dangerous.
-
Page 7: Parts Identification
B. PARTS IDENTIFICATION Other Accessories : ON/OFF button and +/- button 2-in-1 Brush and Holder Additional Battery Pack Handle and aluminium tube Long Flat Nozzle Flexible Hose Li-Ion Battery Pack with handle Extention Tube Battery Charging Steel Filter HEPA Filter Indicator Soft Brush Motor Unit... - Page 8 C. OPERATION INSTRUCTIONS How to use (Use as a floor cleaner) : 1. Assembly. a) Slot the handle into place until it clicks. b) Attach the battery into place. c) Put the accessories holder into place. Page : 8...
- Page 9 C. OPERATION INSTRUCTIONS 2. Operation. a) Place your foot on the body and pull the handle to release lock. b) Press ON/OFF button to turn on. c) Press +/- button to adjust speed (two speed). b,c) +/- button Page : 9...
- Page 10 C. OPERATION INSTRUCTIONS 3. Battery charging. a) When three lights turn off (one by one), recharge the battery. b) Connect the charger to battery. c) After 4 hours, three lights turn green and charging is completed. Page : 10...
- Page 11 C. OPERATION INSTRUCTIONS 6. Cleaning a jam. a) If the brush bar jams during use, it will stop and the lights will turn off. b) Before checking for a blockage, remove the battery. c) Carefully remove any hair or fiber from brush bar. Page : 11...
- Page 12 C. OPERATION INSTRUCTIONS D. OPERATION INSTRUCTIONS CONTROL PANEL FUNCTIONS SOUP SMOOTH (Use as a handheld vacuum) With this function the contents will mix and cook for 20 minutes. The unit then stops automatically. 1. Assembly. SOUP CHUNKY a) Remove the dust container and remove the battery pack. With this function, the contents will mix and cook for 25 minutes.
- Page 13 C. OPERATION INSTRUCTIONS 2. Operation. a) Press ON/OFF button. ON/OFF button Page : 13...
- Page 14 C. OPERATION INSTRUCTIONS (Storage of the unit) : a) Take the accessory holder off the unit. b) Press the button and take the handle out. c) Attach the holder to the unit hook. Page : 14...
-
Page 15: Care And Maintenance
D. CARE & MAINTENANCE 4. Emptying the dust container. a) Release the handle flat on the floor. b) Using one hand to pull the locker, and take off the dust container with the other hand. c) Push the button to remove dust inside dust container. Page : 15... - Page 16 D. CARE & MAINTENANCE 5. Cleaning the filters - do this once a month. a) Push the button to remove motor unit. b) Take the HEPA filter and steel filter out. c) Wash under running water. Squeeze out any excess water and leave the HEPA filter to dry thoroughly in a warm and well-ventilated place.
-
Page 17: Troubleshooting
E. TROUBLESHOOTING Problem Solutions Not cleaning well 1. Empty the dust container. 2. Check dust container is correctly fitted. 3. Check the filter is correctly fitted. 4. Clean the filter. Stop or do not function 1. Charge battery. 2. Clear debris from brush bar. Battery will not charge 1. -
Page 18: Specifications
F. SPECIFICATIONS Model CVC-1407-HC Battery 22.2V / 2200mAh Charging period 4 hours Battery charge output 26.5V / 500mA Rated Power 120W Page : 18... - Page 19 Page : 19...
- Page 20 Page : 20...
- Page 21 perforation line Page : 21...
- Page 22 perforation line Page : 22...
- Page 23 Page : 23...
- Page 24 CVC-1407-HC Page : 24...
