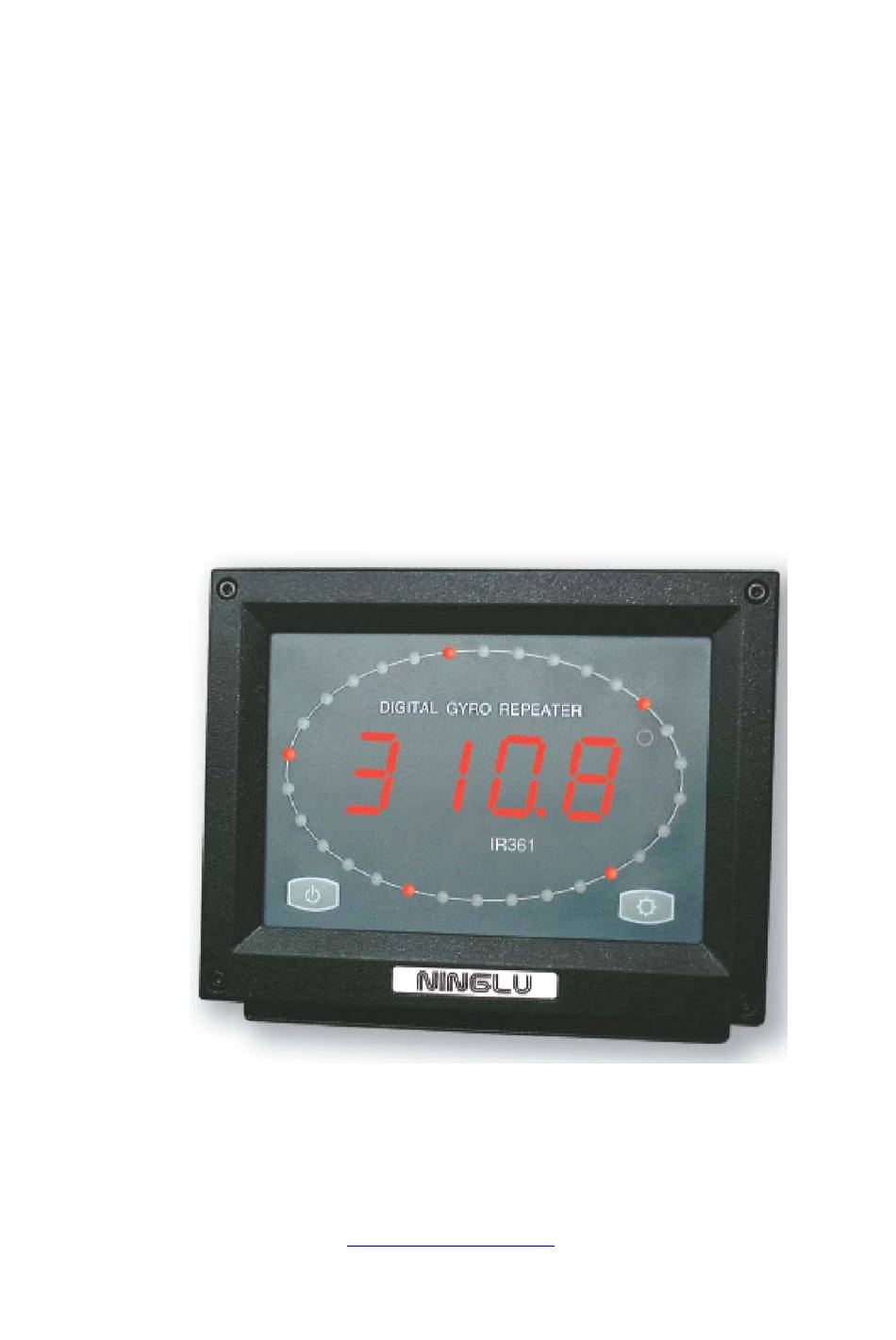

Digital Gyro Repeater
Operating &
Installation Manual
Edition IR361EN 110101
Nanjing Ninglu Technology Co., Ltd.
105-2 Da Ming Road Nanjing City, China
NINGLU TECHNOLOGY CO., LTD.
Fax: +86-25-52614640
Phone: 86-25-52614640
URL:
http://www.sounder.com.cn
IR361
Advertisement
Table of Contents
Related Manuals for Ninglu IR361
Summary of Contents for Ninglu IR361
- Page 1 NINGLU IR361 Digital Gyro Repeater Operating & Installation Manual Edition IR361EN 110101 Nanjing Ninglu Technology Co., Ltd. 105-2 Da Ming Road Nanjing City, China Phone: 86-25-52614640 NINGLU TECHNOLOGY CO., LTD. Fax: +86-25-52614640 URL: http://www.sounder.com.cn...
- Page 2 INTRODUCTION IR361 is a digital gyro repeater that displays the heading angle in the LED segment display and indicates the rate of turn (ROT) with 30 dual-color surrounding LEDs. The IR361 will display heading angle given by the HDT message from a gyro or other equipment (NMEA 0183) and indicate ROT by calculating change in heading based on the HDT input and the time between each message.
-
Page 3: Diagnostic Information
Compass safe distance: 85cm DIAGNOSTIC INFORMATION 1. The LED segment will show “- - - -“, ROT lights go out, when IR361 has been with no signal for more than 15 seconds. INSTALLATION The unit can be mounted in panel on table, wall or ceiling 1.
