Installation

10 - 1 Suspension bolt pitch position

FXNQ-MA

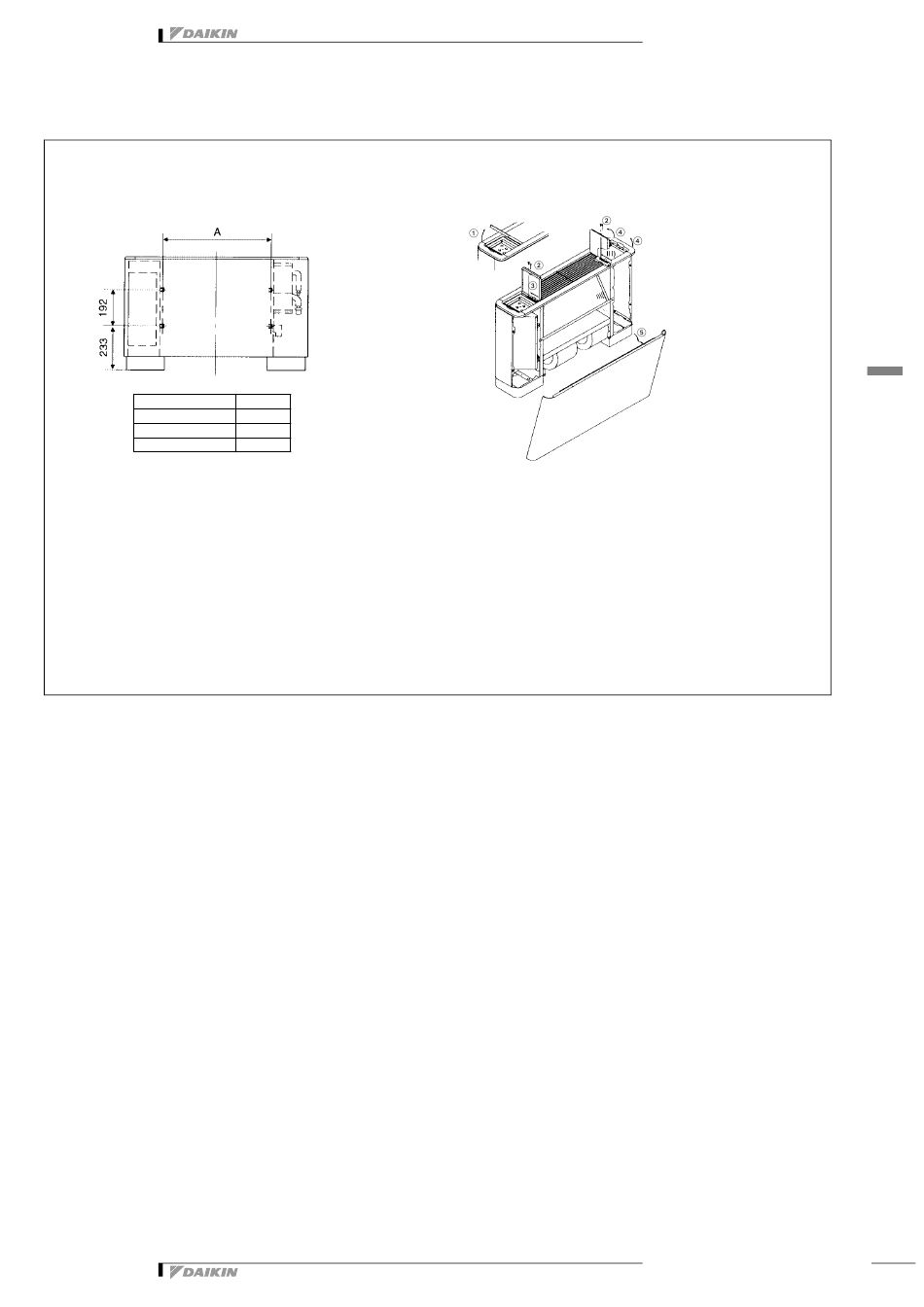

• Positioning of holes for fastening to the wall
Model
FXNQ20,25MA
FXNQ32,40MA
FXNQ50,63MA
• Indoor Units • Concealed Floor Standing Unit • FXNQ-MAVE
A
590
730
1,010
• VRV Systems • Indoor Units
• How to open/close the front panel
1 Open the lid of control panel (both left and right).
2 Remove screws (both left and right).
3 Push the knobs (both left and right) to the rear.
4 Lift the front of the top plate.
5 Lower the front panel towards the front of the unit.
6 To close, perform the procedure in opposite order.
Pull towards the front until the knob snaps in place.
