Features:
Control of outputs over the internet
using smartphone application
Control of outputs by free phone calls
using caller identification
5 different control modes
4 NO/NC inputs, 2 NO relay outputs
50 configurable access templates
Configurable holidays
Automatic timed controls
20 and 1000 user variant
Reports the status of the 4 contact
inputs by e-mail, SMS or GSM call

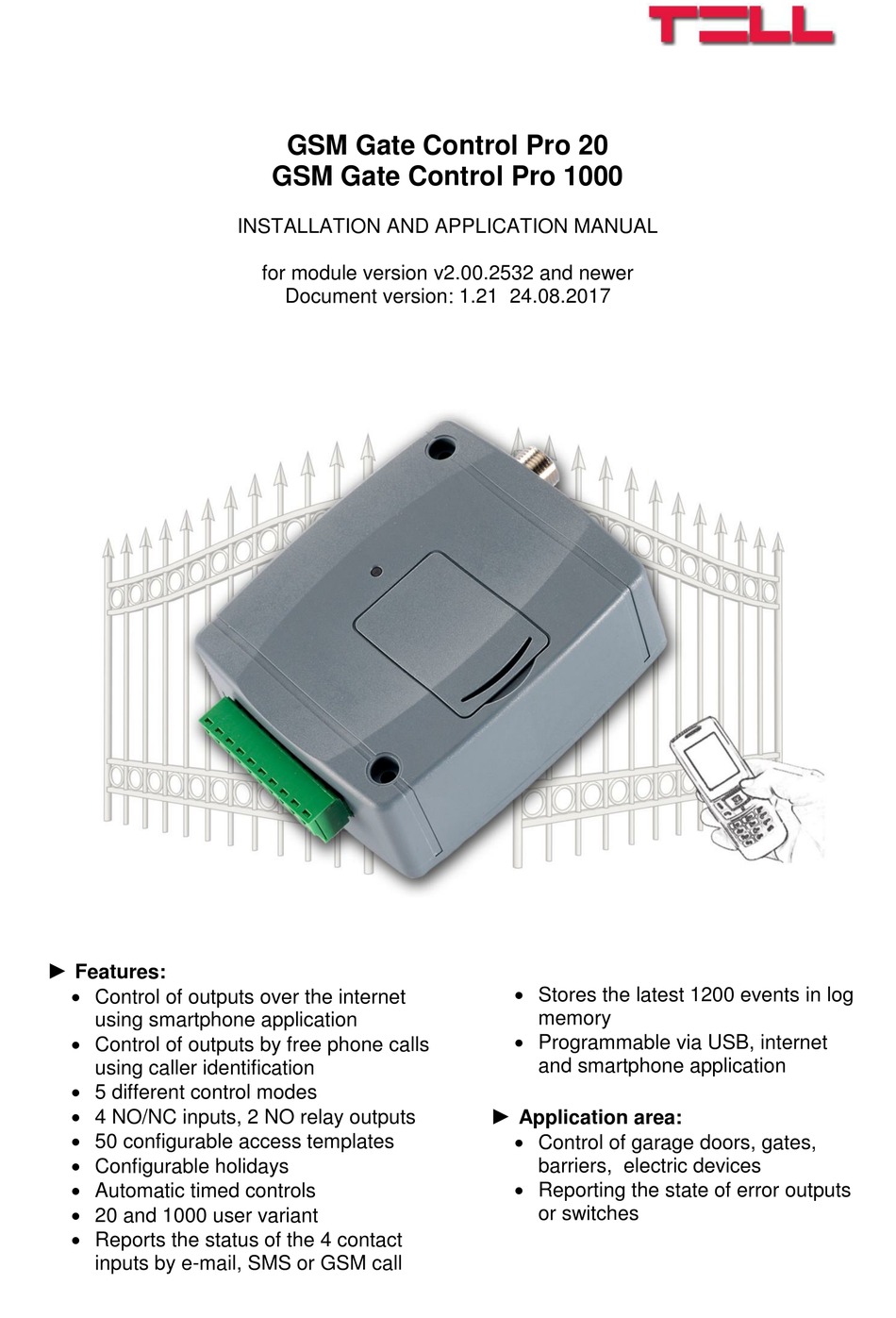

GSM Gate Control Pro 20
GSM Gate Control Pro 1000
INSTALLATION AND APPLICATION MANUAL
for module version v2.00.2532 and newer
Document version: 1.21 24.08.2017
Stores the latest 1200 events in log
memory
Programmable via USB, internet
and smartphone application
►
Application area:
Control of garage doors, gates,
barriers, electric devices
Reporting the state of error outputs
or switches
Advertisement
Table of Contents
Related Manuals for tell GSM Gate Control Pro 20
Summary of Contents for tell GSM Gate Control Pro 20
- Page 1 GSM Gate Control Pro 20 GSM Gate Control Pro 1000 INSTALLATION AND APPLICATION MANUAL for module version v2.00.2532 and newer Document version: 1.21 24.08.2017 ► Features: Stores the latest 1200 events in log Control of outputs over the internet...
-
Page 2: Table Of Contents
Table of contents 1 General operation of the GSM Gate Control Pro ..............3 1.1 Data traffic ........................3 1.2 Operation of the contact inputs..................4 2 Processing of personal data ....................4 2.1 Responsibility of Manufacturer ..................5 3 Connecting the terminals and putting into operation .............. 5 3.1 Under Voltage Lock Out (UVLO) function .............. -
Page 3: General Operation Of The Gsm Gate Control Pro
The latest version of the product’s programming software and manuals are available on the manufacturer’s website at https://tell.hu/en/products/gsm-automation/gsm-gate-control-pro 1 General operation of the GSM Gate Control Pro The GSM Gate Control Pro module was basically designed for control of electric gates and barriers, however it can be used to control other devices as well. -
Page 4: Operation Of The Contact Inputs
1.2 Operation of the contact inputs The module has 4 configurable NO/NC contact inputs. By activating the inputs, notifications can be sent by SMS or call up to 4 phone numbers, or by e-mail, according to the settings. This function can be used for e.g. sending notification by SMS or email about the state of tamper or other switches, control panel error or other outputs. -
Page 5: Responsibility Of Manufacturer
2.1 Responsibility of Manufacturer The Manufacturer takes any kind of responsibility for and in connection with the functionality and use of the system – including proper use of hardware and software – according to the relevant provisions of law. The Manufacturer takes no responsibility for damage resulting from: the user having lost the device for controlling the system, or this device or his personal data mentioned above having been stolen, thus enabling an unauthorized person to... -
Page 6: Input Wiring
3.2 Input wiring For the inputs, the normally closed or normally open dry contact should be connected between the given input (IN1…IN4) and the negative of the power input (V-). If a normally open activating dry contact is used, choose the NO (normally open) option at the given input’s settings. -
Page 7: Wiring Diagram
3.4.1 Wiring diagram System terminal inputs and outputs: Supply voltage 9-30 VAC/DC (min. 500mA) Supply voltage negative (if DC) Dry contact input 1 Dry contact input 2 Dry contact input 3 Dry contact input 4 OUT1 Relay output 1 (normally open dry contact) OUT2 Relay output 2 (normally open dry contact) Wiring example for control modes 1, 2, 4, and 5: The example shows wiring of inputs... -
Page 8: Sim Card Socket
3.5 SIM card socket The SIM card socket can be accessed by removing the cover of the aperture found on the module enclosure. The cover can be removed by pressing it with your fingernail towards the LED at the end where the gap is and then pulling it outwards. Insert the SIM card in the socket. -
Page 9: Putting Into Operation
3.8 Putting into operation Disable voicemail and notification in SMS about missed calls on the SIM card installed into the module. The module can handle the SIM card’s PIN code. If you wish to use the PIN code management, configure the SIM card’s PIN code in the programming software at the “Settings”... -
Page 10: Configuring The Gate Control Pro Module
The latest version of the programming software can be downloaded from the manufacturer’s website (https://tell.hu/en/products/gsm-automation/gsm-gate-control-pro). 4.1 The user interface and configuration options of the software: The user interface language can be selected from the language selection drop-down menu placed at the bottom left part of the program window. -
Page 11: Configuring By Computer Via Usb
4.2 Configuring by computer via USB To start programming the Gate Control Pro module, follow the instructions below: Open the Gate Control Pro programming software. Power up the Gate Control Pro module and connect it to the computer using a USB A-B cable. -
Page 12: Adding A Client Identifier For The Programming Software
4.3.1 Adding a client identifier for the programming software Open the Gate Control Pro programming software. Power up the Gate Control Pro module and connect it to the computer via USB. If you wish to assign the client identifier to a new user, add the new user in the “Users” menu, write the changes to the module, then edit the given user’s settings again. -
Page 13: Managing Sim Identifiers
4.3.2 Managing SIM identifiers For remote programming over the Internet it is necessary to provide the identifier (ICCID) of the SIM card installed into the Gate Control Pro module you wish to configure. To make remote programming of multiple Gate Control Pro devices easier, the software stores all entered SIM identifiers and makes it possible to select a formerly used identifier from the drop-down menu. -
Page 14: Steps Of Remote Programming
4.3.3 Steps of remote programming To start remote programming of the Gate Control Pro module, follow the instructions below: To establish the connection, go to the programming software’s “Connection” menu, select the Gate Control Pro module you wish to configure from the “SIM identifier” drop-down menu, or enter the identifier of the SIM card installed into the module, enter the server IP address (54.75.242.103), the port number (2016), your user name registered in the Gate Control Pro module and the remote programming (client) -
Page 15: How To Use The Gate Control Pro Programming Software
5 How to use the Gate Control Pro programming software 5.1 Module status The module status menu provides information on the actual system status. SIM identifier: the identifier of the SIM card inserted into the Gate Control Pro module Name: the module’s type Hardware version: the module’s hardware version Firmware version: a module’s firmware version System time: the system date and time... -
Page 16: Event Log
5.2 Event log The event log includes control events and input events recorded during operation. Available options: : read event log from the module : export the read event log to file in CSV format Reading the event log from the module: When reading the event log, you can specify by filtering options the period and event type you wish to download. -
Page 17: Settings
5.3 Settings In the “Settings” menu you can configure the parameters related to the general operation of the Gate Control Pro module. Settings management: The settings can be saved to file and loaded from file using the appropriate function buttons. ... -
Page 18: Identification
System time synchronization: The system time should be synchronized only if connecting to the server is disabled, else the time is synchronized automatically from the server. To synchronize the time, click on the “Time synchronization” button. The software synchronizes the time to the PC system time, therefore please check before proceeding if the PC system time is correct. -
Page 19: Call Durations
Online mode: The system can be configured to connect to the internet online (continuously), or to connect only occasionally, when needed. For online connection continuous mobile internet connection is needed, which results in larger data traffic. If online mode is enabled, the following services will be available: - smartphone application - remote programming - remote firmware update,... -
Page 20: Outgoing E-Mail Account
Gate Control Pro product’s downloads. There are multiple methods to obtain the camera URLs. You can use the “ONVIF Detector” software made by the manufacturer (available on the manufacturer’s website: www.tell.hu), the “ONVIF Device Manager” software (http://sourceforge.net/projects/onvifdm), or the camera’s technical manual. -
Page 21: E-Mail Report
Example for modification of the stream URL, if using only one camera: Original URL: rtsp://192.168.1.240:554/cam/realmonitor?channel=1&subtype=0&unicast=true&proto=Onvif Modified URL in case of using static IP address: rtsp://WAN IP:554/cam/realmonitor?channel=1&subtype=0&unicast=true&proto=Onvif Modified URL in case of using static IP address and username/password: rtsp://username:password@WAN IP:554/cam/realmonitor?channel=1&subtype…. Modified URL in case of using domain name: rtsp://domain name:554/cam/realmonitor?channel=1&subtype=0&unicast=true&proto=Onvif Modified URL in case of using domain name and username/password: rtsp://username:password@domain name:554/cam/realmonitor?channel=1&subtype…. -
Page 22: Miscellaneous Settings
5.3.9 Miscellaneous settings Installer’s e-mail address: the system sends notifications about version updates to the e- mail address specified here. If you wish to use the e-mailing services of the system, it is necessary to configure the internet access and the outgoing e-mail account settings. SMS forwarding phone number: the system forwards the messages received by its SIM card to the phone number entered here (e.g. -
Page 23: Inputs And Outputs
5.4 Inputs and outputs Available options: : read the settings from the module : write the settings into the module : save the settings to file : load the settings from file 5.4.1 Inputs / Events By activating the inputs IN1…IN4 the system can send notifications by SMS or e-mail to the specified phone numbers or email addresses. - Page 24 Phone number: the number to which the system sends SMS and/or initiates a call upon activating the given input. It is recommended to enter the phone number in international format (like: +3630…). Notification type: the way of notifying the given phone number when the input is activated. This option is not available if “Online mode”...
-
Page 25: Control Modes
Opening timeout: enter the time interval in seconds, within which the gate should open, starting from the beginning of the opening control. If the gate fails to open within the specified interval (the position limit switch does not change state), the module sends opening error notification by Push notification and/or SMS, according to the settings. - Page 26 Control mode 2 OUT1=N.O. (normally open) OUT2=N.O. (normally open) A = OUT1 impulse length (seconds) => opening gate A B = OUT2 impulse length (seconds) => opening gate B Selective or simultaneous control of outputs OUT1 and OUT2 using caller identification and predefined user permissions.
- Page 27 Control mode 4 OUT1=N.O. (normally open) OUT2=N.O. (normally open) X = OUT1 impulse length (seconds) => gate opening Y = keeping the gate open (seconds) Z = OUT2 impulse length (seconds) => gate closing Starting a control process using caller identification. Outputs OUT1 and OUT2 provide opened contact by default.
-
Page 28: Customization
5.5 Customization You can change the default name of the event log and email message elements, and some of the available Push and SMS messages in the “Custom name” column of the spreadsheet. If you change the names, the given elements will be shown with the custom names in the e-mail reports and event log. -
Page 29: Admin Functions
5.6 Admin functions The admin functions can be used to fully erase the access templates, automatic timed control templates, client identifiers, users and holidays, as well as to configure the global rules. : reading the settings from the module. To read the actual settings from the module, click on the “Read”... -
Page 30: Global Rule
5.6.1 Global rule The global rule can be used to override the entry periods defined by configured access templates. Type: None: the entry permissions are considered according to the configured access templates, holidays and user custom rules. Allow users: access granting for control expressly for the registered users only, by ignoring the configured access templates, holidays and user custom rules. -
Page 31: Automatic Timed Control
5.7 Automatic timed control The automatic timed control function is used to control the outputs automatically at configurable time of day. The time of control can be configured in timing templates similarly to the access templates. This function is useful when it is needed to open the gate automatically at certain times of day and keep it open for given periods due to e.g. - Page 32 If the gate’s position limit switch is connected to the module, it monitors if the gate opens and closes at the configured times of day. If opening or closing fails, the module sends notification about the position limit error by Push notification and/or SMS, according to the settings, and at control modes 3, 4 and 5 it repeats the opening or closing impulse by 1 minute, i.e.
-
Page 33: Access Templates
5.8 Access templates The entry period can be configured by access templates. Any of the created access templates, even more of them can be assigned separately to any user, thus the periods (even more periods a day) can be defined for each user when they can access and control the system. -
Page 34: Users
Creating an access template: - click on the “New” button - enter the template name. The template name should not exceed 15 characters. Attention! The following characters should not be used: ~ ^ < > = ’ ” , | $ & - configure the control periods for each day of the week and holiday - click on the “Write”... - Page 35 Available options: : read users from the module : add new user : edit the selected user : delete the selected user : export the users to CSV file : import users from CSV file To add a user click on the “New” button, enter the required data and configure the settings, then click on the “Write”...
- Page 36 Authorizer: here the identifier of the admin or super admin is shown, who has registered the new user. This is filled in automatically by the system. If the new user has been added using the programming software, then “Software” will be shown here. Callback requested: the system is able to confirm a successful control call by callback.
- Page 37 Output control permissions: OUT1, OUT2: enable/disable permission for selective control of outputs in the smartphone applications of the given user. It can be configured for each user separately, which output to be controllable from the smartphone applications (output OUT1, OUT2 or both). This option is only available in control modes 1 and 2. Output control by call: OUT1, OUT2: enable/disable selective control of outputs by call.
- Page 38 The client identifiers are automatically registered in the system upon the approval by the administrator of the assignment requests sent by users through the smartphone application. The client identifier is registered to the username specified by the user who sends the assignment request.
-
Page 39: Holidays
5.10 Holidays You can select the holidays even for multiple years in advance by double clicking on the dates in the calendar. The selected dates will be highlighted with red background color. To unselect a date, double click again on it. For the selected holidays entry will be permitted within the period configured in the “Holiday”... -
Page 40: Replacing The Sim Card
6 Replacing the SIM card If the “Online mode” is enabled in the settings, the Gate Control Pro module is identified in the system by the identification number of the SIM installed into the module, therefore replacing the SIM card affects the operation of the system. If it is necessary to replace the SIM card for any reason, please follow the instructions below: ...
