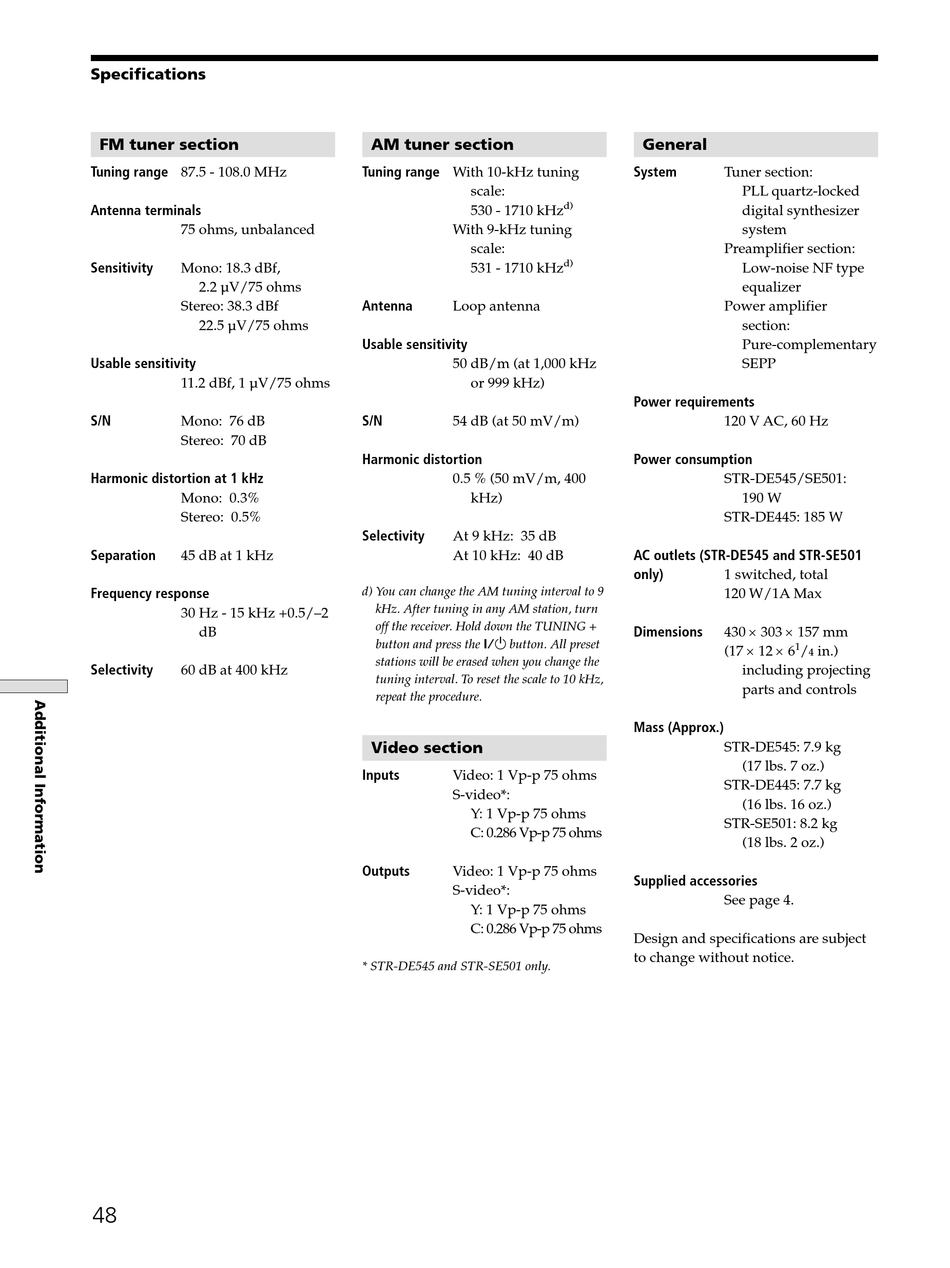

Specifications
FM tuner section
Tuning range 87.5 - 108.0 MHz
Antenna terminals
75 ohms, unbalanced
Sensitivity
Mono: 18.3 dBf,
2.2 µV/75 ohms
Stereo: 38.3 dBf
22.5 µV/75 ohms
Usable sensitivity
11.2 dBf, 1 µV/75 ohms
S/N Mono: 76 dB
Stereo: 70 dB
Harmonic distortion at 1 kHz
Mono: 0.3%
Stereo: 0.5%
Separation 45 dB at 1 kHz
Frequency response
30 Hz - 15 kHz +0.5/–2
dB
Selectivity
60 dB at 400 kHz
48
AM tuner section
Tuning range With 10-kHz tuning
scale:
530 - 1710 kHz
With 9-kHz tuning
scale:
531 - 1710 kHz
Antenna Loop antenna
Usable sensitivity
50 dB/m (at 1,000 kHz
or 999 kHz)
S/N 54 dB (at 50 mV/m)
Harmonic distortion
0.5 % (50 mV/m, 400
kHz)
Selectivity At 9 kHz: 35 dB
At 10 kHz: 40 dB
d) You can change the AM tuning interval to 9
kHz. After tuning in any AM station, turn
off the receiver. Hold down the TUNING +
button and press the ?/1 button. All preset
stations will be erased when you change the
tuning interval. To reset the scale to 10 kHz,
repeat the procedure.
Video section
Inputs Video: 1 Vp-p 75 ohms
S-video*:
Y: 1 Vp-p 75 ohms
C: 0.286 Vp-p 75 ohms
Outputs
Video: 1 Vp-p 75 ohms
S-video*:
Y: 1 Vp-p 75 ohms
C: 0.286 Vp-p 75 ohms
* STR-DE545 and STR-SE501 only.
General
System
Tuner section:
PLL quartz-locked
d)
digital synthesizer
system
Preamplifier section:
d)
Low-noise NF type
equalizer
Power amplifier
section:
Pure-complementary
SEPP
Power requirements
120 V AC, 60 Hz
Power consumption
STR-DE545/SE501:
190 W
STR-DE445: 185 W
AC outlets (STR-DE545 and STR-SE501
only) 1 switched, total
120 W/1A Max
430 × 303 × 157 mm
Dimensions
(17 × 12 × 6
including projecting
parts and controls
Mass (Approx.)
STR-DE545: 7.9 kg
(17 lbs. 7 oz.)
STR-DE445: 7.7 kg
(16 lbs. 16 oz.)
STR-SE501: 8.2 kg
(18 lbs. 2 oz.)
Supplied accessories
See page 4.
Design and specifications are subject
to change without notice.
