Overview

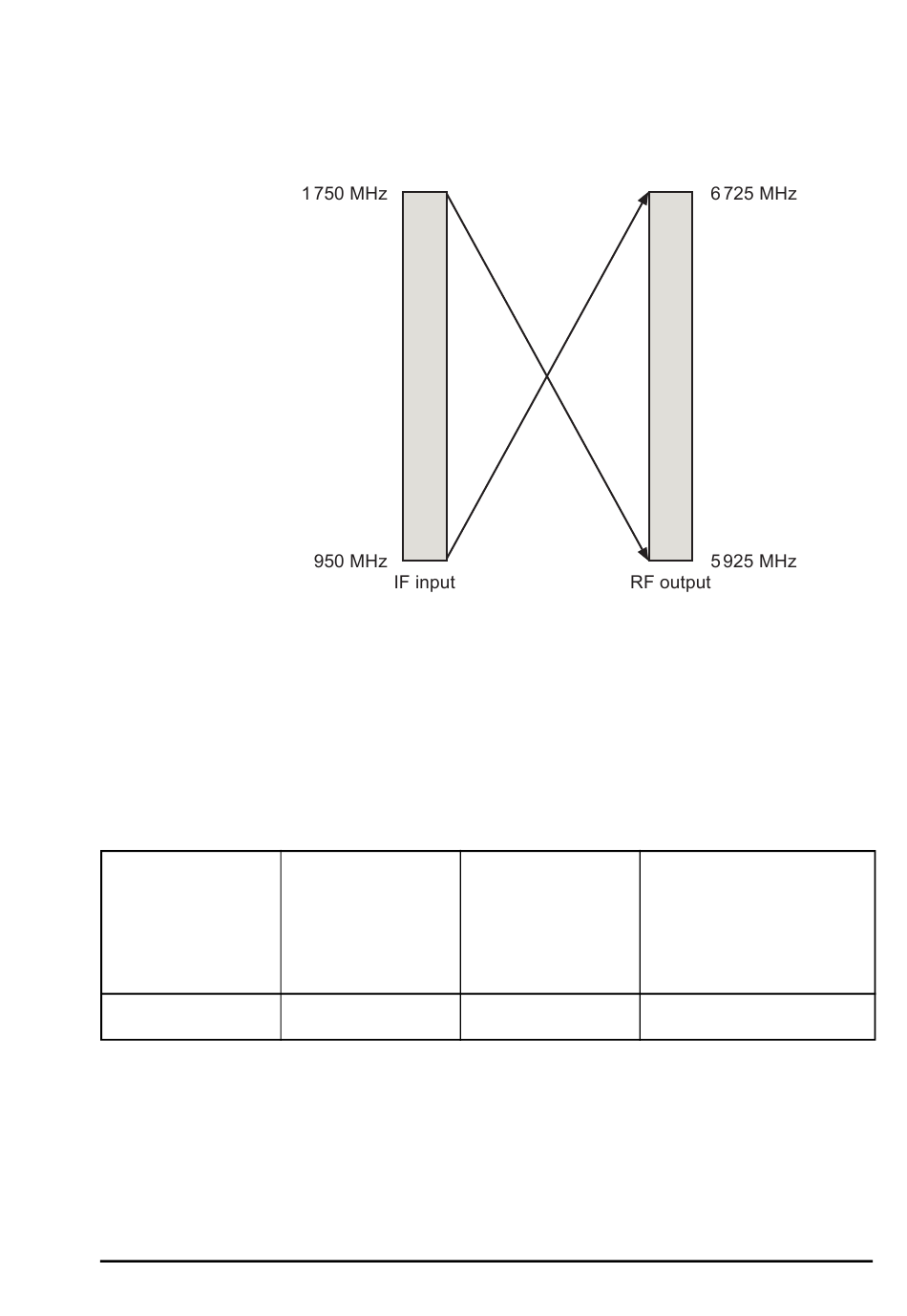

Figure 6: C-Band frequency conversion plan at an LO
frequency of 7675 MHz
Ku-Band
Figure 7 and Figure 8 show the frequency conversion plans
for each LO frequency of the Ku-Band BUCs.
Table 4: Frequency ranges for Ku-Band BUCs
(Standard)
LO frequency Tuning range of Output See...
(MHz) L-Band frequency
(MHz) (MHz)
f f f
LO IF RF
15450 950–1450 14000–14500 Figure 7 on page 12
