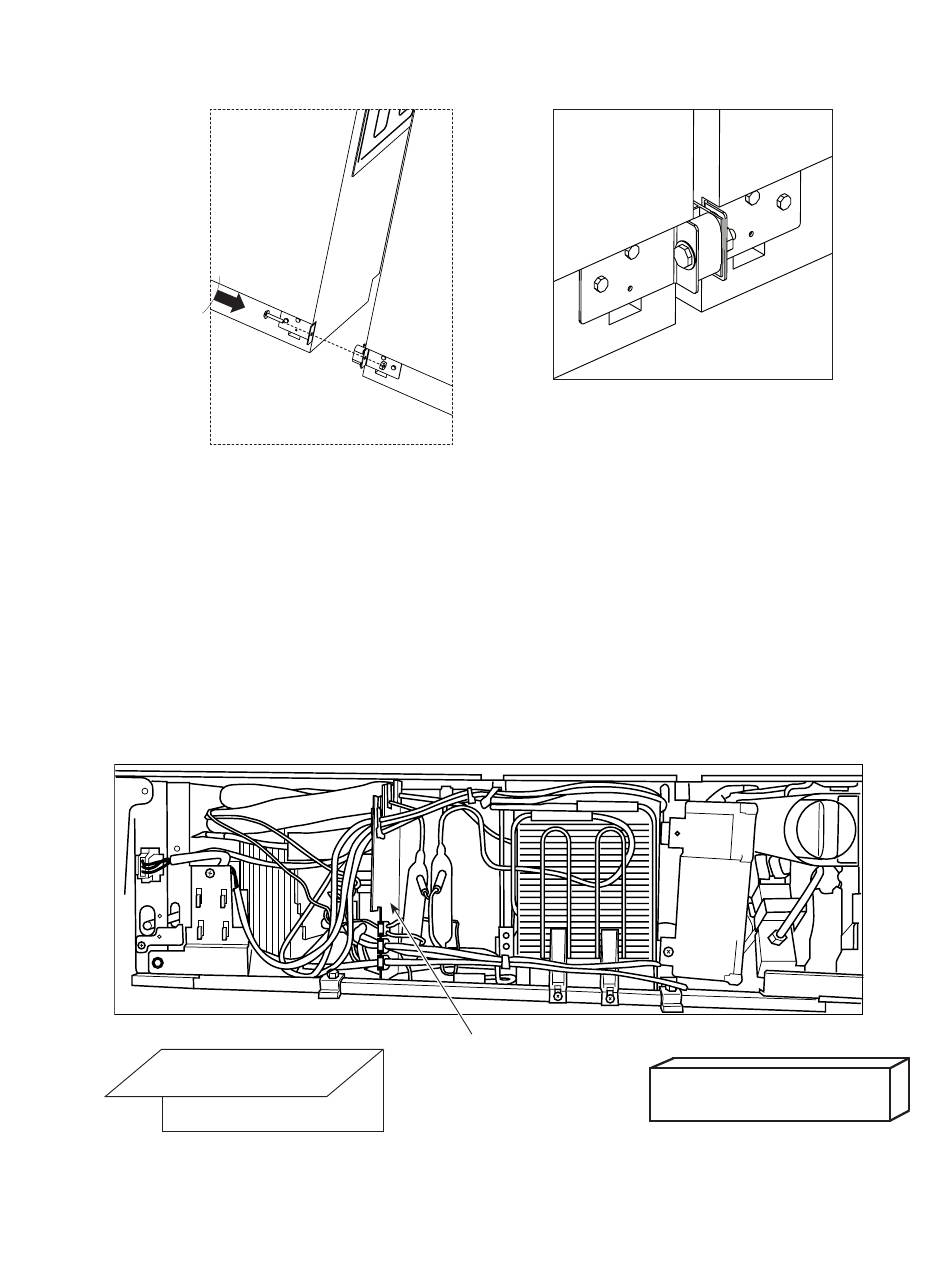

6. Attach joining brackets to rear of reach unit, using screws provided with kit, add spacer between brackets. Join
with bolt, washers and nut. Do not cut lower banding strap during this step.
7. Refer to Installation Instructions 31-46542 included with the units. Connect water lines to units, plug units into
electrical outlets, push units into cabinet enclosure and fasten to anti-tip brackets.
8. After fastening the anti-tip brackets to each unit, cut lower banding straps on Units 1 and 2 and remove foam
base pad from front of units.
9. Next, the heater will be joined to the wiring of Unit 2. The heater is a low voltage, DC type heater, so this step
consists of adding a transformer between line voltage and the heater, and the steps needed to mount and wire
the transformer.
Remove toekick and air vent cover from front of Unit 2 by removing four Phillips head screws.
Vent Cover
Metal Plate
4
Toekick
