Summary of Contents for Watermill BP65S

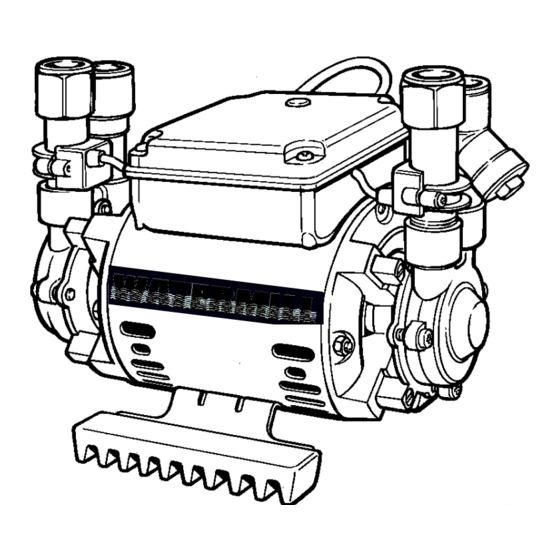

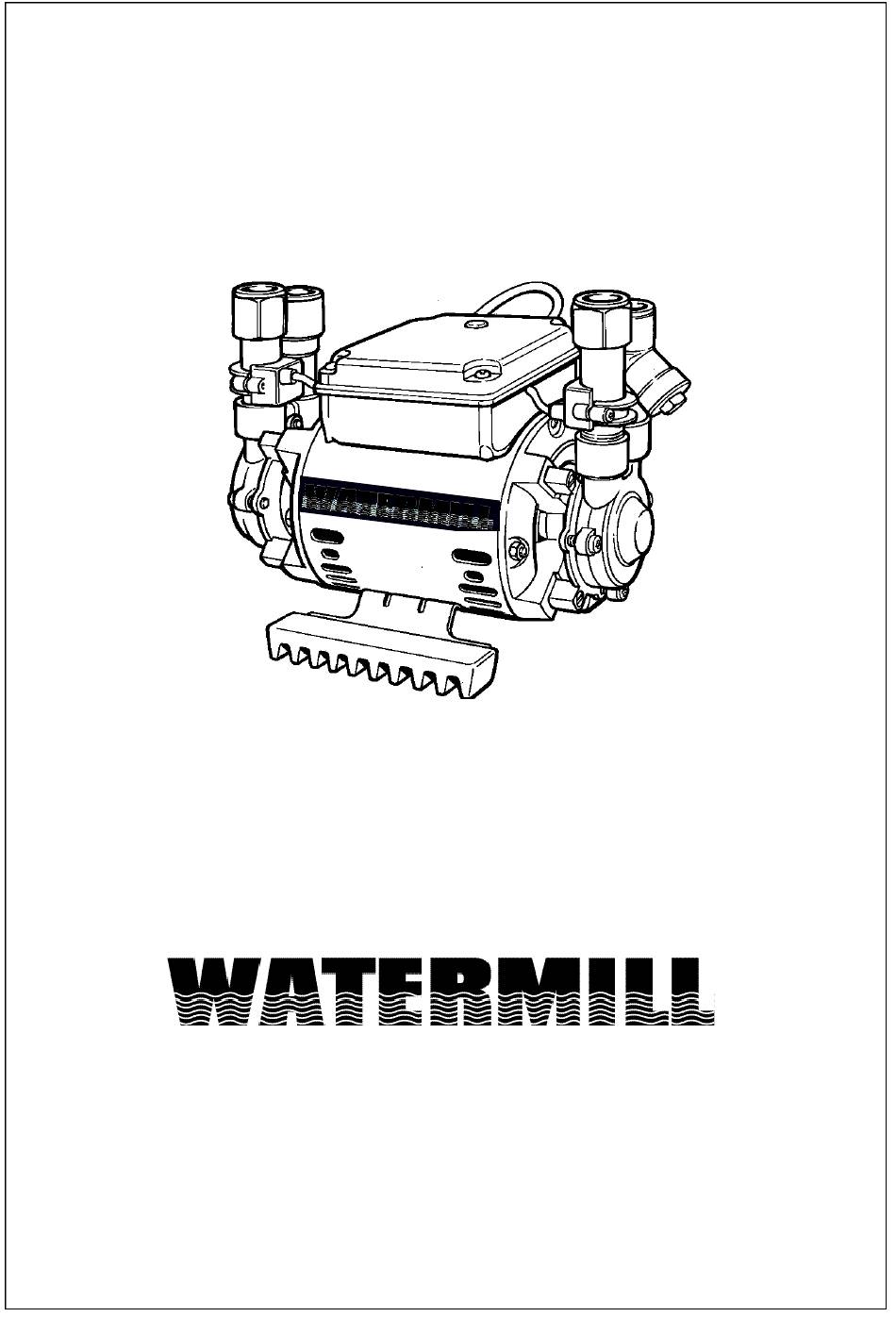

- Page 1 HEAVY DUTY BRASS SHOWER PUMPS YOUR GUARANTEE IS AT RISK IF PUMP NOT INSTALLED CORRECTLY. SEE SECTION 2 IMPORTANT INSTRUCTIONS Performance Shower Products SERVICE HELPLINE TEL: 01883 730339...
-
Page 2: Important Instructions
1. GENERAL Your Watermill Shower Pump has been designed, manufactured and carefully tested, in England. If correctly installed and not misused, it will give many years of reliable service. To ensure satisfactory operation, we ask that you read the instructions before commencing installation. -
Page 3: Positioning Pump
Disconnecting hose. To disconnect “push fit” hose, firmly push down white retaining ring, whilst pulling out the hose. NO SOLDER FLUX. Do not allow any solder flux to come into contact with any of the plastic parts of the pump especially the “push fit” retaining rings. Do not let the pump run dry. -
Page 4: Hot Water Cylinder Connections
To enable the pump to operate it must be a Negative Head pump from the Watermill Automatic Negative Head range. Note. If the pump is positioned above the outlet from the hot water cylinder; ensure the pipework to the pump from the cylinder has a downward loop. -
Page 5: Cold Water Supply
The flexible hoses supplied with the pump, or authorised replacements from Watermill, must be used for connecting this pump to the pipework. Use of these hoses will ensure strain and vibration-free watertight connections. -
Page 6: Electrical Connections
The cable should be 3 core 0.75mm . H05V V-F. The pump connection end should be made as the diagram below. NB. The power cord is available complete from Watermill Products. Part number WS137. To fit: HO5 V-F 0.75mm BLACK Disconnect the power supply. -
Page 7: Before Using
Tighten the cable gland. Ensure the cable is secure within the gland. Replace the terminal box. 8. BEFORE USING WARNING - Do not run pump dry. Purge water thoroughly through system before switching on pump electrical supply. DO NOT TURN ON THE ELECTRICITY SUPPLY 1. -
Page 8: Technical Data
The sound pressure level 1m from the pump is less than 70dbA. SERVICE HELPLINE Tel: (01883) 730339 WATERMILL PRODUCTS LTD WATERMILL HOUSE, FAIRVIEW INDUSTRIAL ESTATE, HOLLAND ROAD, HURST GREEN, OXTED, SURREY, ENGLAND RH8 9BD TEL: 01883 715425 FAX: 01883 716422 e-mail: info@watermillshowers.co.uk website: www.watermillshowers.co.uk... - Page 9 WATERMILL PRODUCTS LTD GUARANTEE JANUARY 2004 Watermill Products Ltd. guarantee the parts and workmanship of this product for a period of two years from the date of initial purchase, provided that: The product is installed and operated in accordance with our instructions and has not been damaged or abused.
- Page 10 Site visits to products outside the terms of this guarantee will be on a chargeable basis for parts and labour and must be paid for at the time of the site visit. Affix Stamp Here Watermill Products Limited Watermill House Fairview Industrial Estate Holland Road Hurst Green Oxted...
