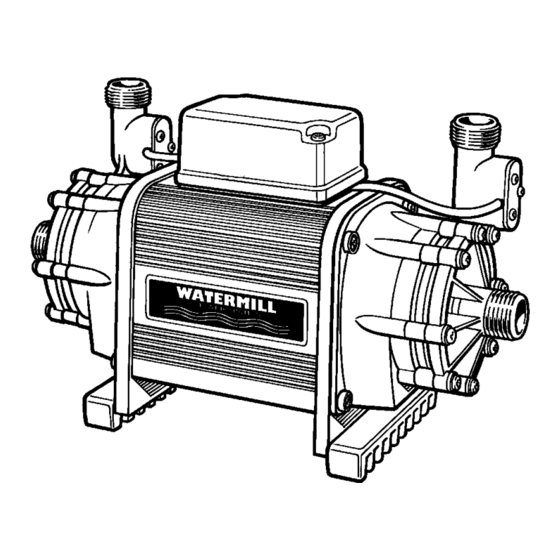

Watermill PC25DLV Installation Instructions Manual

Watermill PC25DLV Installation Instructions Manual

Low voltage shower pumps

Advertisement

INSTALLATION INSTRUCTIONS

LOW VOLTAGE SHOWER PUMPS
Models PC25DLV PC50DLV
PC55SLV PC70DLV ANHPC60DLV
Performance Shower Products
CUSTOMER SERVICE HELPLINE:
01883 730339

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PC25DLV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Watermill PC25DLV

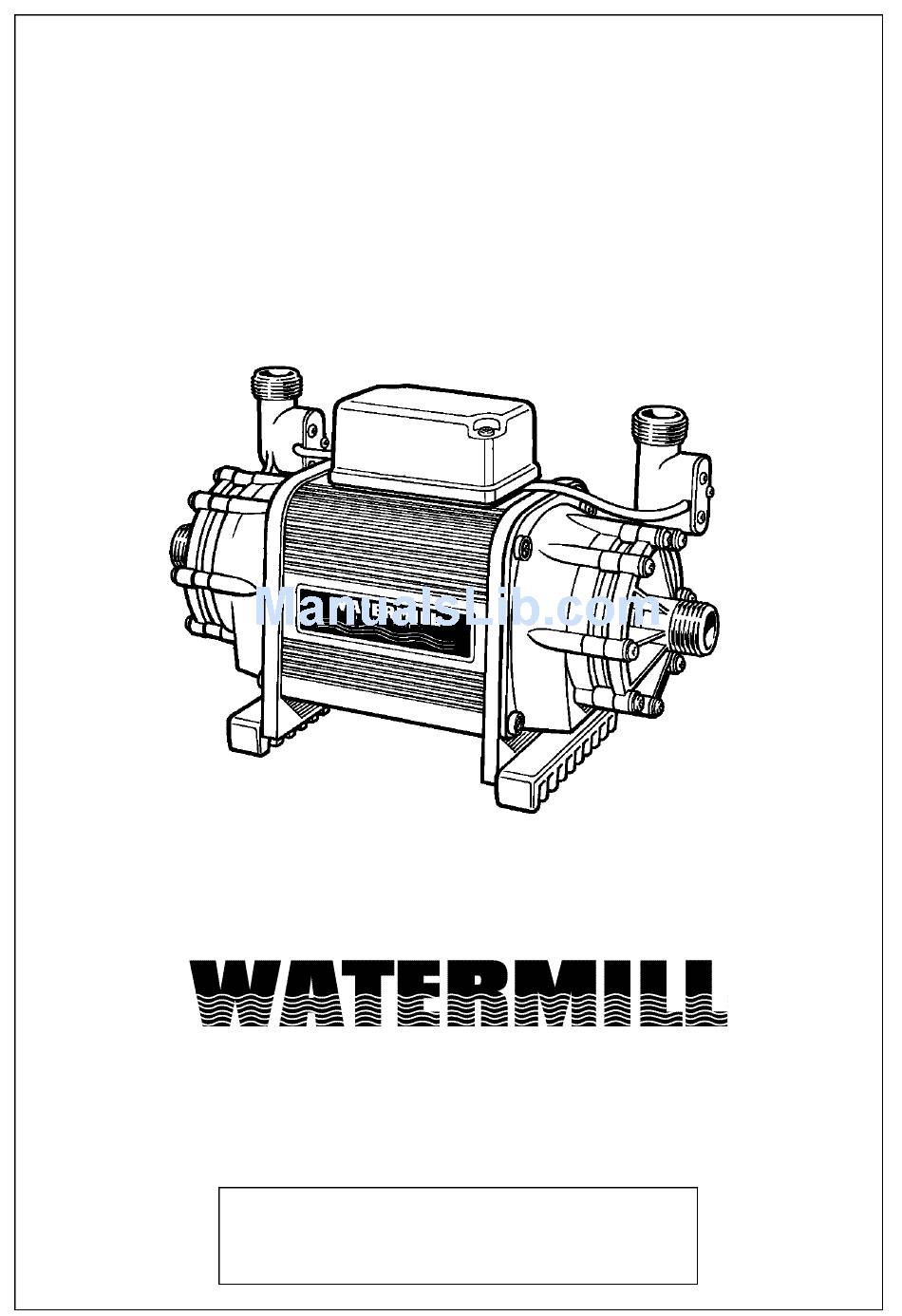

  • Page 1: Installation Instructions

    INSTALLATION INSTRUCTIONS LOW VOLTAGE SHOWER PUMPS Models PC25DLV PC50DLV PC55SLV PC70DLV ANHPC60DLV Performance Shower Products CUSTOMER SERVICE HELPLINE: 01883 730339...
  • Page 2: Table Of Contents

    CONTENTS PLEASE READ THESE INSTRUCTIONS CAREFULLY: This booklet covers all models in the range; ensure you follow the appropriate sections. PAGE GENERAL IMPORTANT INSTRUCTIONS POSITIONING PUMP HOT WATER CYLINDER CONNECTIONS COLD WATER SUPPLY CONNECTING PUMP ELECTRICAL CONNECTIONS BEFORE USING SERVICING FAULT FINDING INSTALLATION CHECK LIST TECHNICAL DATA...
  • Page 3: General

    1. GENERAL Your Watermill Shower Pump has been designed, manufactured and carefully tested in England. If correctly installed and not misused, it will give many years of reliable service. To ensure satisfactory operation, we ask that you read the instructions before commencing installation.
  • Page 4 If the water level of the cold water storage cistern is below the level of the shower outlet, this is called a negative head system. To enable the pump to operate it must be either an Automatic Negative Head pump from the Watermill ANH range or alternatively a Negative Head Kit needs to be used.
  • Page 5: Hot Water Cylinder Connections

    6. CONNECTING PUMP DO NOT USE ANY JOINTING COMPOUNDS OR TAPES Watermill pumps are supplied complete with matching flexible hoses. These hoses must be used to ensure strain and vibration free, watertight connections. NOTE: Do not connect metal (Brass/Iron) fittings directly onto pump inlets/outlets. The threads are 3/4”...
  • Page 6: Electrical Connections

    7. ELECTRICAL CONNECTIONS THIS IS A LOW VOLTAGE PUMP (USE TRANSFORMER SUPPLIED). DO NOT CONNECT PUMP DIRECTLY TO 240 VOLT. ELECTRICAL HAZARD WILL RESULT AND THE MOTOR WILL BE IRREPARABLY DAMAGED. The low voltage pump has added electrical protection via a safety isolating transformer Fig 1. For installations where the pump has to be placed in the bathroom (for example under the bath), we recommend that the safety isolating transformer is placed outside the bathroom or shower area.
  • Page 7: Fault Finding

    In this event turn off service valves, disconnect final connection to the pump, clean filter, reconnect, turn on water supply. The flexible pump hoses can, dependent on water temperature and mechanical stress, deteriorate with age. We recommend that all flexible hoses and connections are inspected at least every 6 months.
  • Page 8: Installation Check List

    GUARANTEE OF CORRECT INSTALLATION NOTE TO CUSTOMER Your Watermill Shower Pump will only work properly if it has been installed correctly. Ask your installer to complete the following check list, ensuring it is signed and dated. NOTE TO INSTALLER While you are installing this shower pump tick the following “important instructions” to confirm to both yourself and your customer this shower pump has been correctly installed.
  • Page 10: Technical Data

    The sound pressure level 1m from the pump is less than 70dbA For ANHPC60DLV See supplementary instructions WATERMILL PRODUCTS LTD WATERMILL HOUSE, FAIRVIEW INDUSTRIAL ESTATE, HOLLAND ROAD, HURST GREEN, OXTED, SURREY RH8 9BD CUSTOMER SERVICE HELPLINE TEL: 01883 730339 Email: info@watermillshowers.co.uk web: www.watermillshowers.co.uk...
  • Page 11 WATERMILL PRODUCTS LTD GUARANTEE JANUARY 2004 Watermill Products Ltd. guarantee the parts and workmanship of this product for a period of two years from the date of initial purchase, provided that: The product is installed and operated in accordance with our instructions and has not been damaged or abused.
  • Page 12: Guarantee

    Site visits to products outside the terms of this guarantee will be on a chargeable basis for parts and labour and must be paid for at the time of the site visit. Please Return to: Watermill Products Limited Watermill House Fairview Industrial Estate Holland Road...

This manual is also suitable for:

Anhpc60dlvPc55slvPc50dlvPc70dlv
