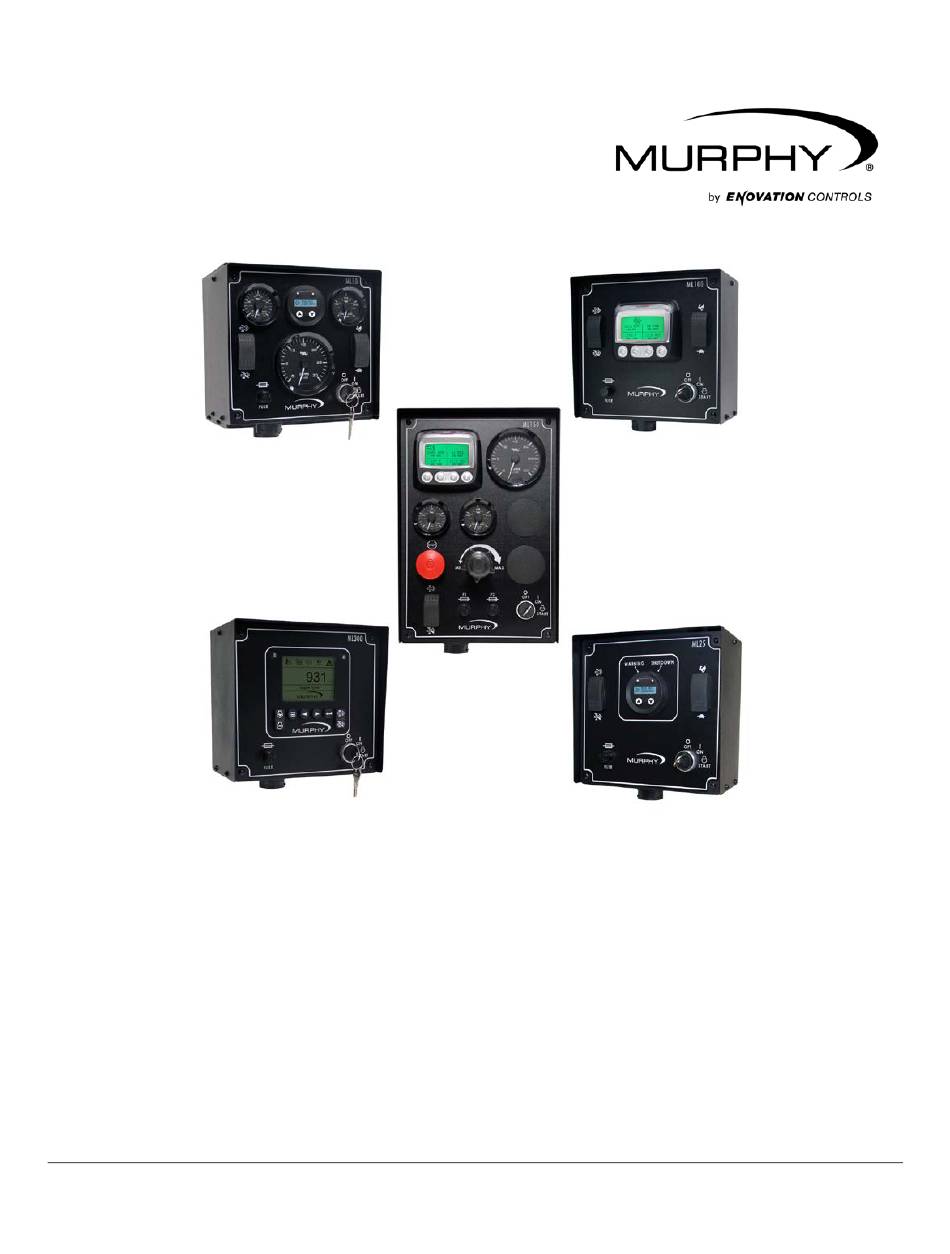

- Page 1 Murphy-Link Series Panels Models ML25, ML50, ML100 ML150, and ML300 Installation and Operations Manual 00-02-0842 2013-12-17 Section 30 To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com...
- Page 2 The latest version of this manual can be found at www.fwmurphy.com. BEFORE BEGINNING INSTALLATION OF THIS MURPHY PRODUCT: Read and follow all installation instructions. Please contact Enovation Controls immediately if you have any questions. To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com...
-
Page 3: Table Of Contents
Table of Contents ML25 Panel ............................1 ML50 Panel ............................3 ML100 Panel ............................5 ML150 Panel ............................7 ML300 Panel ............................9 To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com... - Page 4 (THIS PAGE INTENTIONALLY LEFT BLANK) To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com...
-
Page 5: Ml25 Panel
ML25 Panel The MurphyLink® Series ML25 Panel features the PowerView™ Model PV25 display. This J1939-compliant device provides electronic engine parameter data, is simple to install, and matches the PowerView line of rugged displays. The PV25 can be powered by 12 or 24 volt systems. - Page 6 Feature Description PowerView Model PV25 Display For additional information on the PV25 display, refer to “00-02-0839 - PV25-Installation and Operations” manual. Yellow Fault/Warning Lamp Indicates when a warning is present via CAN communications. Red Fault/Shutdown Lamp Indicates when a shutdown is present via CAN communications.
-
Page 7: Ml50 Panel
ML50 Panel The MurphyLink® Series ML50 Panels feature PVCAN gages and the PowerView™ Model PV25 display. This J1939-compliant device provides electronic engine parameter data, is simple to install, and matches the PowerView line of rugged displays. The PV25 can be powered by 12 or 24 volt systems. - Page 8 Feature Description PowerView Model PV25 Display For additional information on the PV25 display, refer to “00-02-0839 - PV25-Installation and Operations” manual. Yellow Fault/Warning Lamp Indicates when a warning is present via CAN communications. Red Fault/Shutdown Lamp Indicates when a shutdown is present via CAN communications.
-
Page 9: Ml100 Panel
ML100 Panel The MurphyLink® Series ML100 Panel features the PowerView Model PV101-C display, a key switch, and increment/decrement throttle. The PV101 Display is a multifunction tool that enables equipment operators to view many different engine or transmission parameters and service codes. Please refer to the documents included within the panel shipment for the correct panel layout and schematic. - Page 10 Feature Description PowerView Model PV101-C Display For additional information on the PV101-C display, refer to “00-02-0796 – PV101-C-v3.2 -Installation and Operations” manual. Yellow Fault/Warning Lamp Indicates when a warning is present via CAN communications. Red Fault/Shutdown Lamp Indicates when a shutdown is present via CAN communications.
-
Page 11: Ml150 Panel
ML150 Panel The MurphyLink® Series ML150 Panels include the PowerView PV101-C Display and the M-Link™ PowerView Analog Gages. The PV101 Display is a multifunction tool that enables equipment operators to view many different engine or transmission parameters and service codes. M-Link PowerView Analog Gages display critical engine data broadcast by an electronic engine: engine RPM, oil pressure, and coolant temperature. - Page 12 Feature Description PowerView Model PV101-C Display For additional information on the PV101-C display, refer to “00-02-0796 – PV101-C-v3.2 -Installation and Operations” manual. Yellow Fault/Warning Lamp Indicates when a warning is present via CAN communications. Red Fault/Shutdown Lamp Indicates when a shutdown is present via CAN communications.
-
Page 13: Ml300 Panel
ML300 Panel The MurphyLink® Series ML300 Panels include the new PowerView™ Model PV300 display that provides advanced monitoring of electronic engines designed to meet Tier 4/Euro Stage IV emissions requirements. The model PV300-P monitors multiple engine and machine parameters on an easy-to-read 3.8-inch (97 mm) QVGA monochrome LCD. Please refer to the documents included within the panel shipment for the correct panel layout and schematic. - Page 14 Feature Description PowerView Model PV300 Display For additional information on the PV300-P display, refer to “00-02-0834 – PV300-P -Installation and Operations” manual. Yellow Fault/Warning Lamp Indicates when a warning is present via CAN communications. Red Fault/Shutdown Lamp Indicates when a shutdown is present via CAN communications.
- Page 15 THIS PAGE INTENTIONALY LEFT BLANK Section 30 00-02-0842 2013-12-17 - 11 - To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com...
- Page 16 To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com...
