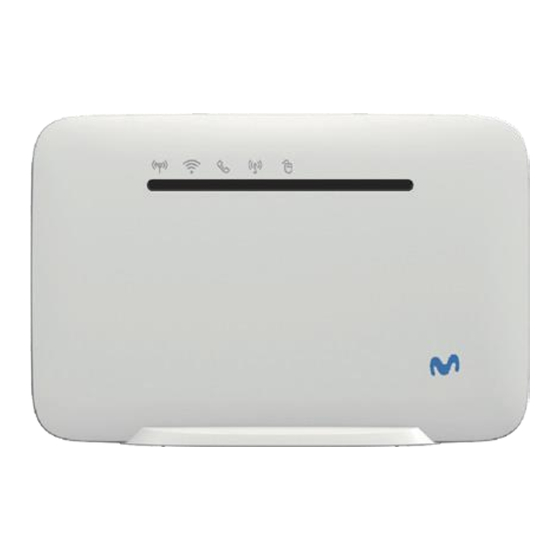

Know the product Front View Back View Components & Accessories: - LTE router (1 unit) - 220v power adapter (1 unit) - RJ45 cable (1 unit) - RJ11 cable (1 unit) - Quick user guide (1 unit) - User manual (1 unit) We recommend that you read this manual carefully before using it for the first time.
Interface Ethernet ports that connect PC or other equipment. Eth1 also ETH 1/ETH 2/ETH 3/ ETH 4 works as a WAN port to connect to a DSL or cable modem. TELEPHONE Standard RJ11 connection for telephone. RESET To restore the factory default settings. WIFI/ WPS BUTTON Enable / disable WiFi / WPS functionalities.
LED Indicators LED Definition LED Name Color Behavior Description Cyan Solid On Connected to 4G network Blue Solid On Connected to 3G network Green Solid On Connected to 2G network Blinking Connection failure Failure during POST(power-on self-test), or error due to Solid On hardware or firmware problems Blue...
Installation Note: Make sure the device is turned off and disconnected from the power source. Place your device at least 2 meters away from TV sets, radio and other electronic equipment to avoid electromagnetic interference. Go through the image to connect the device.
Page 8
Follow the steps below to install the device: 1) Insert the SIM card into the slot, as shown in the image. 2) Insert the power cable into the "power" connector and plug the power supply into the power supply port. 3) Connect the phone cord of your phone inside the "Phone"...
How to make a call 1. Lift the telephone handset and wait for dial tone. 2. Dial the number you want to call. 3. Wait 4 to 8 seconds for the call to connect automatically. How to answer a call When the phone rings, pick up the handset.
WiFi Network With this device you can generate a local WiFi network that allows other Wi-Fi devices to connect to exchange music, images and files among other functions. To access the Internet, you must contract a data plan from your telephone operator.
Page 12
How to connect to the Wi-Fi network. If you want to use Wi-Fi to connect other equipment (PC, Tablet, Smartphone, Smart TV), refer to the steps indicated below: 1) Turn on the equipment you want to connect and look for the available wireless networks.
Page 13
Establish a Wi-Fi connection via WPS function The device is compatible with the WPS function. Through this function, users can connect to the local network without knowing the password. 1- Verify that the device is turned on and the indicator is blue.
Trouble Shooting Problems related to voice service. Symptom Possible problem and solution The telephone line is noisy or Separate any electronic device that is too close to the phone distorted when you pick up the or device. phone The cable or telephone may be defective; change them. Place the phone in a location near a door or window where Signal reception is low it can receive a good signal...
Page 15
Problems related to the Internet service Symptom Possible problem and solution I do not have internet access -Verify that you have hired a data plan from your telephone operator. -Check the service indicators. -Make sure that the WIFI function is activated. I cannot establish the Wi-Fi -Update the list of networks and select the network that connection between the device...
Page 16
Advices & Warnings Use the device properly - Do not use the device in environments with dust, moisture or dirt. The use of the device in these types of environments can cause the device to malfunction. - Place the device on a stable surface. - Keep the device away from electronic items that generate high intensity magnetic or electric fields (for example, microwave or refrigerated ovens).
Page 17
- Keep the device in a place with good signal reception, for example: close to doors and / or windows. - If the power cord is damaged (for example: the wires are exposed or broken), or if the plug becomes loose, stop using the cable immediately. Cleaning and maintenance - Protect the device from shock, heat sources, direct sunlight and shock.
Page 18
Safety precaution - Before connecting and disconnecting the cables, make sure that the device is switched off. - This device has been designed to work in indoor environments and needs to be protected from: moisture, heat sources, direct sunlight, dusty environments and shock. - If the device generates unusual smoke, noise or odor, stop using it immediately.
Page 19
§ 15.19 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. §...
