Roto Eneo AF E601 Operation Instructions

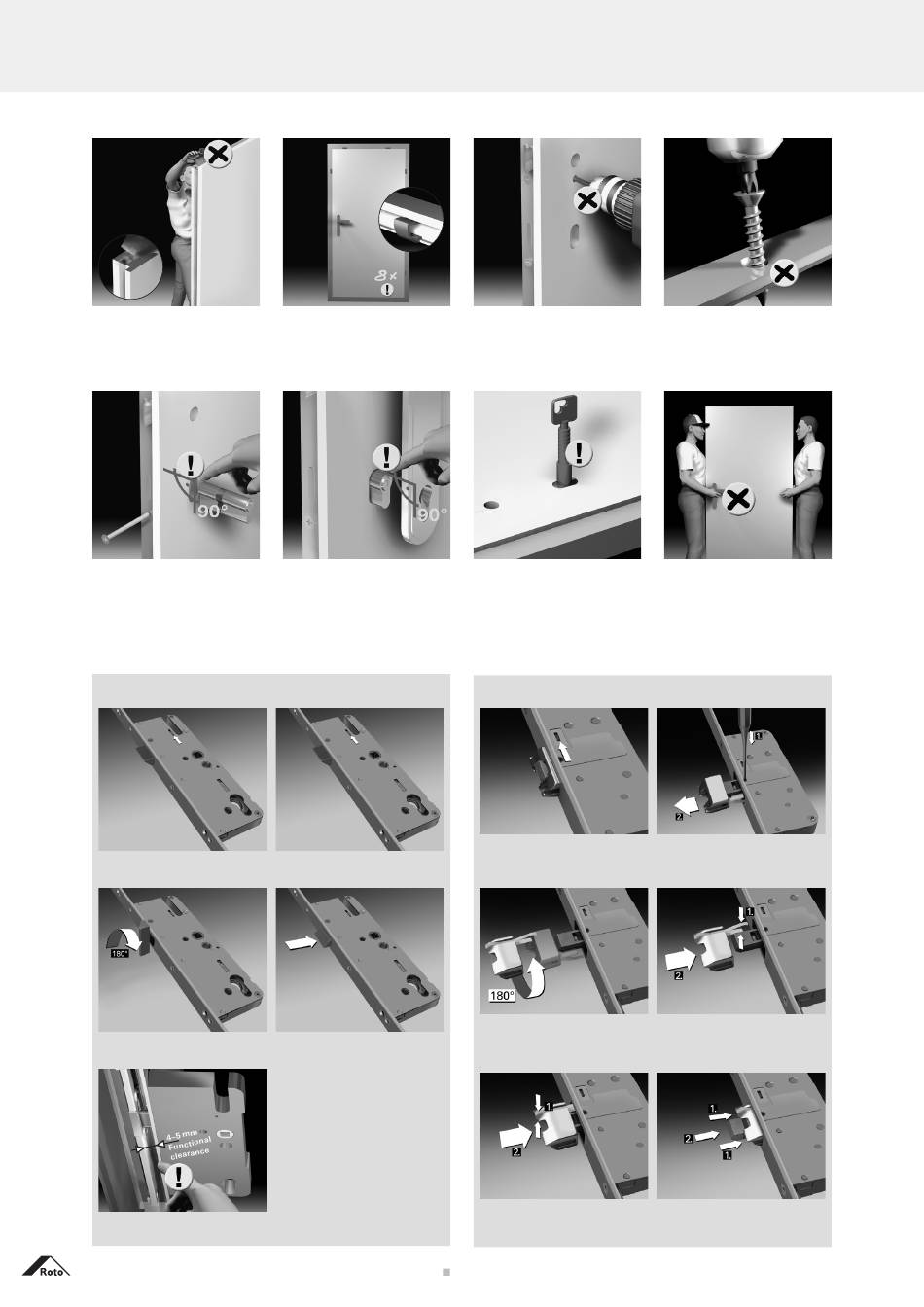

General operation instructions

Various impurities in the top
area of the door leaf (i. e. plaster
residue) may not be wiped in the
direction of the lock (faceplate)
– the locking points could block.
Install the cylinder stress-free re-
spectively aligned at a 90 degree
angle to the door leaf.

Main lock latch conversion

Move the slider upwards.
Turn the latch 180°.
. .
4 August 2019 IMO_66_EN_v2 / 104674
During transport and handling,
the door leaf must be braced to
the frame with suitable packers
(sash-support components,
wedges etc.).
Mount long-plate handles and
rosettes stress-free.
Latch is released.
Roto Safe
The door leaf may not be drilled
through in the lock area if the
lock is installed (e. g. for protec-
tive hardware).
If the original cylinder is not in-
stalled, unlock the door only with
a Roto universal access key.

Automatic bolt conversion

A
Move the slider upwards.
C
Turn the latch 180°.
E
1. Hold down the trigger
mechanism.
2. Push in the latch completely.
E601 – Eneo AF
Screw in screws straight so that
no tension can occur. Do not use
any stainless-steel screws!
Do not carry the door or door leaf
by the lever-handle.
B
1. Insert the installation tool as
far as it will go.
2. Pull out the latch.
D
1. Insert the spring element in the
faceplate opening.
2. Slide in the latch over the
deadbolt.
F
1. Push in the latch completely.
2. Push in the deadbolt
afterwards.
Subject to change.
