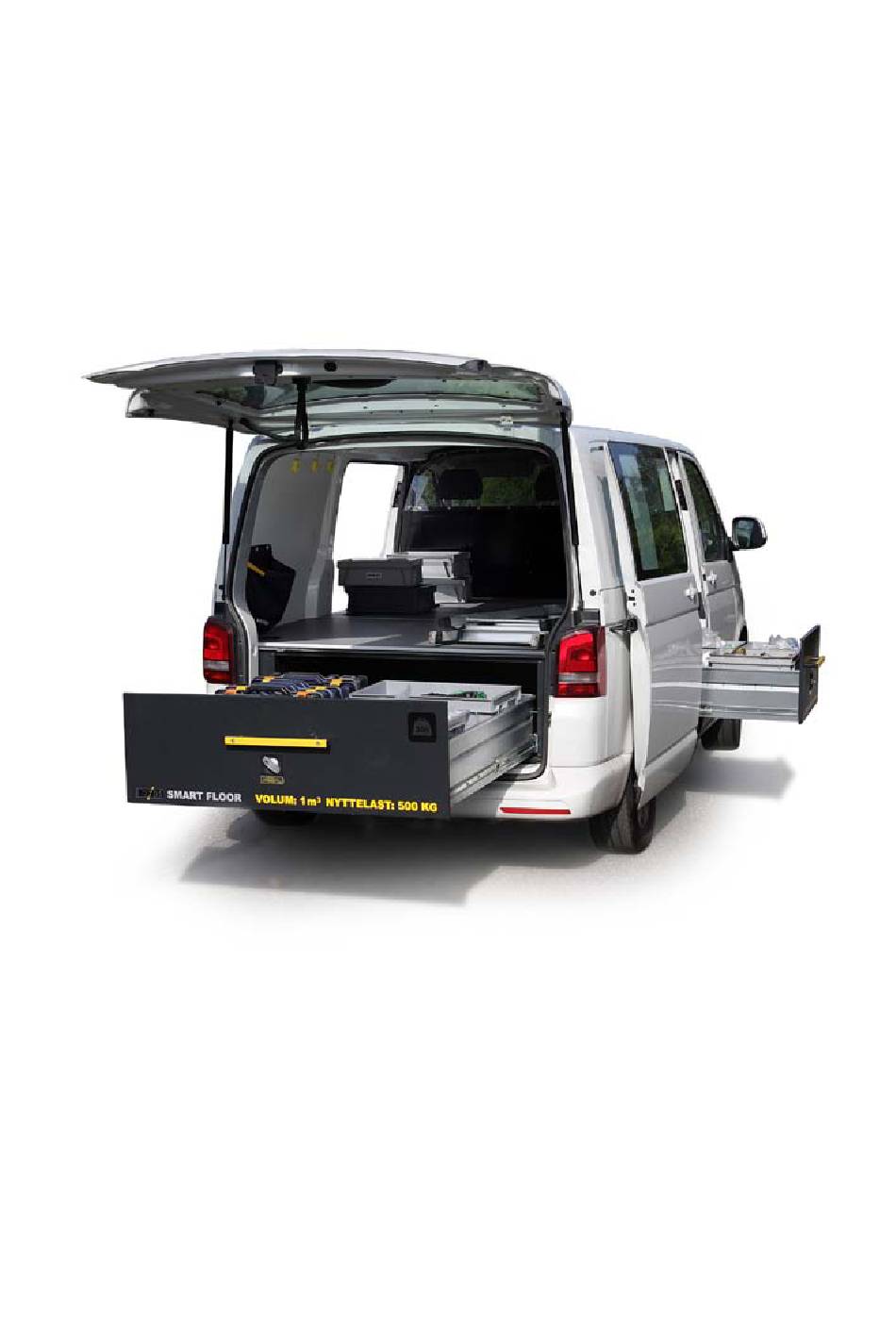

- Page 1 SMARTFLOOR VW T6 w Heater Se Installation Manual Manual nr 15013834 Rev 0 Loyds Industri AS 2017-10-25...
- Page 2 Contents 15013390 Smart Floor T5 / T6 Long w Heater 1SLD Se 15013350 Smart Floor T5 / T6 Short w Heater 1SLD Se 15013394 Smart Floor T5 / T6 Long w Heater 2SLD Se 15013393 Smart Floor T5 / T6 Short w Heater 2SLD Se...
-
Page 3: Revision Record
Revision Record Rev nr Date Page Picture Update Deleted steps Recomended attractrion moments screws: 4,2mm Selfdrilling: 3,6 NM 6mm: 6 NM 8mm: 10 NM 10mm: 42 NM Tools 10,13, 16, 17 mm Bits 10-13 mm Torx T20 6-kant 10 mm... - Page 4 15013390 Smart Floor T5 / T6 Long w Heater 1SLD Se 15013390 Smart Floor T5 / T6 Long w Heater 1SLD Se Item Quantity Part Number Description 15009300 RD Rear Drawer Complete Assy 15009580 FD1 Front Drawer Complete Assy 15013389...
- Page 5 15013394 Smart Floor T5 / T6 Long w Heater 2SLD Se 15013394 Smart Floor T5 / T6 Long w Heater 2SLD Se Item Quantity Part Number Description 15009300 RD Rear Drawer Complete Assy 15009190 FD2 Front Drawer Complete Assy 15013389 Steelbracket Set T6 Long w heater Se 15013388 Floor Kit Long w Heater 2SLD Se...
- Page 6 15013388 Floor Kit Long w Heater 2SLD Se 15013388 Floor Kit Long w Heater 2SLD Se Item Quantity Part Number Description 15010232 Wooden Floor Rear T5 Long w heater 15010233 Wooden Floor Middle T5 Long w heater 15010231 Wooden Floor Middle L1&L2 T5 w heater 15013213 Front Floor T6 Se ASSY 15009326...
- Page 7 15013349 Floor Kit T6 Short w Heater 2SLD Se 15013349 Floor Kit T6 Short w Heater 2SLD Se Item Quantity Part Number Description 15010231 Wooden Floor Middle L1&L2 T5 w heater 15013213 Front Floor T6 Se ASSY 15009326 U-profile 12mm L=1278 15009327 H-profile 12mm L=1576 (front) T5 15010237...
- Page 8 15013389 Steelbracket Set T6 Long w heater Se 15013389 Steelbracket Set T6 Se Long w heater Se Item Quantity Part Number Description Bracket Side Rear Left T5 ASSY 15009323 15010228 Bracket Lower Rear Right T5 w heater Assy 15009321 Bracket Side Middle Left T5 ASSY Bracket Side Front Right w heater ASSY 15010239 15009319...
- Page 9 15013344 Steelbracket Set T6 Short w heater Se 15013344 Steelbracket Set T6 Short w heater Se Date Date Designed by Checked by Approved by larsi 09.10.2017 Item Quantity Part Number Description Edition Sheet 1 / 1 15009323 Bracket Side Rear Left T5 ASSY 15010228 Bracket Lower Rear Right T5 w heater Assy 15010239...
- Page 10 15010236 Handle Assy 15010236 Handle Assy Item Quantity Part Number Description 15009441 Handle Tube 25x15x286 15009442 Spacer Ø8,3x18x30 Nylon Black 15009443 Spacer Ø8,1x13x6mm Galv 15009444 Screw M8x50 Cylinderh Hex 8 NMU Mutter M8 Nyloc DIN985 8,4x17x2 Rear Floor T5 Short w heater 15009438 M8 Washer, DIN 125...
-
Page 11: Fitting Kit
Fitting kit 15006240 13X20X6,4 13X20X10 Plastic Cover Latchcup Spacer, U-709 Spacer, U-710 7/16X25 15009568 4,2x19 FL Screw 4,2x19, flath, selfdrill, Bolt S-82 6K (7/16x1)(12,6x25) elz 4,8x32 Selfdrill CS Torx Elz elzn 15003551 6 NMU 10X25 6K M6x16 TX30 pan (DIN 7985) M6 Self locking nut, DIN 985-8 Bolt, M10x25 Din933 6K , ElZn 15009916... - Page 12 L&R L&R...
- Page 13 L&R 70 mm 85 mm 165 mm 210 mm 865 mm 910 mm 25 mm CUT OUT 45 mm 165 mm 210 mm 865 mm 910 mm 25 mm CUT OUT 45 mm...
- Page 14 L&R...
- Page 15 L2 LH El-connector El-connector...
- Page 16 L&R...
- Page 17 26.A 26.B 26.C L&R 26.D...
- Page 18 L1 RH 28.A L1 LH L1 RH L1 LH 28.B 28.C...
- Page 19 29.A L2 RH 29.B L2 RH 29.C L2 RH...
- Page 20 1SLD LH...
- Page 21 1SLD RH 1SLD 1SLD RH L&R L1 LH L&R...
- Page 22 TIGHTEN ALL OVER 1SLD LH 1SLD LH 44.A...
- Page 23 44.B 44.C 1SLD LH 1SLD LH...
- Page 24 51.A NARROW SEPARATOR NARROW SEPARATOR 51.B NARROW SEPARATOR...
- Page 25 52.A 52.B 52.C 52.D 52.E...
- Page 26 53.A 53.B 53.C 53.D 53.E...
- Page 27 54.A 54.B...
