Summary of Contents for Avalue Technology UB-T100

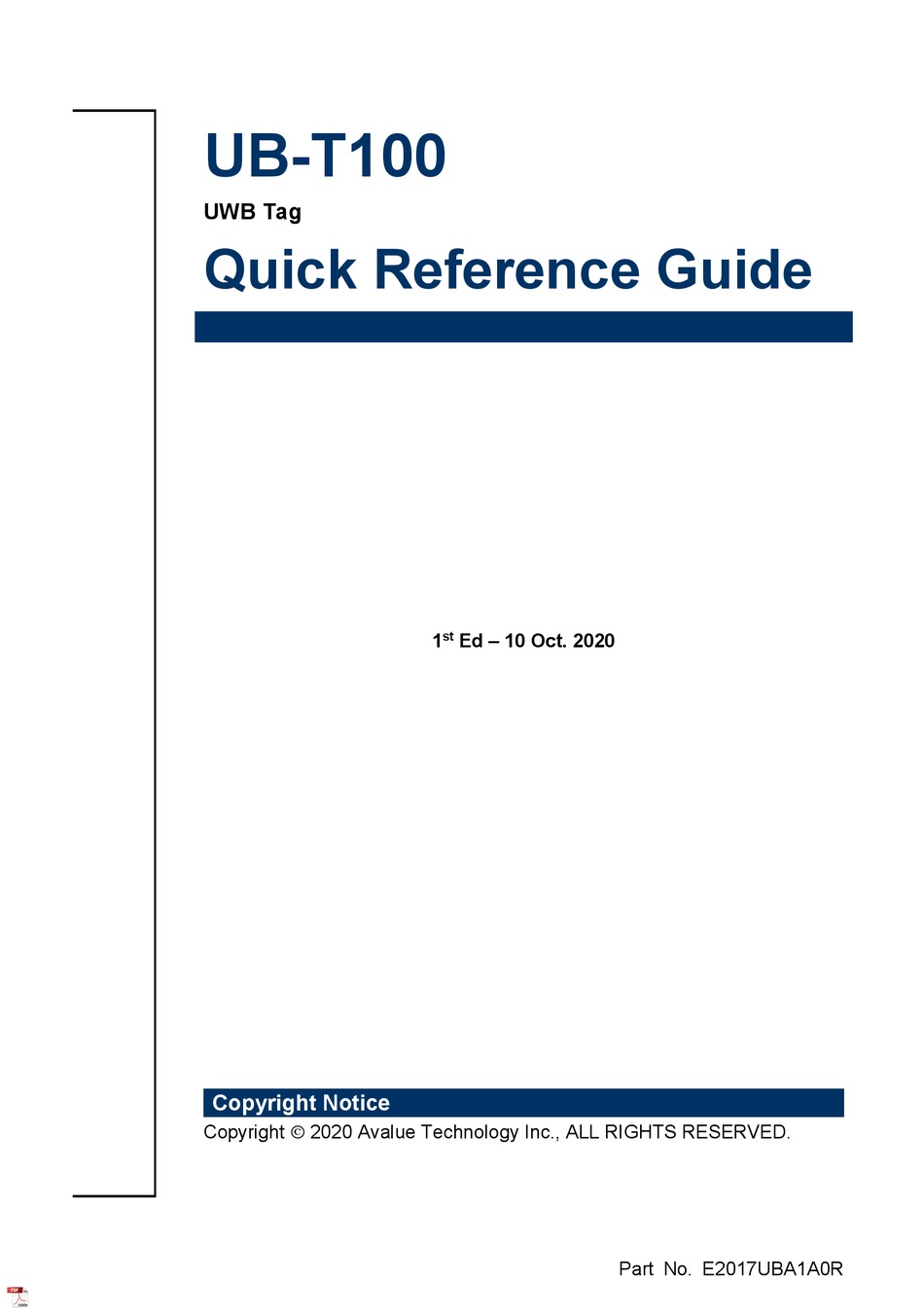

- Page 1 UB-T100 UWB Tag Quick Reference Guide Ed – 10 Oct. 2020 Copyright Notice Copyright 2020 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017UBA1A0R...
- Page 2 These answers are normally a lot more detailed than the ones we can give over the phone. So please consult the user’s manual first. To receive the latest version of the user’s manual; please visit our Web site at: http://www.avalue.com.tw/ 2 UB-T100 Quick Reference Guide...
-
Page 3: Table Of Contents
Quick Reference Guide Content 1. Getting Started ......................4 1.1 Safety Precautions ....................4 1.2 Packing List ....................... 4 1.3 System Specifications ....................5 1.4 System Overview ...................... 6 1.5 System Dimensions ....................7 1.6 Operating ........................7 UB-A100 Quick Reference Guide... -
Page 4: Getting Started
Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x USB Charging Cable 4 UB-T100 Quick Reference Guide... -
Page 5: System Specifications
Quick Reference Guide 1.3 System Specifications UWB RF Specifications Chip Decawave DW1000 850K bps Physical rate 6.8 Mbps Antenna peak gain 2.6dBi UWB RF Specifications Chip Decawave DW1000 850K bps Physical rate 6.8 Mbps Software UWB operating mode TDoA Warning SOS, emergency button Low Power System... -
Page 6: System Overview
UB-A100 Note: Specifications are subject to change without notice. 1.4 System Overview Label Function LED1 Battery Status LED2 Power Status Send Signal BUTTON Magnetic Charging POWER Connector 6 UB-T100 Quick Reference Guide... -
Page 7: System Dimensions
Quick Reference Guide 1.5 System Dimensions 1.6 Operating (Unit: mm) UB-A100 Quick Reference Guide...
