Product End-of-Life Disassembly Instructions
Product Category: Personal Computers
Marketing Name / Model
[List multiple models if applicable.]

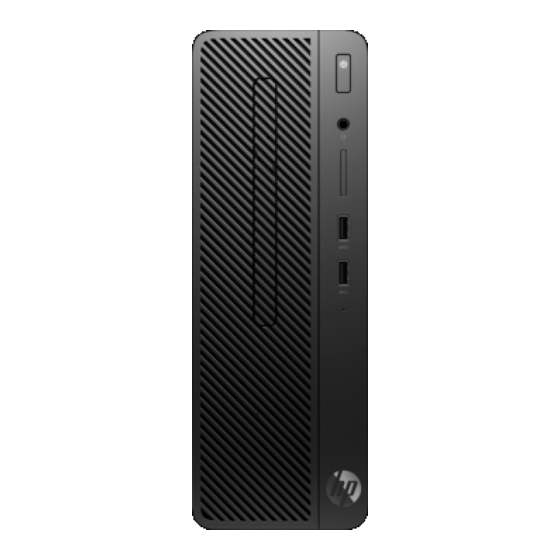

HP 280 G3 SFF Business PC
HP 290 G1 SFF Business PC
HP 280 Pro G3 SFF Business PC
Purpose: The document is intended for use by end-of-life recyclers or treatment facilities. It provides the basic instructions for
the disassembly of HPI products to remove components and materials requiring selective treatment, as defined by EU directive
2012/19/EC, Waste Electrical and Electronic Equipment (WEEE).
NOTE: Recyclers should sort plastic materials into resin streams for recycling based on the ISO 11469 plastic marking code on
the plastic part. For any questions on plastic marking, please contact
1.0 Items Requiring Selective Treatment
1.1 Items listed below are classified as requiring selective treatment.
1.2 Enter the quantity of items contained within the product which require selective treatment in the right column, as
applicable.
Item Description
Printed Circuit Boards (PCB) or Printed Circuit
Assemblies (PCA)
Batteries, excluding Li-Ion batteries.
Li-Ion batteries. Include all Li-Ion batteries if more
than one is provided with the product (such as a
detachable notebook keyboard battery, RTC coin cell,
etc.)
Mercury-containing components
Liquid Crystal Displays (LCD) with a surface greater
than 100 sq cm
Cathode Ray Tubes (CRT)
Capacitors / condensers (Containing PCB/PCT)
Electrolytic Capacitors / Condensers measuring
greater than 2.5 cm in diameter or height
External electrical cables and cords
Gas Discharge Lamps
EL-MF877-00
Template Revision C
Last revalidation date 09-May-2018
Notes
With a surface greater than 10 sq cm
All types including standard alkaline, coin or button
style batteries
Battery(ies) are attached to the product by (check all
that apply with an "x" inside the "[ ]"):
[
[x] snaps
[
[
NOTE: Add detailed removal procedures including
required tools in the sections 3.1 and 3.2.
For example, mercury in lamps, display backlights,
scanner lamps, switches, batteries N/A
Includes background illuminated displays with gas
discharge lamps N/A
N/A
N/A
N/A
DC Cable for External Power Supply
N/A
HPI instructions for this template are available at
HP's Sustainability
] screws
] adhesive
] other. Explain N/A
EL-MF877-01
Contact.
Quantity of
items
included in
product
1
1
1
0
0
0
0
0
0
0
Page 1

Advertisement

Table of Contents

   Summary of Contents for HP 280 G3

  • Page 1 Product Category: Personal Computers Marketing Name / Model [List multiple models if applicable.] HP 280 G3 SFF Business PC HP 290 G1 SFF Business PC HP 280 Pro G3 SFF Business PC Purpose: The document is intended for use by end-of-life recyclers or treatment facilities. It provides the basic instructions for the disassembly of HPI products to remove components and materials requiring selective treatment, as defined by EU directive 2012/19/EC, Waste Electrical and Electronic Equipment (WEEE).
  • Page 2 Quantity of items Item Description Notes included in product Plastics containing Brominated Flame Retardants weighing > 25 grams (not including PCBs or PCAs already listed as a separate item above) Components and parts containing toner and ink, Include the cartridges, print heads, tubes, vent including liquids, semi-liquids (gel/paste) and toner chambers, and service stations.
  • Page 3 3.2 Optional Graphic. If the disassembly process is complex, insert a graphic illustration below to identify the items contained in the product that require selective treatment (with descriptions and arrows identifying locations). 1. Loosen 1 screw and remove access panel from housing. 2.
  • Page 4 5. Disassemble Front Cover 5-1 Loosen 2 screws and remove power board. 5-2 Unlock 8 hooks then remove FIO shielding from Front Bezel. EL-MF877-00 Page 4 Template Revision C Last revalidation date 09-May-2018 HPI instructions for this template are available at EL-MF877-01...
  • Page 5 5-3 Unlock 10 hooks then separate Front Cover and IO Cover. 6. Loosen 3 screws then remove HDD BKT ASSY from housing. 7. Pull off all cables on MB. 8. Push 2 hooks then remove Fan duct. EL-MF877-00 Page 5 Template Revision C Last revalidation date 09-May-2018 HPI instructions for this template are available at...
  • Page 6 9. Loosen 7 screws then remove MB. 10. Loosen 4 screws then remove CPU cooler from MB. 11. Loosen 4 screws then Remove CPU Fan. EL-MF877-00 Page 6 Template Revision C Last revalidation date 09-May-2018 HPI instructions for this template are available at EL-MF877-01...
  • Page 7 12. Loosen 4 screws then remove PSU. EL-MF877-00 Page 7 Template Revision C Last revalidation date 09-May-2018 HPI instructions for this template are available at EL-MF877-01...
