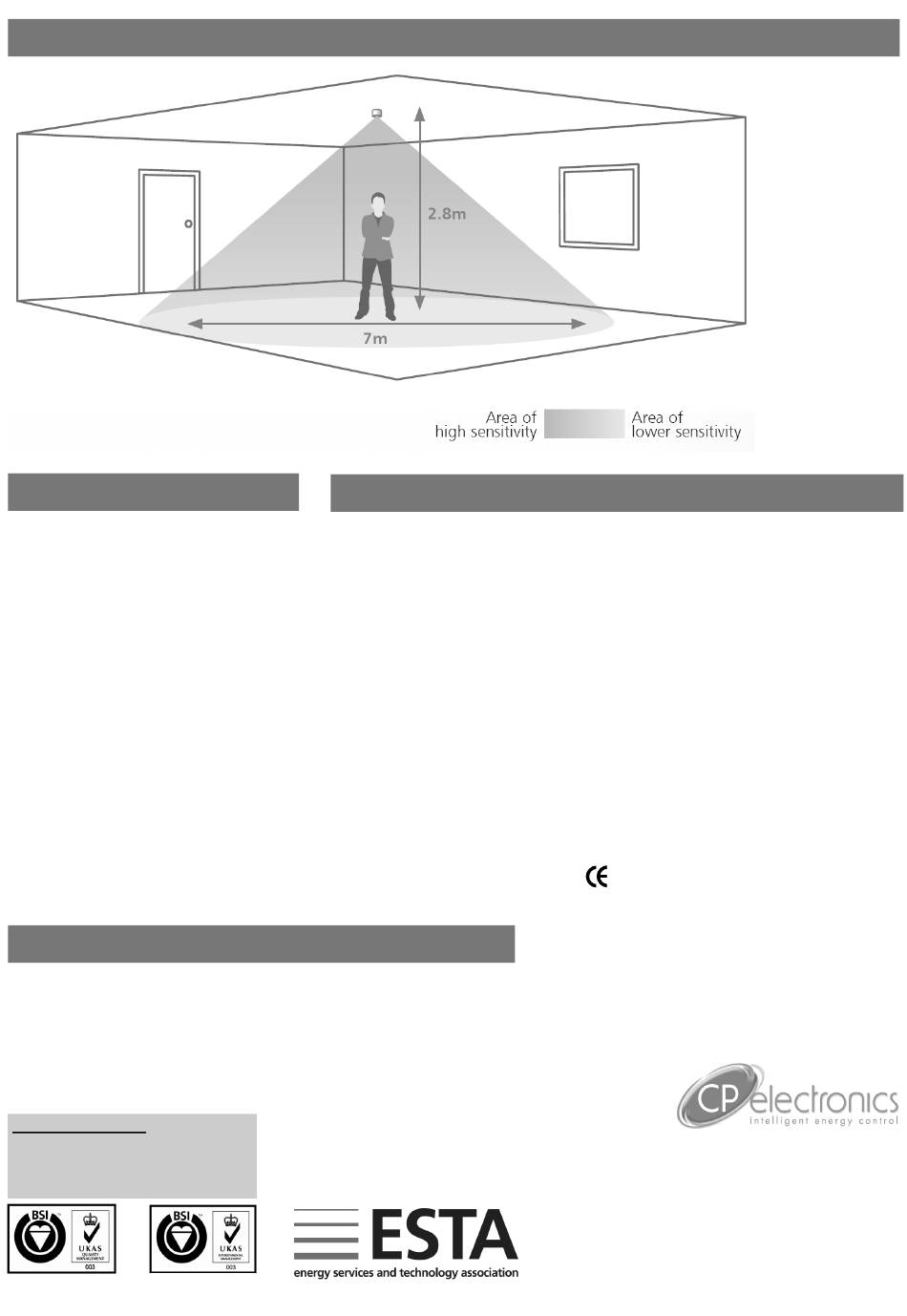

D P
ETECTION ATTERN
F F
AULT INDING
LOAD DOES NOT COME ON
Check to see if the live supply to the circuit is
good. Strap across the L and LIVE OUT termi-
nal to turn the load on.
If the supply and wiring are good, check the
LUX level setting. Increase the LUX level set-
ting to allow the controller to turn on at higher
ambient natural light level.
If the detection range is smaller than expected,
check the diagram above. Rotating the sensor
slightly may improve the range.
LIGHTS DO NOT GO OFF
Ensure that the area is left unoccupied for
longer than the selected timer setting.
Make sure that the sensor is not adjacent to
circulating air, heaters or lamps.
P N
ART UMBERS
SPIR-F/C/IP Ceiling mounted presence detector c/w internal lux sensor

IMPORTANT NOTICE!

This device should be installed by a
qualified electrician in accordance with
the latest edition of the IEE wiring
regulations.
FM 45789
Due to our policy of continual product improvement CP Electronics reserves the right to alter the specification of this product without prior notice.
S
LOAD
16 Amp resistive load
10 Amp incandescent lighting
6 Amp fluorescent lighting
3 Amp compact fluorescent lighting
3 Amp low energy lighting
3 Amp low voltage lighting (switch primary of transformer)
Fluorescent lighting (max 6 fittings recommended)
For fluorescent lighting total power factor correction capacitance must not exceed 40μF.
3 Amp fans and ventilation equipment
Switch SON lighting loads via a contactor
SUPPLY VOLTAGE
TIME OUT PERIOD
LIGHT LEVEL
FIXING METHOD
TERMINAL CAPACITY 4.0mm
MATERIAL
TYPE
IP RATING
TEMPERATURE
CONFORMITY
EMS 534520
PECIFICATION
220-240 Volts AC 50 Hz
Adjustable 10 seconds to 30 minutes
Light to dark.
Surface fixing 25mm deep plastic surface mount moulded box.
Flush fixing
2
Flame retardant ABS
Class 2
IP55
-10°C to 35°C
EMC-89/336/EEC
LVD-73/23/EEC
25mm steel wall box or 32mm deep cavity wall box.
C.P. Electronics Ltd
Brent Crescent
London
NW10 7XR
United Kingdom
Tel: + 44 (0) 333 900 0671
Fax: + 44 (0) 333 900 0674
www.cpelectronics.co.uk
enquiry@cpelectronics.co.uk
Ref #WD224 Issue 2
