Zonzini Domino Use And Maintenance Manual

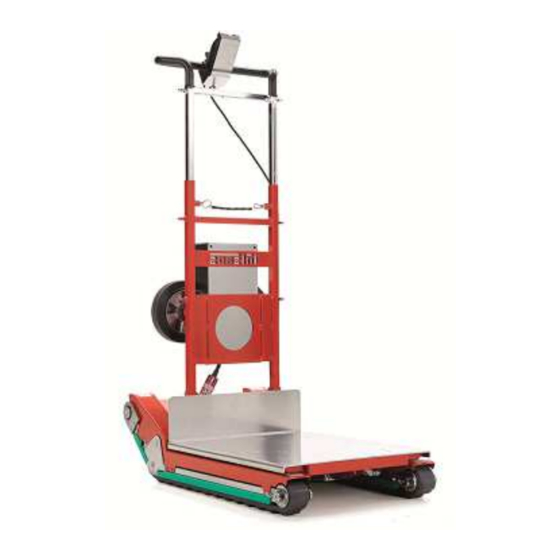

Electric stair climbing trolley
Hide thumbs
Table of Contents

Advertisement

Quick Links

1

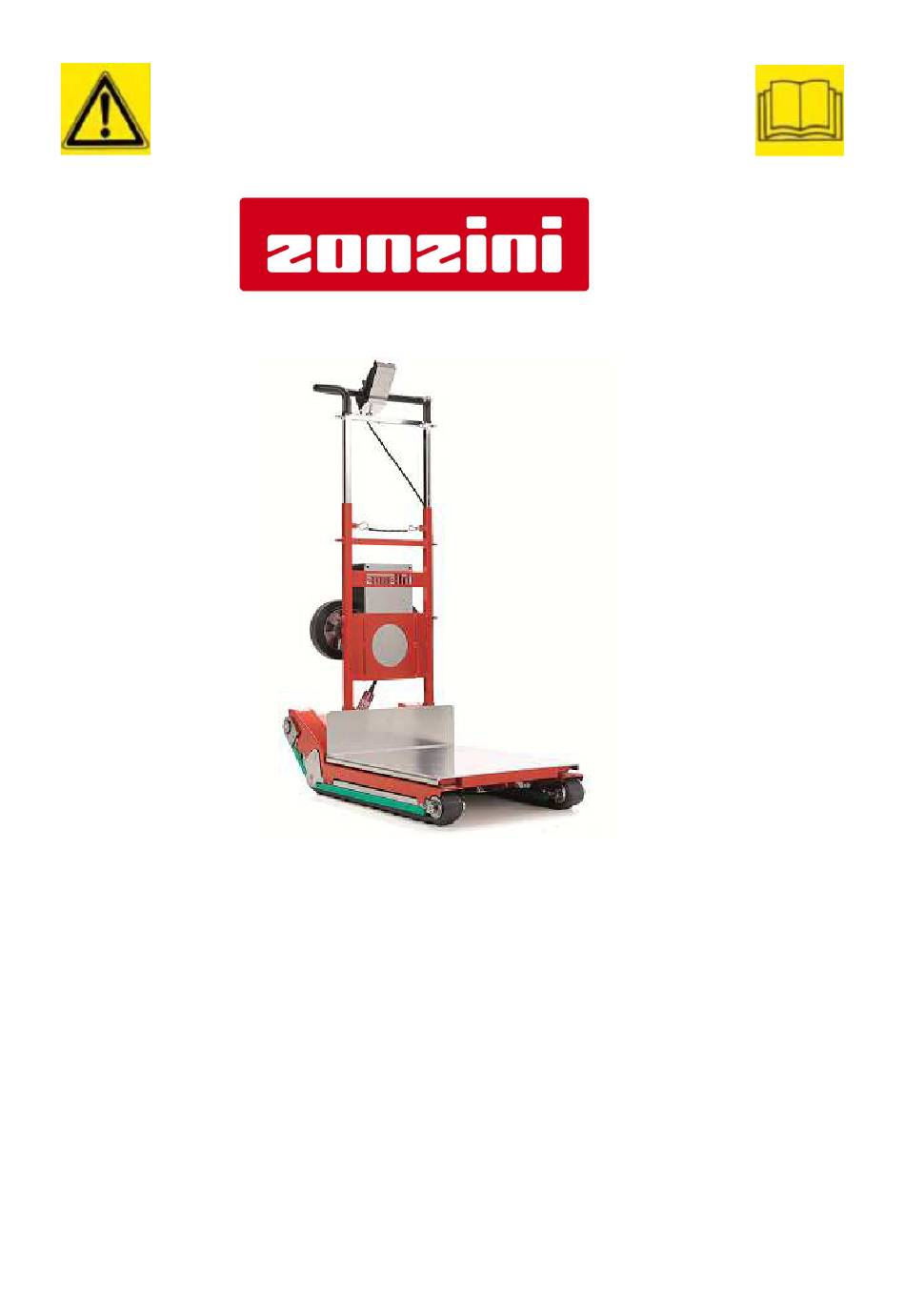

Read this instruction manual before using the
electric stair climbing trolley
Electric stair climbing trolley
DOMINO
Use and maintenance manual
