Installer Manual
DO NOT GIVE TO HOME
OWNER.
FOR PROFESSIONAL USE ONLY
.
4G Mult icom LITE GSM/ Cellular Intercom System
Note: For legal reasons, telephone technical support is for registered and
qualified product installers only. Home owners and end-users should contact
their installer for product technical support.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRIME6-PROX-IMPK-PE-4GA and is the answer not in the manual?

Questions and answers

Summary of Contents for BFT PRIME6-PROX-IMPK-PE-4GA

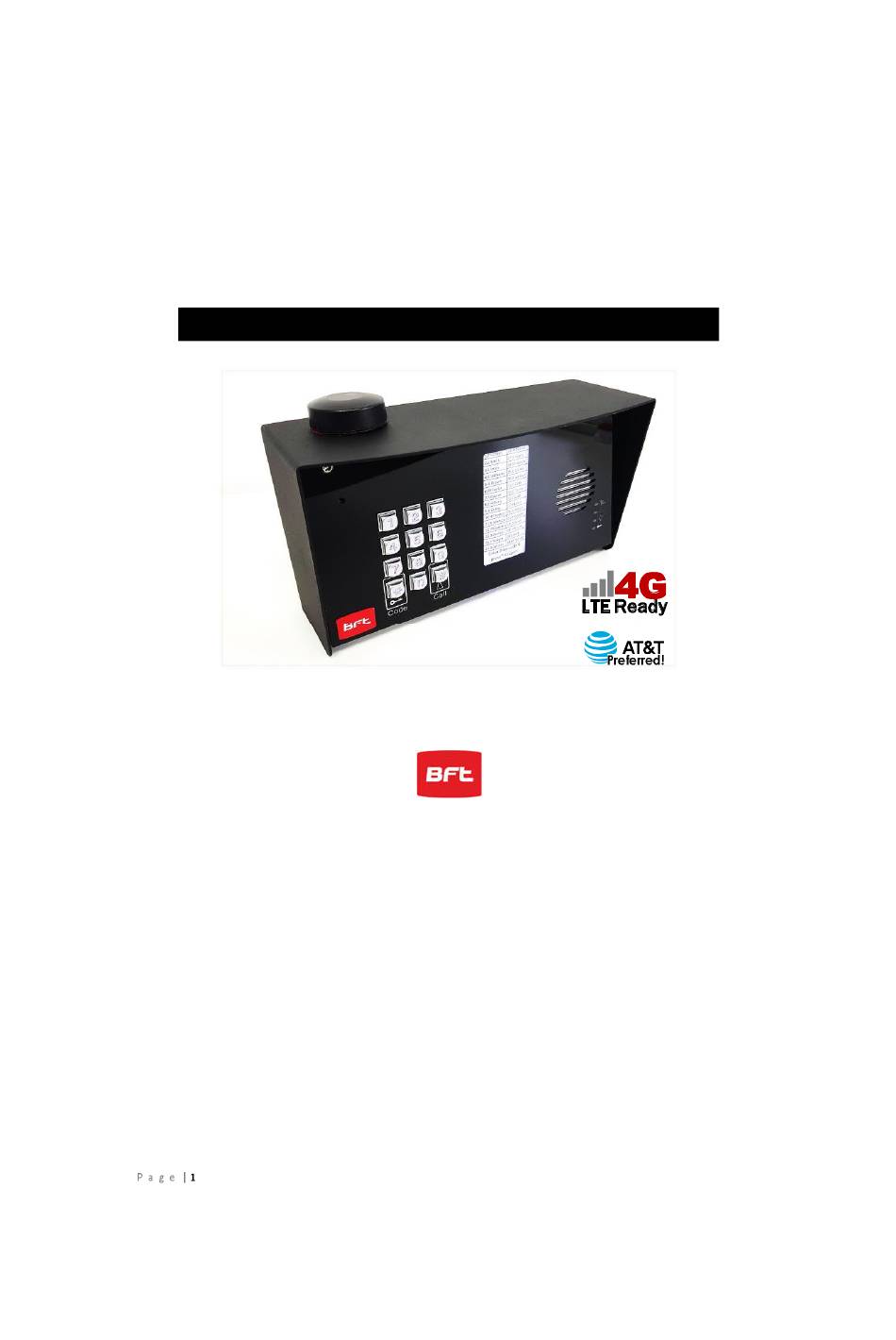

  • Page 1 Installer Manual DO NOT GIVE TO HOME OWNER. FOR PROFESSIONAL USE ONLY 4G Mult icom LITE GSM/ Cellular Intercom System Note: For legal reasons, telephone technical support is for registered and qualified product installers only. Home owners and end-users should contact their installer for product technical support.
  • Page 2: Table Of Contents

    Contents Really Important things (site survey) Overview of outside of product Overview of Inside Pedestal Installation Wall mount installation Power IN module Cellular module in detail Wiring relays Keypad / Prox module in detail Connecting slave devices Inserting SIM Powering up and LEDs Installing the Programming APP Begin Programming a New Install Begin Programming Existing Install...
  • Page 3: Really Important Things (Site Survey)

    Really Important things you Need to Know.. Please read this entire manual before installing To be installed by certified and qualified this product. personnel / gate automation dealer only. Not for DIY install! Ensure there is good network signal at the Set up on a bench in workshop BEFORE going gate/door of the install site BEFORE installing to site.
  • Page 4 Now l Antenna Security Screw Access OPTIONAL prox reader Speaker Pedestal style Enter door code then Illuminated info or name window. Visit press to enter Enter apartment www.bftaccess.com for template or open number or address, then press to CALL Security Screw Access Wall / (Open top screws only) building...
  • Page 5 Power conditioning & Antenna Surge protection module Optional Info / name Cellular Keypad Prox module window Module module Optional Prox coil...
  • Page 6 Cable Entry Hole Mounting Holes Optional Prox reader module Push button Optional Prox Coil GSM / Cellular PCB Module Antenna Connection Illumination PCB for name window Name window holder...
  • Page 7: Pedestal Installation

    Pedestal Installation After fitting the box to the gooseneck, re-fit the module and connect a 14 gauge earth wire to the earth terminal. IF NECESSARY, remove 4 screws and remove power conditioning module Surge protected 110v Use minimum 16 gauge wire from the 24v dc adaptor Call box provided to the terminals...
  • Page 8: Wall Mount Installation

    Wall Mount Installation To Earth Rod Wall mount 24v DC call station 24v DC IN from PSU Use 110V surge protection to maintain Wall or Pillar warranty (side view) Weatherproof enclosure IMPORTANT Earth Rod 18 gauge MIN 10 feet MAX Power 500mA quick blow output fuse...
  • Page 9: Cellular Module In Detail

    Cellular SIM holder Modem Status Module in CPU Status Signal Status Antenna Power connection Relay 1 Relay 2 24v dc IN (pre-wired) Gate Position 12v dc 100mA To Call Exit Button Limit switch (backlighting) Button (optional) Electric Gates Wiring Relays Note: The manufacturer is not responsible for wiring to third party devices.
  • Page 10: Connecting Slave Devices

    Slave OUT connections Keypad / 24v out PROX Modules Slave IN Optional PROX module Baud jumper (remove Slave OUT for older intercoms) Keypad Module Slave IN connections Connecting Slave CAT5 (30ft max) Optional Slave 300ft if device powered Keypad Devices separately 1 2 3 24v Optional...
  • Page 11: Powering Up And Leds

    Inserting the SIM card Ensure SIM is activated. 45 chamfer OUT Pre-pay SIM will need credit first. Pads DOWN At&T preferred. T-Mobile also compatible in certain areas. WARNING Ensure power is OFF. Do not hot insert or remove while power on. Powering Up &...
  • Page 12 Installing the Programmer APP for the first time Download the smartphone app to program this unit. Search for BFT MULTICOM 4G and look for the icon below... Accept and allow all After you send the To register first time, permissions (Android...
  • Page 13 Program a NEW or EXISTING Job Site Press SETTINGS to reveal the screen shown. Choose to create a NEW site or edit an existing one. Then you can begin programming. ANDROID Press & HOLD Iphone use the NOTE: Do not change engineers or managers codes on the APP unless they have already been...
  • Page 14 Select or Create a new Job Site App AND Intercom Update App ONLY update Use to change either the manager or Use to update the APP, typically engineer programming codes on BOTH when another user has changed the the intercom and the APP. programming codes on the intercom from another phone.
  • Page 15: Programming

    Programming Now that you have either entered a new client, or selected an existing client from the client list, you are now ready to begin programming. Step 1: Check Reception Go to MORE>INFORMATION to reveal the screen shown. Press the reception check button. On Android the app will automatically send a SMS string (*20#) to the intercom.
  • Page 16: Add A Family

    Step2: Add a Family (up to 100) Add up to 3 numbers for a family or resident, one code, and up to 3 proximity cards (Note: cards have serial numbers printed on them which can be added to the fields as shown).
  • Page 17 Step2b: Edit family Details if needed Edit just the name, phone numbers, prox cards or pin code individually for any family with the following buttons.. SMS Strings Change Family Name 9999#11#apartmentnumber#newname# Edit or add first Phone Number 9999#12#apartmentnumber#phonenumber# Edit or add second Phone Number 9999#13#apartmentnumber#phonenumber# Edit or add family Prox Card 1 Edit or add third Phone Number...
  • Page 18: Activate Auto Sync

    Step3: Activate Auto Sync If you are using time sensitive features, such as time restricted access control, or auto opening and closing of gates at pre-set times of the day and week, then it is important to activate the auto sync. This intercom reads the current date and time from an incoming SMS message and re-calibrates its time from that.
  • Page 19: A Closer Look At Keypad Codes

    A closer look at Keypad codes.. There are 3 types of visitor keypad codes.. 50 permanent codes which can be used 24/7. 20 temporary codes, which auto expire in a pre-set number of hours. 20 time restricted codes which can only be used at pre-set times and days of the week.
  • Page 20: A Closer Look At Prox Cards

    A closer look at Prox cards There are 3 types of visitor cards.. 50 permanent cards which can be used 24/7. 20 temporary codes, which auto expire in a pre-set number of hours. 20 time restricted codes which can only be used at pre-set times and days of the week.
  • Page 21: A Closer Look At Callerid

    A closer look at CallerID IMPORANT: All resident phone numbers that are stored can automatically have callerID access without having to store the numbers in this section again. Go to CONCIERGE/ACCESS CONTROL to activate CallerID for all residents. There are 3 types of CallerID access for VISITORS: 50 visitor phone numbers with 24/7 access.
  • Page 22: Do Not Disturb

    Do Not Disturb On this screen you can prevent residents receiving calls from visitors after a set time at night. This can be useful if there are antisocial callers or residents do not want disturbed at weekends. Enter time in 24hr format, no colon. Eg 8.20am = 0820.
  • Page 23: Auto Opening

    Auto Opening You can use the internal time clock feature to hold open gates at pre-set times and days of the week. For gates that are on step by step operation, set trigger times to activate opening and closing. For auto-closing gates, set LATCH times to open, and then set separate UNLATCH times to close again.
  • Page 24: Enquire Residents Info

    Enquire Resident Info Enter the apartment or house number and the intercom will reply with all data, numbers and codes stored against that resident. SMS String Enquire resident 9999#26#apartment# Concierge / assistance Used in panels with a HELP / Assistance or concierge button.
  • Page 25: More Settings

    More Settings Screen Check status of relays, signal strength, stored codes and much more. Adjust speaker & microphone volume Adjust ringing times before rolling to next phone number Set global relay trigger times, useful for magnetic locks Volumes If residents experience significant echo, reduce the microphone and speaker levels as low as possible.
  • Page 26: Dialling Times

    Dialling Times Use these to adjust the ringing time the intercom will call a number before it will stop and call the next. This is useful to avoid voicemail from picking up a call. Default dialling time is 20 seconds (from button press) SMS Strings Set first ringing time 9999#21#XX# (Default = 20.
  • Page 27: Information Screen

    Information Screen This screen allows the engineer or manager to be able to check multiple things on the intercom. Please note the following points.. -5555 is the default managers code shown. -Stored callerID numbers, keypad codes and prox users are VISITOR credentials only. These do not list RESIDENT credentials.
  • Page 28 Manager Controls of Gate / Door This screen allows the installer or manager to manually trigger the gate. RELAY 1 RELAY 2 Momentary trigger Momentary trigger 5555#1# 5555#4# RELAY 1 RELAY 2 Latch / Hold Open Latch / Hold Open 5555#2# 5555#5# RELAY 1...
  • Page 29 The table below show the complete list of features. Programming messages below must begin Edit a family name 9999#11#12345#Jones# Edit or add family number 9999#12#12345#number# (edit first dialled number) 9999#13#12345#number# (edit second dialled number) 9999#14#12345#number# (edit third dialled number) Edit a family door code 9999#15#12345#code# Edit or add a family card 9999#16#12345#serial#...
  • Page 30 9999#51#XXXX# Store intercom own phone number for AUTO self SMS sending on reboot. 9999#54#XXXXXXXXXX# Activate auto SMS sending (to re-calibrate time every day) 9999#55#XX# (0=off, 1=SMS every day, 2=SMS every 2 days etc) Store phone number for manager / concierge / assistance call button to call when pressed 9999#56#XXXXXXXXX# Delete manager phone number 9999#56#*#...
  • Page 31 9999#74#*# To store prox card (50 max) 9999#61#Y#serial# (y = 1 or 2 for relay 1 or 2) To store temporary visitor Prox card (20 max) 9999#62#hours#serial# (hours can be up to 999 max) To store time restricted prox card (20 max) 9999#63#day,day,day,day,day#time1,time2#serial# To delete a prox card: 9999#64#serial#...
  • Page 32 Troubleshooting guide Q. The unit will not power up. No LEDs on. A. Check power supply voltage at intercom is 23.4v DC or more. Cable length from PSU to intercom should be less than 25 feet and in 14 gauge for longer distances. See guide. Check the fuse.
  • Page 33 the antenna further away. Remove any short bends in the antenna. Ensure the spare antenna cable is not rolled up inside the call station. Q. The trigger keys do not work when the intercom calls a phone. A. Check if you can hear the relay clicking at the gate when the keys are pressed during a call. If it can be heard, then the system is working, check wiring between the relay and the lock or gate panel.
  • Page 34 FCC ID: 2ALPX-PE-4GA Main Model No: PRIME6-PROX-IMPK-PE-4GA Caution: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference...
