Summary of Contents for Gutermann HISCAN

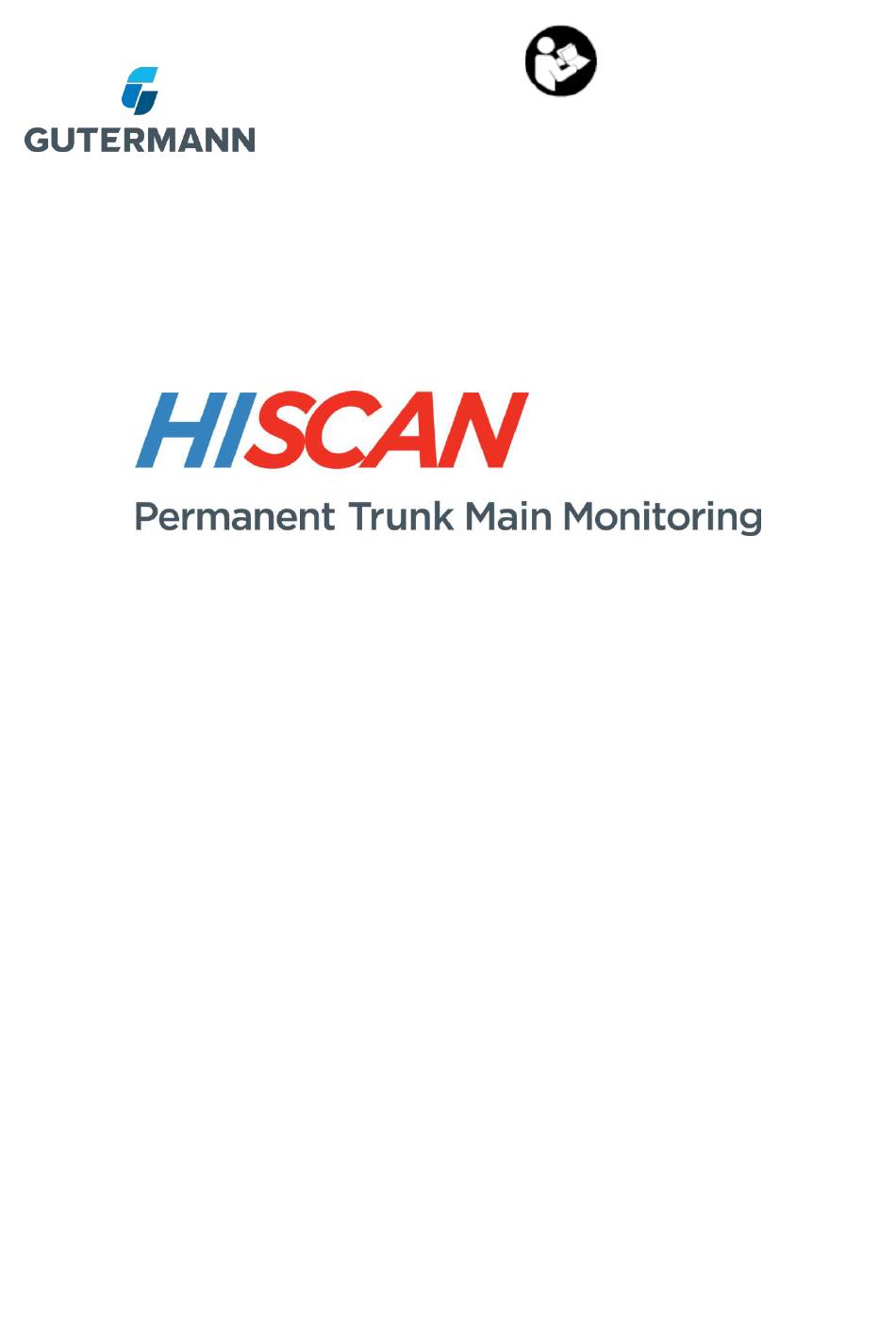

- Page 1 Safety Guidelines & Installation Manual Language: English Version:...
-
Page 2: Table Of Contents
Table of Contents Indications for Use ......................3 Symbols ........................3 Safety ........................4 Intended Use ......................4 Delivery Contents ......................5 Mechanical installation....................6 Safety Precautions ....................6 Directions for the Hydrophone ................. 6 Directions for the External Antenna ................. 8 Directions for the Power Supply ................ -
Page 3: Indications For Use
1 Indications for Use It is essential to read the operating instructions carefully and completely before using the first time the equipment and software. They contain important information on safety, installation and use. Keep these instructions in a safe place. 1.1 Symbols Warning of dangerous situations that can cause injury and damage to the devices. -
Page 4: Safety
Do not make any changes or alterations to our products. HISCAN is powered via Lithium primary cell. The battery/cells must not be charged, short- circuited, physically damaged or exposed to heat, fire or water. Follow the transport stipulations of the carrier (IATA-DGR, IMDG-Code, ADR, RID) when returning HISCAN to Gutermann. -
Page 5: Delivery Contents
2 Delivery Contents HISCAN consists of the hydrophone logger, battery box, antenna and power cable. Additionally you can either install ALPHA V2 data collector or use ZONESCAN smart. 5 I 13... -
Page 6: Mechanical Installation
3 Mechanical installation. HISCAN is a high performance noise data logger, used for (semi)permanent monitoring of drinking water pipes. 3.1 Safety Precautions You must ensure that there is adequate safety present when working at great heights, deep chambers or traffic situation. - Page 7 7 I 13...
-
Page 8: Directions For The External Antenna
Tighten connectors correctly to ensure good contact and sealing. No tools necessary – finger-tight fastening is adequate. The HISCAN battery box (HSB10) is intended to be used with a lithium primary cell. Both the battery box (HSB10) or a primary cell are not intended to be charged. -
Page 9: Battery Replacement
Close the lid and close the latches until you hear them snap in place. To replace the cell on the HISCAN battery box (HSB10), a suitable exchange battery of the same kind must be used. In case of doubt contact a Gutermann representative. -
Page 10: Technical Data
4 Technical Data 4.1 Hydrophone (model name HS401, HS501) Mechanical dimensions Diameter 63 mm Height 68 mm Hydrophone thread Female 1 ¼ Inches Weight 660g Protection class IP67 Connectors Power supply connector M8 Jack male 3 Poles Antenna connector TNC, reverse polarity Data Power Supply Parameter Typ. -
Page 11: Battery Box (Hsb10)
4.2 Battery Box (HSB10) Mechanical dimensions Length 150,6 mm Width 80 mm Height 60 mm Weight 360 Grams Enclosure material Polycarbonate IP Grade IP68 Reverse consumption < 10µA Operational temperature -30°C to 70°C Cable connections < 3 m length Battery Internal battery kind Lithium primary cell Battery Shape... -
Page 12: Connectors
If an orderly disposal of our products is not possible, send the unit to us. We dispose of our products environmentally friendly. Address see below. 7 Imprint Gutermann Technology GmbH Tel: +49 751 3590 1682 Gottlieb-Daimler-Str. 10... -
Page 13: Conformity
8 Conformity This radio transmitter IC: 9789A-HISCAN915V1 has been approved by Innovation, Science and Economic Development Canada to operate with the antenna types listed below, with the maximum permissible gain indicated. Antenna types not included in this list that have a gain greater than the maximum gain indicated for any type listed are strictly prohibited for use with this device.
