SS2V70 70V 2-Zone 100-Watt Speaker Selector

This SS2V70 70V 2-Zone 100-Watt Speaker Selector features two independent mono 70V

100-watt speaker zones, each with its own on/off switch and volume control knob. It has a

single 2-conductor input and a pass-through output, allowing multiple speaker selectors to

be daisy chained. It supports up to 80 watts of 70V speakers connected to each zone.

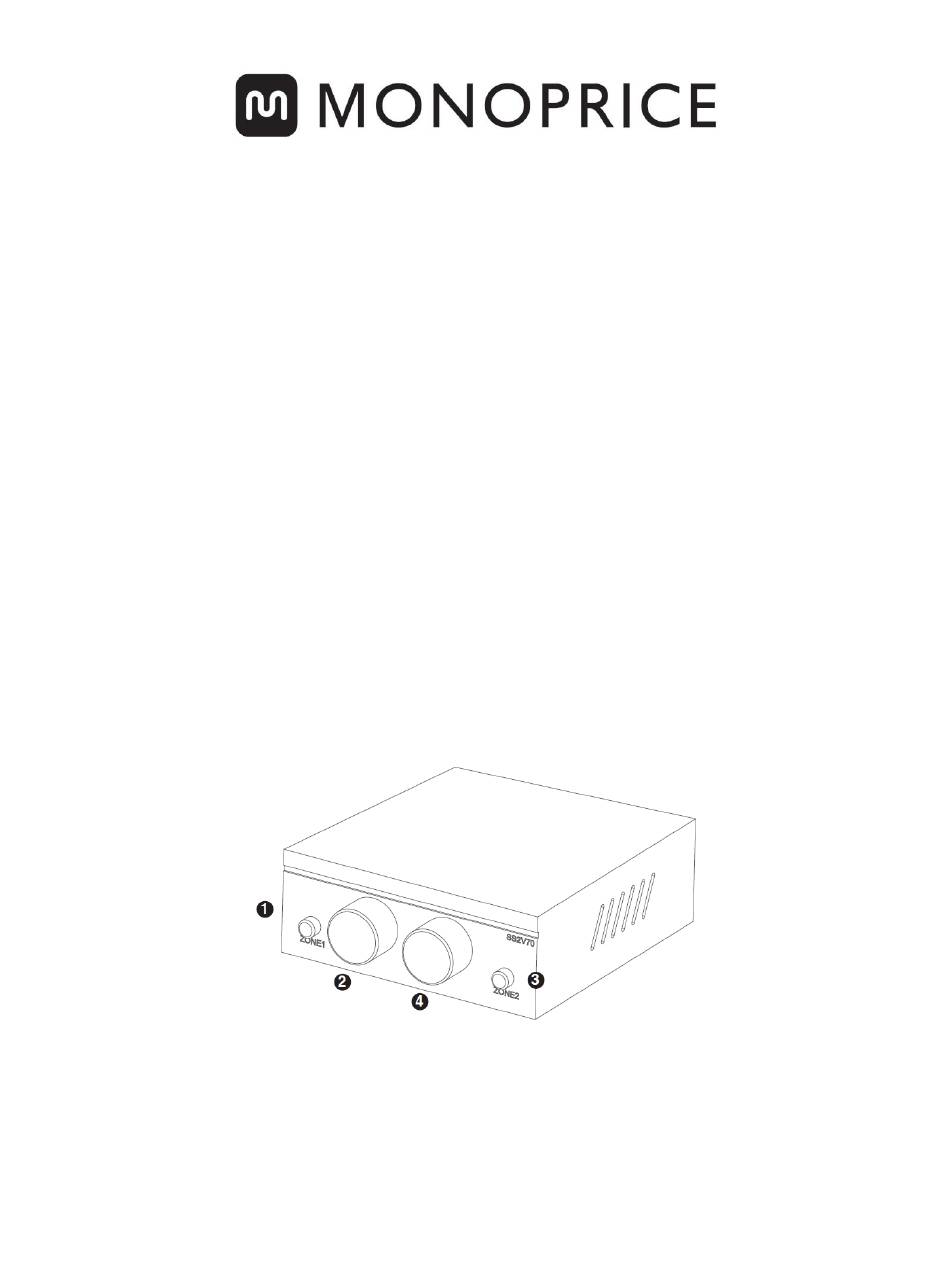

1. Zone 1 On/Off Switch

2. Zone 1 Volume Control

P/N 38165

Quick Install Guide

3. Zone 2 On/Off Switch

4. Zone 2 Volume Control

Table of Contents

Do you have a question about the SS2V70 and is the answer not in the manual?

Page 1: Quick Install Guide
Quick Install Guide INTRODUCTION This SS2V70 70V 2-Zone 100-Watt Speaker Selector features two independent mono 70V 100-watt speaker zones, each with its own on/off switch and volume control knob. It has a single 2-conductor input and a pass-through output, allowing multiple speaker selectors to be daisy chained.
Page 2 Rear Panel 1. Zone 2 Speaker Output 3. Input From Amplifier 2. Zone 1 Speaker Output 4. Pass-Through Output POWER RATINGS Unlike ordinary speaker systems, which require complicated impedance calculations for multiple speaker arrays, constant voltage (70V) systems simply add the wattage ratings of each speaker together.
Page 3 3. Remove the ZONE 1 terminal block from the rear of the speaker selector. 4. Using a small flathead screwdriver, loosen the two screws in the terminal block. 5. Insert the stripped ends of one end of one of the speaker wires into the terminal block, taking care to match the polarity, then tighten the screws.
Page 4: Specifications
