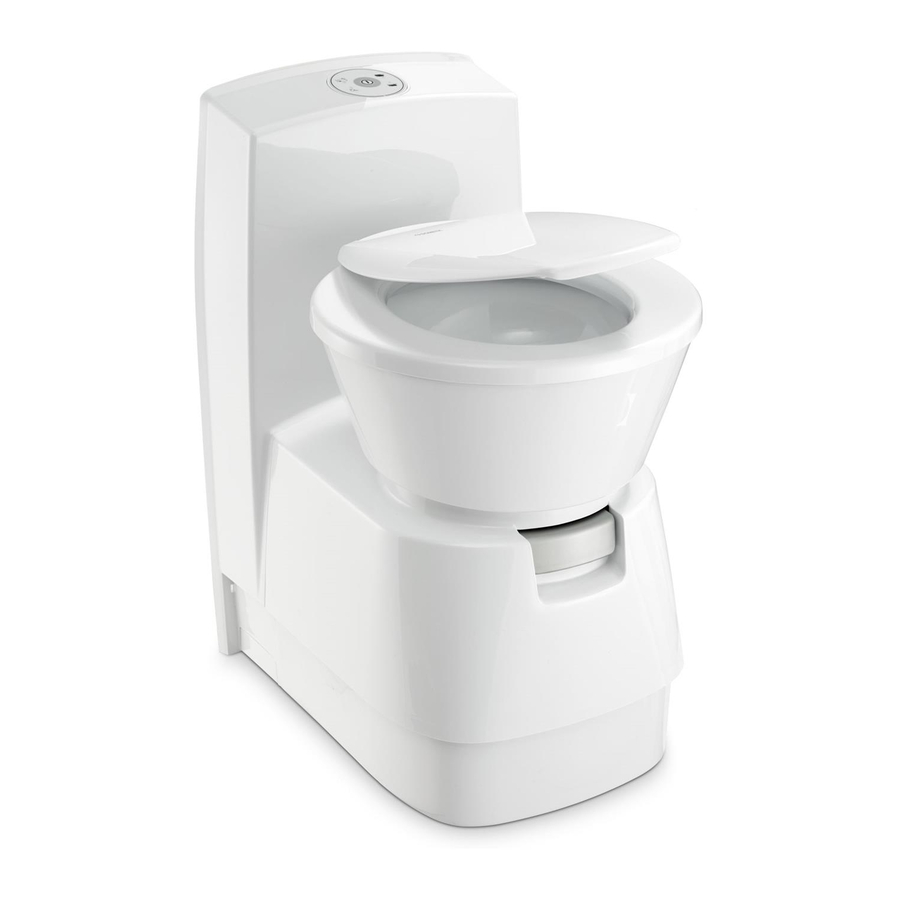

Cassette toilet for recreational vehicles
Hide thumbs Also See for CT4110:

Advertisement

Cassette toilet for recreational
EN
vehicles
Operating manual. . . . . . . . . . . . . . . . 2
Toilettes à cassette pour
FR
véhicules de loisirs
Notice d'utilisation . . . . . . . . . . . . . . 16
Inodoros de cassette para
ES
vehículos de tiempo libre
Instrucciones de uso . . . . . . . . . . . . 32
Sanitário de cassete para
PT
veículos de recreio
Manual de instruções . . . . . . . . . . . . 46
CT4110, CTS4110
"More information https://www.caravansplus.com.au"

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CT4110 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dometic CT4110

  • Page 1 Instrucciones de uso ... . 32 Sanitário de cassete para veículos de recreio Manual de instruções ... . 46 CT4110, CTS4110 “More information https://www.caravansplus.com.au"...
  • Page 2 Dometic Group is a customer-driven, world-leading provider of leisure products for the RV, automotive, truck and marine mar- kets. We supply the industry and aftermarket with a complete range of air conditioners, refrigerators, awnings, cookers, sanita- tion systems, lighting, mobile power equipment, comfort and safety solutions, windows, doors and other equipment that make life more comfortable away from home.
  • Page 3: Table Of Contents

    Table of contents 1.0 General ..........4 Introduction .
  • Page 4: General

    Introduction used in this manual You have made an excellent choice in selec- ting this Dometic cassette toilet. We are sure Warning notices that you will be satisfied with your new sanita- tion system in all respects. This toilet meets Warning notices are identified by symbols.
  • Page 5: Limitation Of Liability

    MLC code, if the art. Dometic reserves the right to make applicable. You will find this information on the changes at any time which are deemed to be toilet identification label.
  • Page 6: Description Of Model

    Safety instructionts / Description of model Description of Safety instructions model Intended use Model identification This toilet is designed for installation in recrea- Example: tion vehicles such as caravans or motorho- mes. The toilet is designed for a maximum CT S 4110 person weight of 130 kg (286.6 lb).
  • Page 7: Technical Data

    Description of model Technical data Description of components Supply voltage: 12 V DC Current consumption: max. 5 A with external pump. Dimensions: s. details in installation manual Operating temperature: 0°C up to + 50°C (32 °F up to +122 °F) Required pump output: minimum 7 l/min (1.85 US.gal./min) Inspection/Certification...
  • Page 8: Using The Toilet

    Before you use the toilette for the first time: Open the service door. Add Dometic tank treatment (available separately) via the spout into the cassette Unlock the cassette tank by pushing the tank in accordance with instructions for lock upwards.
  • Page 9: Control Panel

    Using the toilet Using the toilet Control panel When lifting the toilet seat, it locks in an approximately 2/3 position. Use a little more force if you want to open the seat fur- ther. Fig. 7 "Flush" button "Cassette tank removed" display "Fill fresh water tank"...
  • Page 10: Emptying The Cassette Tank

    Using the toilet Emptying the cassette NOTICE! tank Avoid turning the spout by more than 90°, as it may otherwise come loose. Empty the cassette tank when the level indica- tor LED lights up. The cassette tank has a capacity of 19 l (5.02 US.gal.).
  • Page 11: Winter Operation

    (1) = Tool /accessory Fig. 17 and the water supply system fully. Clean the toilet with Dometic toilet bowl cleaner. Press the flush button until there is no remaining water left in the pipes.
  • Page 12: Replacing The Fuse On The Control Panel

    Using the toilet Lift the control panel with a suitable tool and pull it out of the the tank case or the wall. The fuse (Fig. 23, automotive fuse: 7.5 A) is loca- ted on the bottom side of the control panel. Fig.
  • Page 13: Installation Of The Cassette Seal

    Using the toilet Fig. 24 Fig. 28 Fig. 25 Fig. 26 Fig. 29 Close the blade handle. Finally, install the support ring. Fig. 27 4.11.2 Installation of the cassette seal If it becomes necessary to replace the casset- te seal, pay attention to absolutely correct seating of the seal when installing the seal.
  • Page 14: Troubleshooting

    Using the toilet 4.12 Troubleshooting Fault Possible cause Action you can take Replace fuse (see chpt. 4.10) Check electrical terminals and Flushing no longer functions Fuse defective connections in the case of repeated failure Replace seal on the blade Cassette leaking Seal worn (see chpt.
