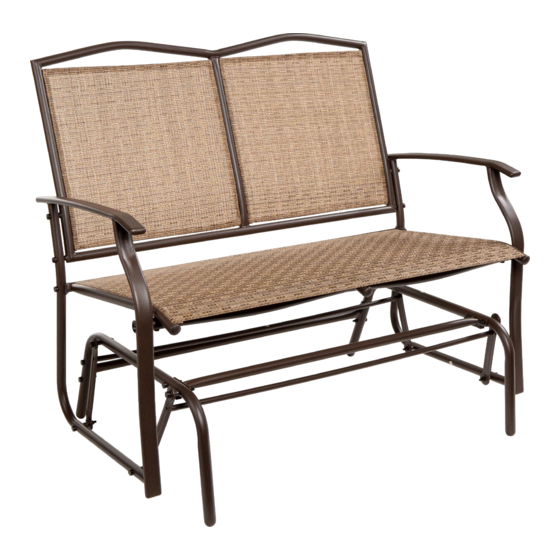

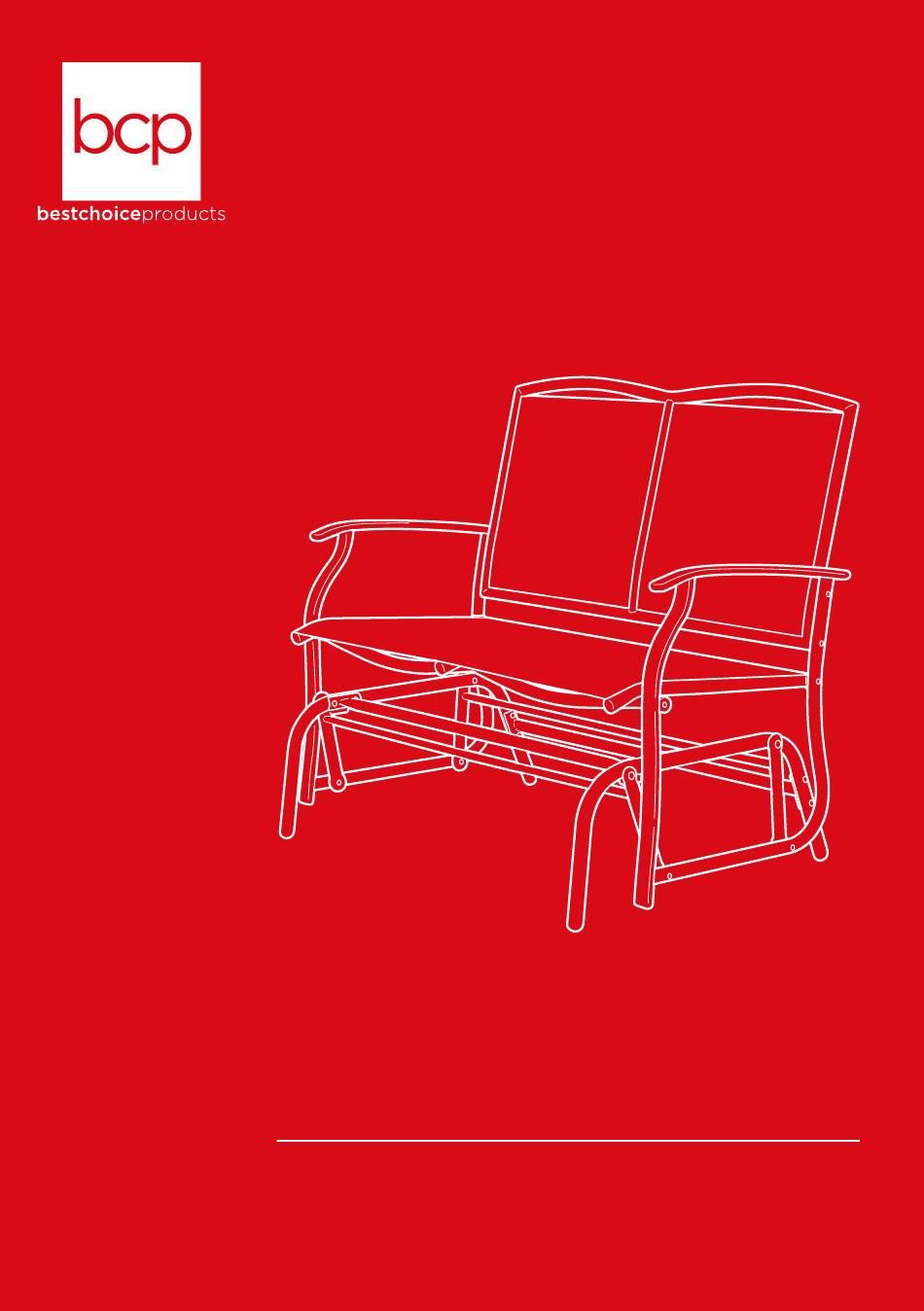

- Page 1 INSTRUCTION MANUAL Rocking Glider Bench SKY3478 Ver. 2...
- Page 2 NOTICE Please retain these instructions for future reference. • Please do not exceed the weight limitations of this item. • Do not stand on or use any part of this item as a step ladder. • Firmly secure all bolts, screws and knobs before use. •...
- Page 3 PARTS LEGS GLIDER SUPPORT GLIDER FRAME 2 PCS 2 PCS 2 PCS RIGHT SIDE LEFT SIDE BACKREST 1 PC 1 PC 1 PC SEAT 1 PC...
- Page 4 PRODUCT ASSEMBLY Attach a part B glider support to two part A legs with four part 3 bolts, eight part 7 washers, and four part 8 nuts. Attach another part B glider support to the legs with two part 3 bolts, four part 7 washers, and two part 8 nuts.
- Page 5 PRODUCT ASSEMBLY Attach a part C glider frame with two part 4 bolts, four part 7 washers, two part 6 spacers, and two part 8 nuts. Attach another part C glider frame with two part 5 bolts, four part 7 washers, two part 6 spacers, and two part 8 nuts.
- Page 6 PRODUCT ASSEMBLY Attach the back of the part F seat to part D1 right side and part D2 left side with two part 2 screws and two part 7 washers. Attach the front of the seat with two part 1 screws, two part 7 washers, and two part 9 concave washers.
- Page 7 PRODUCT ASSEMBLY Attach the glider assembly to the seat sides with four part 4 bolts, eight part 7 washers, four part 6 spacers, and four part 8 nuts. NOTE: Place four part 10 end caps and four part 11 nut caps on exposed hardware.
- Page 8 HELP CENTER Question about your product? We're here to help. Visit us at: help.bestchoiceproducts.com CHAT Chat Support Product Inquiry Orders FAQ Product Assembly Returns & Refunds PRODUCT WARRANTY INFORMATION All items can be returned for any reason within 60 days of the receipt and will receive a full refund as long as the item is returned in its original product packaging and all accessories from its original shipment are included.
