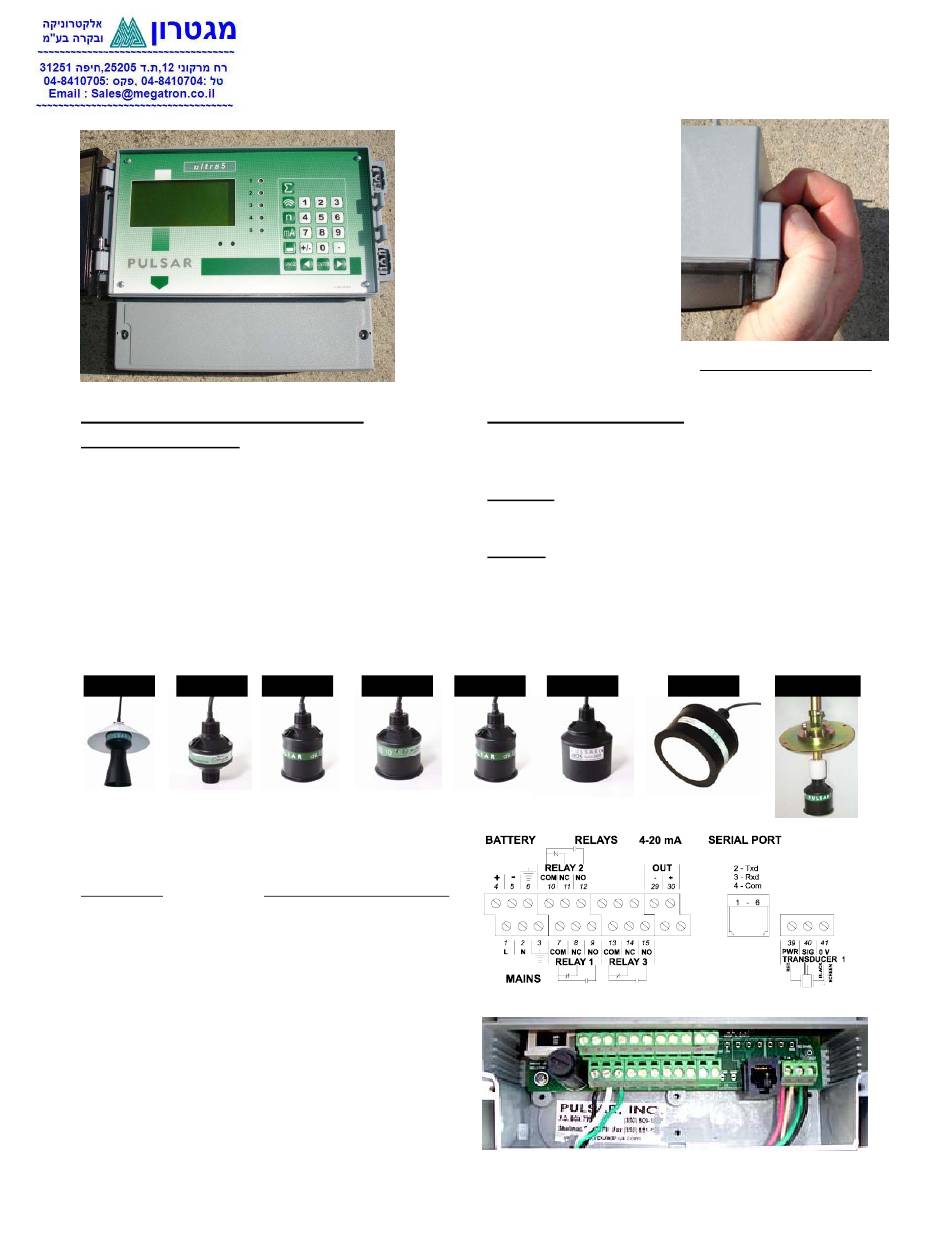

TRANSDUCER INSTALLATION
LIQUIDS and SOLIDS
Mount the transducer away from any obstructions, fal-
ling water/solids, rough walls, pumps, switches, etc...
Visualize looking down the echo path of the transducer
and seeing a nice clear shot (2'+ dia.) to the very bot-
tom during fill and empty cycles.
Ensure the maximum level does not come within the
minimum dB blanking distance.
Confirm the inside of the standpipe is smooth and does
not have any protrusions at the weld.
Do not hang the transducer by the cable.
Typically, mount the dB transducer 1/2 the tank radius.
Mach3
dB 3
0-8 ft
.5-10 ft
TRANSDUCER WIRING
TERMINAL
RED
= POWER
WHITE = SIGNAL
BLACK &
GREEN
= 0V
Use any standard, 2 conductor/shielded pair for splic-
ing (recommend 18 AWG gauge, UV protected)
Use 16 AWG gauge if going 500 - 3,000 ft cable run.
Transducer shield is required - do not cut or float!
Battery is actually the 24VDC terminals.
If I.S. Zone 0 is required, consult factory for details.
Pulsar, Inc., PO Box 799, Shalimar, FL 32579 Phone: (850) 609-1777 Fax: (850) 651-4777 support@pulsar-us.com
Pulsar Quick Start Manual - Ultra 5
Congratulations on your purchase
of a Pulsar Ultra 5!
This quality system has been developed
with the latest digital ultrasonic tech-
nology for liquids, slurries, and solids.
No more noise and beam angle issues.
It provides non-contacting level, vol-
ume, advanced pump control, differen-
tial level, and open channel flow with 5
user-defined relays. Comes standard
with 110VAC and 24VDC with an iso-
lated 4-20 mA output.
dB 6
dB 10
1-20 ft
1-33 ft
IF SPLICING (shielded pair)
RED
= BLACK
WHITE = WHITE
BLACK &
GREEN
= SHIELD
TROUBLESHOOTING
(Call Pulsar Technical Support for Special Service
Passcode and Instructions 850-609-1777.)
LIQUIDS
Dome top tanks will require Gain & Algorithm change.
If reading false level, use P21 and set true distance
SOLIDS
Consult factory if the silo is extremely dusty—we can
increase the return signal strength (even during fill).
DATEM may map-out the true echo. Use P21 to set
true distance and turn "Update Datem" off!
If acoustically noisy, change Algorithm to Largest.
dB 15
dB 25
1.7-50 ft
2-82 ft
Above wiring diagram is on the back of terminal cover.
Press to close enclosure!
dB 40
Aiming Kit
3-132 ft
