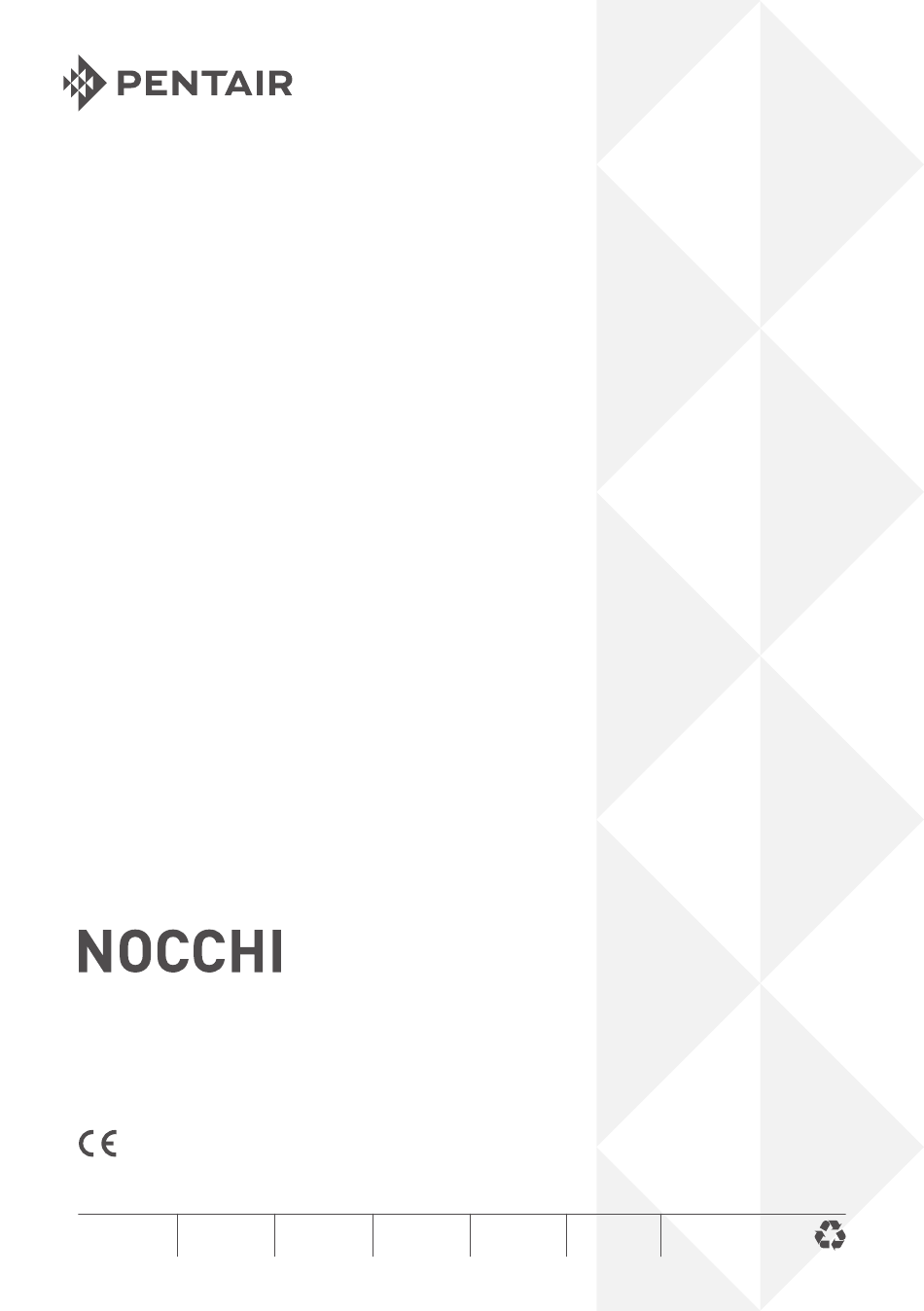

- Page 1 ISTRUZIONI ORIGINALI IN LINGUA ITALIANA PAGE PAGE PAGE PAGE PAGE PAGE PAGE...
-
Page 2: Table Of Contents
SUMMARY CHAPTER DESCRIPTION PAGE 1.1 Documentation supplied 1.2 Ownership of information 1.3 Machine identification data 1.4 EC compliance declaration 1.5 General safety information GENERAL INFORMATION 1.6 Conventions 1.7 Recommended use 1.8 Non recommended use 1.9 Warranty 1.10 Assistance 1.11 How to use the documentation supplied 2.1 Description DESCRIPTION 2.2 Technical characteristics... -
Page 3: Documentation Supplied
It is forbidden to reproduce in whole or in part this manual without the explicit authorisation of PENT AIR INTERNATIONAL Sarl. The information contained in this manual is related only to the machines indicated in section “Product Specifications”. PENTAIR INTERNATIONAL reserves the right to make the changes deemed necessary to the machines not listed in the “Machine identification data”. -
Page 4: General Safety Information
When starting the electropump (by inserting the plug into the socket and/or turning the main switch to on), always wear shoes and make sure that the hands are dry. NOTE Failure to follow the safety procedures and precautions contained in the documentation supplied shall relieve PENTAIR INTERNATIONAL from all liability thereof. -
Page 5: General Information
NOTE PENTAIR INTERNATIONAL shall not be liable for accidents if the machine is used from non qualified or unauthorised personnel and originating from the failure to follow the instructions contained in this manual and present on the... -
Page 6: Conventions
Machine: elettropompe specificate in • Authorised technician: • Specialised technician: person "Scheda prodotto" person authorised by PENTAIR authorised to perform even the INTERNA TIONAL to perform even the operations not specifically indicated operations not specifically indicated in this manual after being authorised... -
Page 7: Non Recommended Use
Corrosive fluids crude oil • Sea water For special uses, contact our technical department 1.8.1 LIABILITY ARISING FROM NON RECOMMENDED USE NOTE PENTAIR INTERNATIONAL shall not be liable for damages to people, animals or property deriving from non recommended use... -
Page 8: Warranty
1.10 ASSISTANCE WARNNG If the pump has been used with noxious or toxic fluids, the pump will be classified as polluted and PENTAIR INTERNATIONAL Sarl will have the right to refuse offering its assistance for the pump. For all assistance requests, contact: PENTAIR INTERNATIONAL Sarl –... -
Page 9: Technical Characteristics
2.2 TECHNICAL CHARACTERISTICS • Dimensions and weights of machines: • Electric data: • Pressure: See "Product Specifications”, See "Product Specifications”, maximum operating pressure: 6 bar paragraph “Dimensions and weights” paragraph “Electric suply” and (90°C) or 10 bar (50°C) identification nameplate 2.2.1 NOISE The maximum continuous noise equivalent to weighed noise A of acoustic vibrations generated by the machine: 82 dB (A) 2.2.2 LIABILITY... -
Page 10: Storage
3.3 STORAGE 3.3.1 CHARACTERISTICS OF THE STORAGE AREA The storage area should have the following physical characteristics: • Sufficient extension to contain the • Flat and horizontal resting surface • Protection against accidental impacts machine and the packing, when • Resting surface with a capacity above present, and to enable its lifting by the weight of the machines stored... - Page 11 ENVIRONMENTAL CONDITIONS • Acceptable temperature range: • Acceptable relative humidity range: • Protection from atmospheric agents +7 °C ÷ +50 °C 30 ÷ 90% CONNECTION The pipes used to connect the machine should have the following characteristics: • Minimum diameters with dimensions •...
-
Page 12: Installations
SUPPORTING SYSTEM The machine supporting system can correspond to one of the following configurations: • The machine can be connected to • The machine can be connected to a • The machine can be connected to a fixed pipe able to maintain the pipe and rested on a base having the a pipe and fixed, by means of nuts, machine in position... -
Page 13: Priming
A- If the direction of rotation complies with the direction of the rotation indicated by the arrows shown on the machine head, the connections are correct B- If the direction of rotation is opposed to the one shown by the arrows present on the machine head, perform the following operations: •... -
Page 14: Start-Up
4.1.1 MACHINES INSTALLED BELOW THE WATER LEVEL To fill a machine below the water level, perform the following operations: • Loosen the priming cap • Slowly open the gate on the suction • Close the gate on the delivery line line When the fluid starts to exit from the priming cap, preform the following operations: •... -
Page 15: Checking The Frequency Of Starts And Stops
4.3 CHECKING THE FREQUENCY OF STARTS AND STOPS To check the frequency of starts and stops, perform the following operations (Check the operation of the machine for an hour): If the number of starts/stops is above 40, adjust the control equipment in order to reduce the frequency. WARNING Always check that the machine is filled. -
Page 16: Extraordinary Maintenance
Extraordinary maintenance operations performed after problems, failures, breakage or technical updates should be performed only by authorised or specialised technicians. NOTE PENTAIR INTERNATIONAL declines any liability and cancels all warranty contracts in presence of: • Operations not documented in this manual and performed on the machine. -
Page 17: Machine Disabling
NOTE PENTAIR INTERNATIONAL shall not be liable of parts of the machine are recycled or re-used. 7.2 RESIDUAL RISKS AFTER DISABLING WARNING The machine has been manufactured with non biodegradable materials. The machine should be dismantled only in a deposit equipped for these operations.
