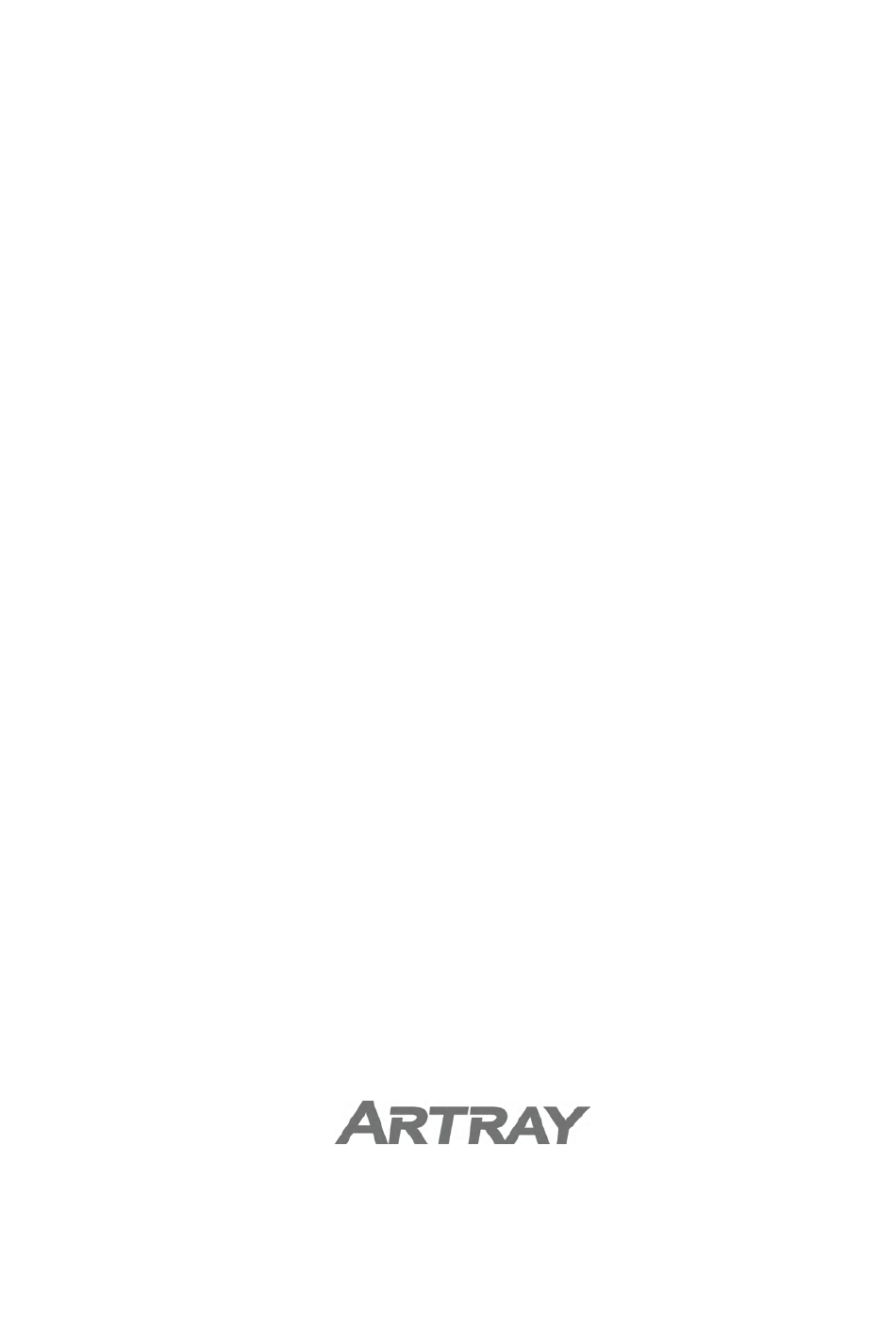

April 9, 2019
Ver1.00
Camera Link output
Near infrared (InGaAs) camera
ARTCAM-130SWIR-CL
INSTRUCTION BOOKLET
ARTRAY CO., LTD.
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARTCAM-130SWIR-CL and is the answer not in the manual?

Questions and answers

Related Manuals for ARTRAY ARTCAM-130SWIR-CL

Summary of Contents for ARTRAY ARTCAM-130SWIR-CL

  • Page 1 April 9, 2019 Ver1.00 Camera Link output Near infrared (InGaAs) camera ARTCAM-130SWIR-CL INSTRUCTION BOOKLET ARTRAY CO., LTD. - 1 -...

  • Page 2: Table Of Contents

    Contents Attention..................................- 3 - Introduction..................................- 6 - Main Features ................................- 6 - The Product..................................- 6 - Setup....................................- 7 - Camera connection method (connection example)................... - 7 - 5.1. When using on a desktop PC........................- 7 - 5.1.1.

  • Page 3: Attention

    1. Attention ■ About this manual 1．Before using the camera, please read this manual thoroughly. 2．Please keep this manual reachable and always refer to the contents when needed. 3．Please contact us if the manual is lost or damaged. We will provide a replacement. 4．We cannot guarantee the safety of improper uses of the camera.
  • Page 4 ■For Safe Use Warning ●In following circumstances, please stop using the product and turn off the power immediately to prevent the risks of fires and electric shocks. If the product is defective, please contact us for repair or exchange. For your safety, please do not disassemble, modify or repair the camera on your own.
  • Page 5 For more details, please refer to the sites below: Hardware Warranty: http: //www.artray.us/download/artray_warranty.pdf ■Dispose To dispose this product, please return the camera to us. If you decide to dispose the camera without returning it us, please follow related regulations and have the camera disposed as an industrial waste.

  • Page 6: Introduction

    2. Introduction This manual is to identify the specification of ARTCAM-130SWIR-CL, NIR camera adopts InGaAs (Indium gallium arsenide) sensor with Camera Link interface. 3. Main Features  NIR Detection with High Sensitivity The InGaAs sensor can detect radiation invisible to human eyes and CCD/CMOS cameras in the wavelength range between 400 nm to 1700 nm bond.

  • Page 7: Setup

    5. Setup 5.1. Camera connection method (connection example) 5.1.1. When using on a desktop PC 5.1.2. When using on a notebook PC *There is an unique port of CameraLink channel used since this camera operates with CameraLink - Base Configuration. For the connector of this camera is SDR-26pin, please use the supported cable.

  • Page 8: Specifications

    6. Specifications 6.1. Camera Specification 6.1.1. Camera specification list Item Sensor Type 1.3 M pixels InGaAs Image Sensor Interface Camera Link (Base Configuration) Number of output bits 8 bits / 12 bits / 14 bits (valid 13 bits) Frame Rate 30 fps (8 bits / 12 bits / 14 bits common) Shutter Speed 1/1000000～1.04857sec...

  • Page 9: External Dimensions

    6.1.2. External Dimensions 6.1.3. Sensor Surface Perimeter Dimension - 9 -...

  • Page 10: Sensor Specification (Based On Sensor Manufacturer's Data)

    6.2. Sensor specification (based on sensor manufacturer's data) 6.2.1. List of sensor specifications Item Image pickup device SCD InGaAs sensor Cardinal1280 Number of effective pixels 1280(W) x 1024(H) Number of output pixels 1280(W) x 1024(H) Pixel Size 10[μm] x 10[μm] 12.8[mm] x 10.24[mm] Imaging area (Diagonal 17.173 mm, equivalent to approximately 1 inch)

  • Page 11: Camera Function

    6.3. Camera function 6.3.1. Camera function list The functions of the camera are as follows. Default Item Setting range Remarks value Reset Initialize the camera Changing the shutter speed Shutter Speed 1～1000000 Shutter speed [μsec] = set value * 100 Cell capacity selection of sensor Analog Gain Low/Mid...

  • Page 12: Required Pc Spec

    ●Camera Link input board is equipped. (PIXCI-EB1, manufactured by EPIX, Inc., is recommended.) ●CPU: Intel core i5 or higher ●Memory: ≧ 512 MB(1 GB or more recommended) ●OS: ≧ Windows 7 ARTRAY CO., LTD. 1-17-5 Kouenjikita, Suginami-ku, Tokyo 166-0002 Japan Tel: +81-3-3389-5488 Fax: +81-3-3389-5486 Email: sales@artray.us...
