Ada Ez Pro Quick Start Manual

Push-side operator
Hide thumbs Also See for Pro:

Advertisement

Quick Links

Download this manual
Quick-Start Guide

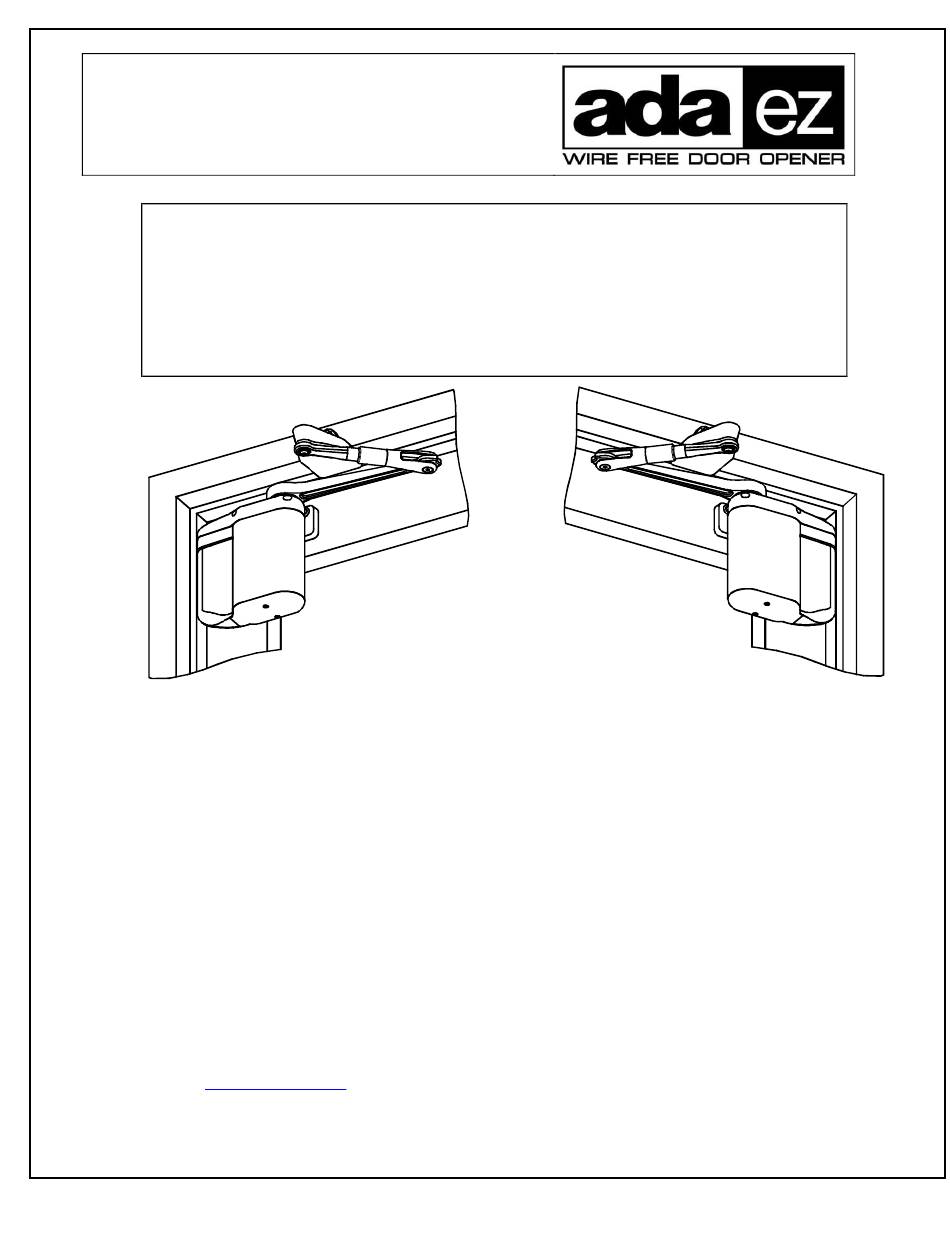

PUSH-SIDE APPLICATION
(LEFT HAND DOOR SHOWN)
This manual provides quick-reference instructions for installing and operating the push-side ADA EZ swing
door operator. Prior to performing these instructions thoroughly review the following information in
document number 70002, "ADA EZ Pro Installation and Operating Instructions:"
System Description
•
Prerequisites
•
Precautions
•
Controls and indicators
•
Installing the optional plug-in transformer
•
Installing the pushbutton switches
•
Linking the RF pushbuttons
•
Troubleshooting recommendations
•
To obtain the latest manual and template revisions or to view installation and programming videos
go to www.ADAEZ.com. For technical support call (877) 232-3987.
© 2012 ADA EZ. ALL RIGHTS RESERVED.
ADA EZ Pro
Push-Side Operator Quick-Start Guide
Rev. B, 10/30/12
700402
PUSH-SIDE APPLICATION
(RIGHT HAND DOOR SHOWN)
Detailed operator programming instructions
•
Replacing the battery pack fuse
•
Customizing the operator settings
•
Installing door decals
•
Detailed closeout instructions
•
Wiring
•
Replacement parts
•
Adjusting door spring tension
•
700402
Rev. B, 10/30/12
1 of 15

Advertisement

loading
Need help?

Need help?

Do you have a question about the Pro and is the answer not in the manual?

Questions and answers

Related Manuals for Ada Ez Pro

Summary of Contents for Ada Ez Pro

  • Page 1 (LEFT HAND DOOR SHOWN) (RIGHT HAND DOOR SHOWN) This manual provides quick-reference instructions for installing and operating the push-side ADA EZ swing door operator. Prior to performing these instructions thoroughly review the following information in document number 70002, “ADA EZ Pro Installation and Operating Instructions:”...

  • Page 2: Table Of Contents

    Figure 1. Installing the Operator Mounting Template ALIGN TEMPLATE WITH HINGE CENTERLINE TOP VIEW - BUTT HINGE HUNG DOOR ALIGN TEMPLATE WITH PIVOT CENTERLINE TOP VIEW - OFFSET PIVOT EZ045 700402 Rev. B, 10/30/12 2 of 15 © 2012 ADA EZ. ALL RIGHTS RESERVED.

  • Page 3: Mounting The Door Arm Pivot Bracket

    The edge of the bracket will be between ″ (15.87 mm) and 1 ″ (38.1 mm) from the face of • door. Figure 2. Mounting the Door Arm Pivot Bracket 700402 Rev. B, 10/30/12 3 of 15 © 2012 ADA EZ. ALL RIGHTS RESERVED.
  • Page 4 INSTALL and TIGHTEN the three #14 x 1 ¼″ wood screws (minimum) securing the door arm pivot bracket to the underside and face of the frame header. Figure 3. Mounting the Door Arm Pivot Bracket 700402 Rev. B, 10/30/12 4 of 15 © 2012 ADA EZ. ALL RIGHTS RESERVED.

  • Page 5: Installing The Door Arm Pivot

    ENSURE that the dimension from the face of the door to the centerline of the door arm mounting hole is 6 ″ (161.92 mm). 1.3.3 TIGHTEN the four set screws securing the door arm pivot to the door arm pivot bracket. 700402 Rev. B, 10/30/12 5 of 15 © 2012 ADA EZ. ALL RIGHTS RESERVED.

  • Page 6: Installing The Operator Mounting Bracket And Cover

    Installing the Operator Mounting Bracket and Cover 1.4.1 Refer to Figure 5, and DETERMINE the proper operator mounting bracket location. Figure 5. Determining the Operator Mounting Bracket Location 700402 Rev. B, 10/30/12 6 of 15 © 2012 ADA EZ. ALL RIGHTS RESERVED.
  • Page 7 1.4.12 REMOVE the bottom cover from the operator. 1.4.13 SLIDE the battery pack from the operator and REMOVE the battery pack. 1.4.14 REMOVE the dress cover from the operator. 700402 Rev. B, 10/30/12 7 of 15 © 2012 ADA EZ. ALL RIGHTS RESERVED.
  • Page 8 1.4.16 INSTALL and TIGHTEN the two ¼-20 X 1½″ socket head capscrews securing the operator to the operator mounting pins. Figure 6. Installing Operator Mounting Bracket Cover OPERATOR MOUNTING BRACKET COVER EZ021 700402 Rev. B, 10/30/12 8 of 15 © 2012 ADA EZ. ALL RIGHTS RESERVED.

  • Page 9: Installing The Door Arm

    With the door arm touching the face of the door, TIGHTEN the door arm coupling screws evenly (one quarter turn at a time) until fully tight. 700402 Rev. B, 10/30/12 9 of 15 © 2012 ADA EZ. ALL RIGHTS RESERVED.

  • Page 10: Installing The Optional Plug-In Transformer

    MOUNT one end link in the area behind or next to the battery pack. • MOUNT the other end link on or next to the door frame. • 700402 Rev. B, 10/30/12 10 of 15 © 2012 ADA EZ. ALL RIGHTS RESERVED.
  • Page 11 END LINK FROM FRONT ROUTE WIRE THROUGH EXIT AT BOTTOM DETAIL A SEE DETAIL A 24VDC (POSITIVE) INPUT SIGNAL INPUT GROUND (COMMON) INPUT EZ061 CHARGER INPUT 700402 Rev. B, 10/30/12 11 of 15 © 2012 ADA EZ. ALL RIGHTS RESERVED.
  • Page 12 CONNECTOR PLUG EZ060 1.6.4 Refer to Figure 10, and VERIFY that the LED indicator lights GREEN. Figure 10. Verifying that the LED Illuminates LED INDICATOR ADAEZ60 700402 Rev. B, 10/30/12 12 of 15 © 2012 ADA EZ. ALL RIGHTS RESERVED.
  • Page 13 1.6.5 Refer To Figure 11, and INSTALL receptacle cover onto battery pack. Figure 11. Plugging the Receptacle Cover onto the Battery Pack EZ062 700402 Rev. B, 10/30/12 13 of 15 © 2012 ADA EZ. ALL RIGHTS RESERVED.

  • Page 14: Programming The Operator

    The LED shall illuminate green once data has been stored for this parameter. • 1.7.6 With the door in the fully closed position, PRESS the “ENTER” pushbutton. The following shall occur: 700402 Rev. B, 10/30/12 14 of 15 © 2012 ADA EZ. ALL RIGHTS RESERVED.

  • Page 15: Initializing The Remote Control

    PRESS and HOLD the “RESET” pushbutton. PRESS and HOLD the “ENTER” pushbutton. RELEASE the “RESET” pushbutton. 1.7.9 If further door adjustments are necessary, refer to document number 70001, “ADA EZ Installation and Operating Instructions,” and ADJUST as needed. Initializing the Remote Control 1.8.1 To link an RF switch with a door controller, PERFORM the following: PRESS and HOLD the “LEARN”...
