Installing ACP
8

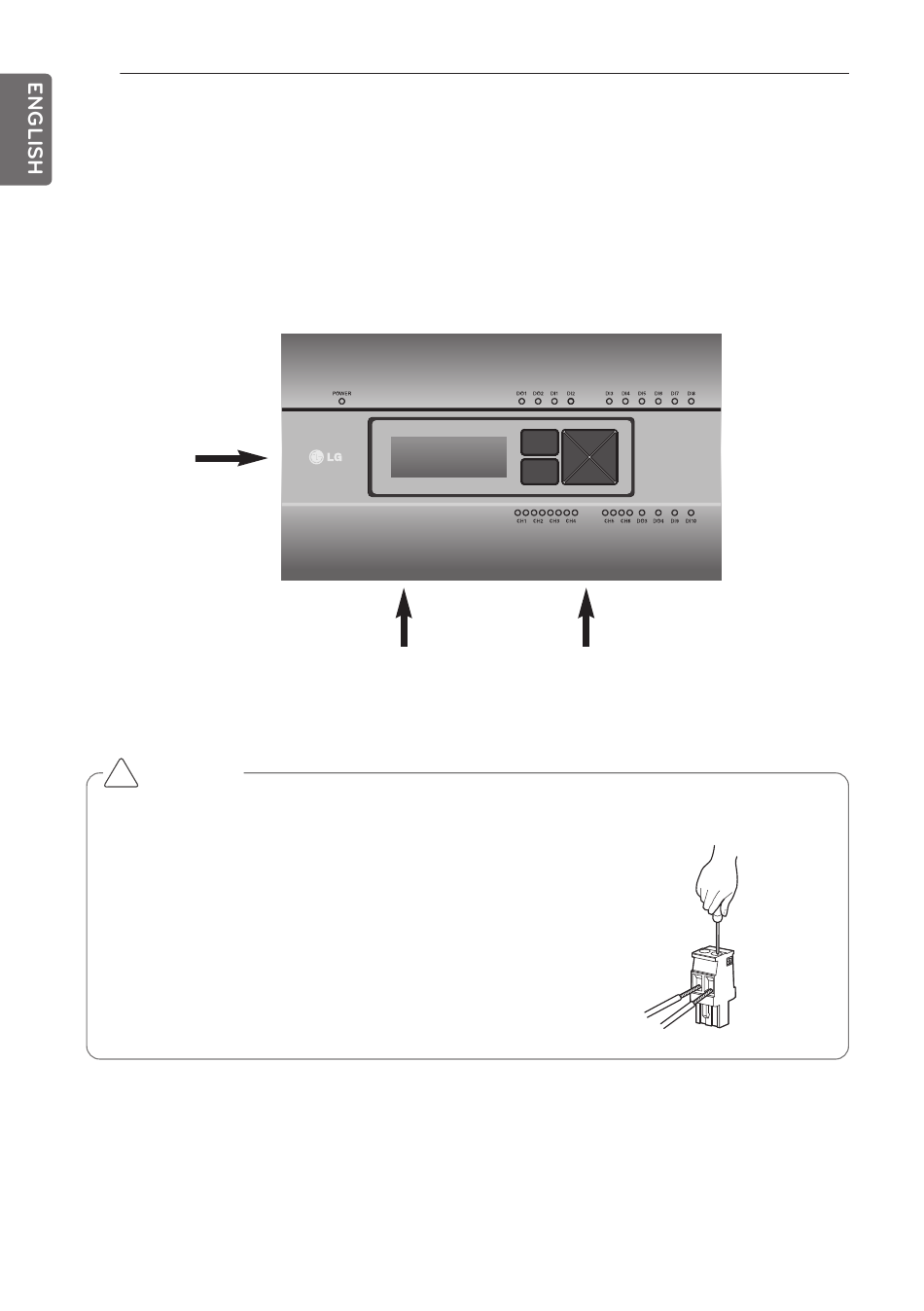

Installing ACP and connecting cables

After setting PI485, the ACP shall be installed in an adequate place, and RS-485 cable shall be
connected for the communication with PI485.
And, Ethernet cable (LAN cable) shall be connected for the connection with internet or AC Man-
ager.
To fix the ACP, the following 2 methods may be used.
Install in DIN RAIL or fix to the wall considering the environment of the site.
Power
CAUTION
!
If four times the power connector for the connection, as shown by using the right connec-
tion, but please note that an electric shock.
Use the designated parts must be connected to a power source.
※ Connector manufacturers: PHOENIX CONTACT
PartNo: MVSTBR 2,5 / 2-ST-5, 08 2P 5.00MM
PQCPC22A0
LAN cable
RS-485 cable
