- Page 1 V1.1 04/18/10 USER MANUAL SEMI-AUTOMATIC WELDING inverters DUALMIG 210 S3 210 S4 DUALMIG...
- Page 2 WARNING! Before installing and commissioning, please read these instructions 1. GENERAL Commissioning and operation of the device can be made only after a careful reading of this handbook. Due to the continuous development of technical equipment, some of its functions can be modified and operation may differ in detail from the description in the manual.
- Page 3 Poisoning prevention vapors and gases evolved at the time of welding of coatings for welding electrodes and evaporation of metals: • Use ventilation and exhaust installed in limited air exchange. • Blow fresh air when working in a confined space (tanks) •...
- Page 4 It is a time-saving solution for the need for welding different materials or different thicknesses up casual use of wires. 4. SPECIFICATIONS 4.1 welder DUALMIG 210 S3 DUALMIG 210 S4 Power supply: AC 230V 50Hz Rated welding current / cycle MMA: 180 A;...
- Page 5 After the correct arc is lit button can be released and welding lead to the slow button. To complete the welding press and release the button on the handle. DUALMIG 210 S3 DUALMIG 210 S4...
- Page 6 5. PREPARING TO WORK EQUIPMENT 5.1 CONNECTION shielding gas 1. Attach the bottle and secure it against tipping. 2. Remove the cylinder valve briefly to remove any impurities. 3. Install the regulator on the cylinder. 4. Connect the hose from the regulator welder. 5.
- Page 7 6. DESCRIPTION OF FUNCTION SWITCHES AND DIAL 6.1 DUALMIG 210 S3 1. The display of the welding current (MMA, TIG Lift). 12. The display of the welding voltage (MIG). 13. LED thermal protection. 2. The wire feed control button. 14. The power switch.

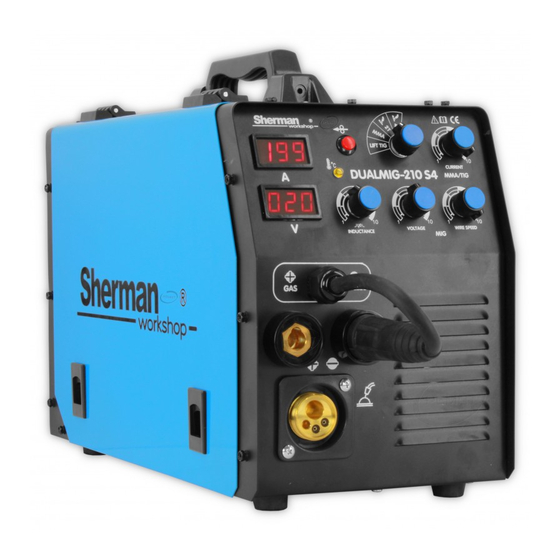

- Page 8 6.2 DUALMIG 210 S4 1. The display of the welding current (MMA, TIG Lift). 8. Plug the switch polarity. 9. EURO socket. 2. The wire feed control button. 10. Slot -. 3. Switch welding methods. 11. Socket +. 4. Welding current regulator (MMA, TIG Lift). 12.
- Page 9 8.1.2 Setting welding parameters 1. A method of welding switch (3) to position MMA. The second knob (4) to an appropriate welding current. 8.1.3 arc Initiation 1. Touch electrode to the workpiece, and short rub tear. 2. In the event of initiation of the arc electrodes, wherein the sheath when solidified, creates a non-conductive slag, the pre-clean the tip of the electrode by repeatedly impact against a hard surface until the metal in contact with the work piece.
- Page 10 8.3.1.3 Welding type handle Spool Gun (optional) Welder DUALMIG 210 S3 has the ability to handle the type of application Spool Gun, which is mounted at the mini wire feeder. In order to handle such a welding proceed as in section 8.3.1.1 or 8.3.1.2, and additionally plug control handle socket (20) and the switch-type the handle (21) in the feeder chamber to position 8.3.2 Setting welding parameters...
- Page 11 After the power indicator light switching power Check the fuses on the network connection supply is not lit No power supply Wait a few minutes until the LED goes out and LED is overheating The device has been overheated. continue welding. The fan was blocked folded cover The fan is not working Straighten fan cover...
- Page 12 Damage resulting from the welding operation in unsuitable conditions and failure of recommendations for maintenance are not covered by warranty repairs. 12 WIRING DIAGRAM 12.1 DUALMIG 210 S3...
- Page 13 12.1 DUALMIG 210 S4 13. INSTRUCTION STORAGE AND TRANSPORT The device should be stored at -10 ° C to + 40 ° C and relative humidity 80% free of corrosive fumes and dusts. Transportation of packaged devices should be covered means of transport. For transport the packaged unit must be secured against slipping and ensure the correct position.
- Page 14 14. COMPLETE SPECIFICATION 1. Welding source 1 piece. 2. MIG TW-15 1 piece. 3. Earth cable with a clamp 1 piece. 4. Manual 1 piece. 5. Packaging 1 piece. 15. Warranty Guarantee granted for a period of 12 months for business entities but excluding claims related to or guarantee of 24 months for the consumer from the date of sale.
-
Page 15: Declaration Of Conformity
Cross 3 Declare that the said product: semi-automatic welding machine Trade name: DUALMIG 210 S3 210 S4 DUALMIG Type: S3 MIG 200 MIG 200 S4 Manufacturer's trademark: to which this declaration relates complies with the following directives of the European Union and...
