Baseband Connections

The SC5313A has four baseband output ports, comprised of differential in-phase (I+ and I-) and
differential quadrature (Q+ and Q-) outputs. Nominal differential output impedance is 100 Ω. The
demodulator can also be configured for single-ended or differential IF output. When configured for
single-ended operation, it is recommended to terminate the other half of the differential pair using a
50 Ω terminator. All baseband connectors are MCX female.
4

Communication Connection

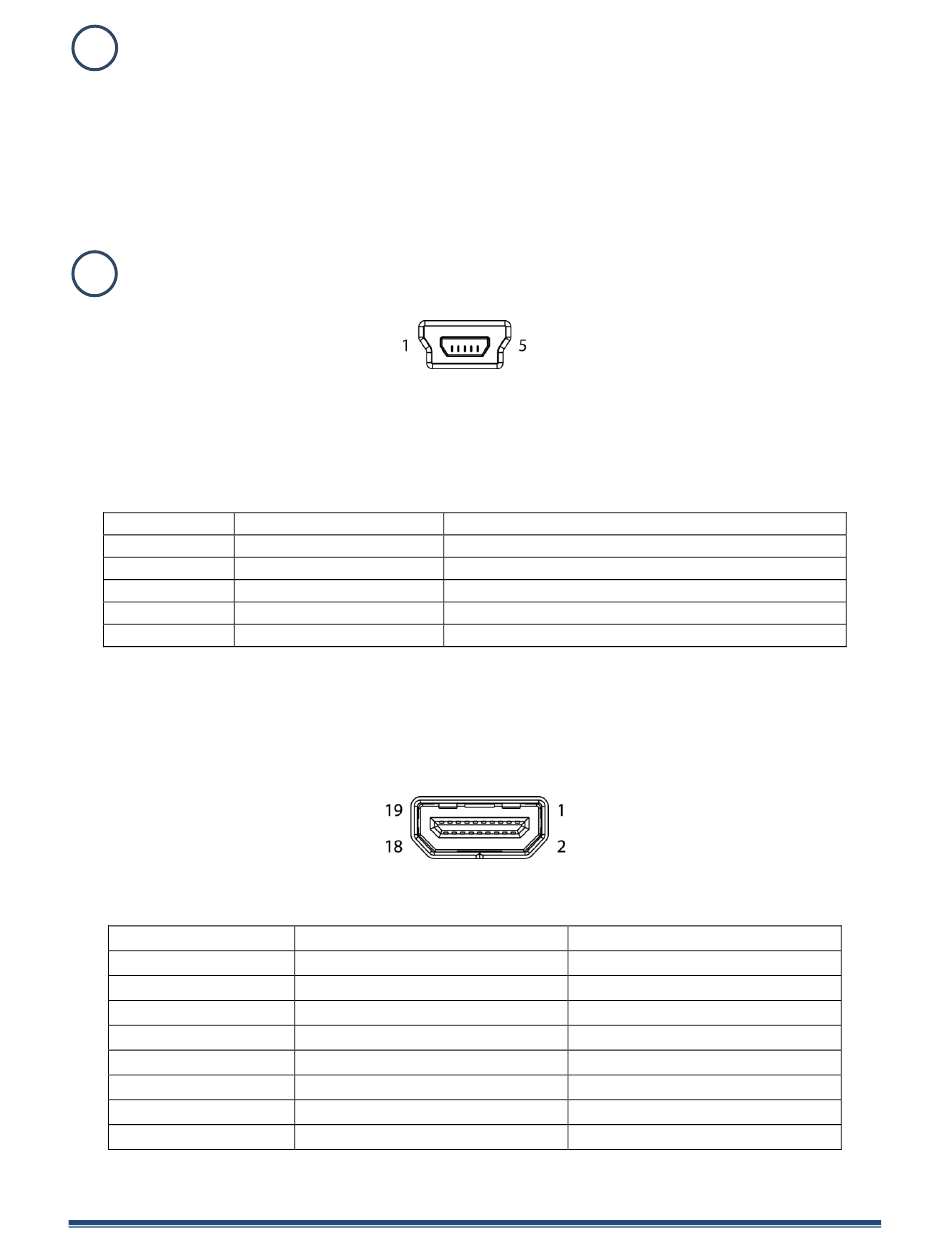

The SC5313A uses a mini-USB Type B connector for primary communication with the device using the
standard USB 2.0 protocol found on most host computers. The pinout of this connector, viewed from
the front of the module, is listed in Table 1.
Table 1. Pinout of the SC5313A USB communication connector.
Pin Number
1
2
3
4
5
The user can also communicate with the device through the micro-HDMI port. Depending on the
product version ordered, this connector provides either the SPI or RS-232 communication path. The
pinout of this connector, viewed from the front of the module, is listed in Table 2.
Table 2. Pinout of the SC5506A micro-HDMI connector for either SPI or RS-232 communication.
Pin Number
3
5
9
11
15
17
4, 7, 10, 13, 16
2, 8, 12, 14, 18, 19
SC5313A Operating & Programming Manual
USB Function
VBUS
D -
D +
ID
GND
SPI Function
MISO
–
MOSI
CS
SRDY
CLK
GND
NC
Rev 1.0.2
Description
Vcc (+5 Volts)
Serial data
Serial data
Not used
Device ground (also tied to connector shell)
RS-232 Function
TxD
RTS
RxD
CTS
–
CLK
GND
NC
