Getting Started; Unpacking; Verifying The Contents Of Your Shipment; Setting Up And Configuring The Sc5313A - SIGNALCORE SC5313A Operating And Programming Manual

G
E T T I N G

Unpacking

All SignalCore products ship in antistatic packaging (bags) to prevent damage from electrostatic
discharge (ESD). Under certain conditions, an ESD event can instantly and permanently damage several
of the components found in SignalCore products. Therefore, to avoid damage when handling any
SignalCore hardware, you must take the following precautions:

Ground yourself using a grounding strap or by touching a grounded metal object.

Touch the antistatic bag to a grounded metal object before removing the hardware
from its packaging.
!

Never touch exposed signal pins. Due to the inherent performance degradation
caused by ESD protection circuits in the RF path, the device has minimal ESD
protection against direct injection of ESD into the RF signal pins.

When not in use, store all SignalCore products in their original antistatic bags.
Remove the product from its packaging and inspect it for loose components or any signs of damage.
Notify SignalCore immediately if the product appears damaged in any way.

Verifying the Contents of your Shipment

Verify that your SC5313A kit contains the following items:
Quantity Item
1 SC5313A IQ Demodulator
1 USB Flash Drive Installation Software (may be combined with other products onto a single drive)
1 Getting Started Guide

Setting Up and Configuring the SC5313A

The SC5313A is a core module-based IQ demodulator with all I/O connections and indicators located on
the front face of the module as shown in Figure 1. Each location is discussed in further detail below.

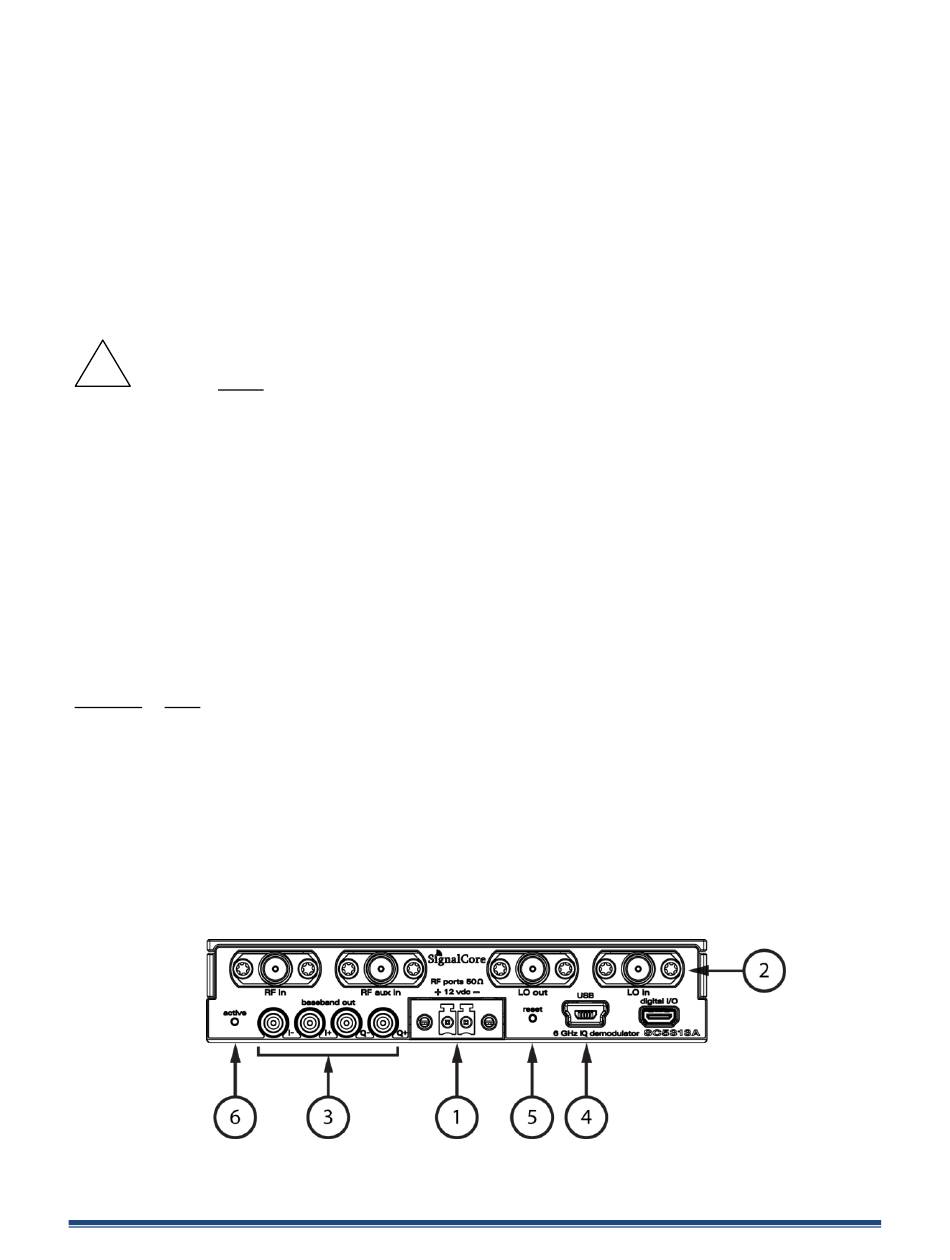

Figure 1. Front view of the SC5313A showing user I/O locations.
SC5313A Operating & Programming Manual
