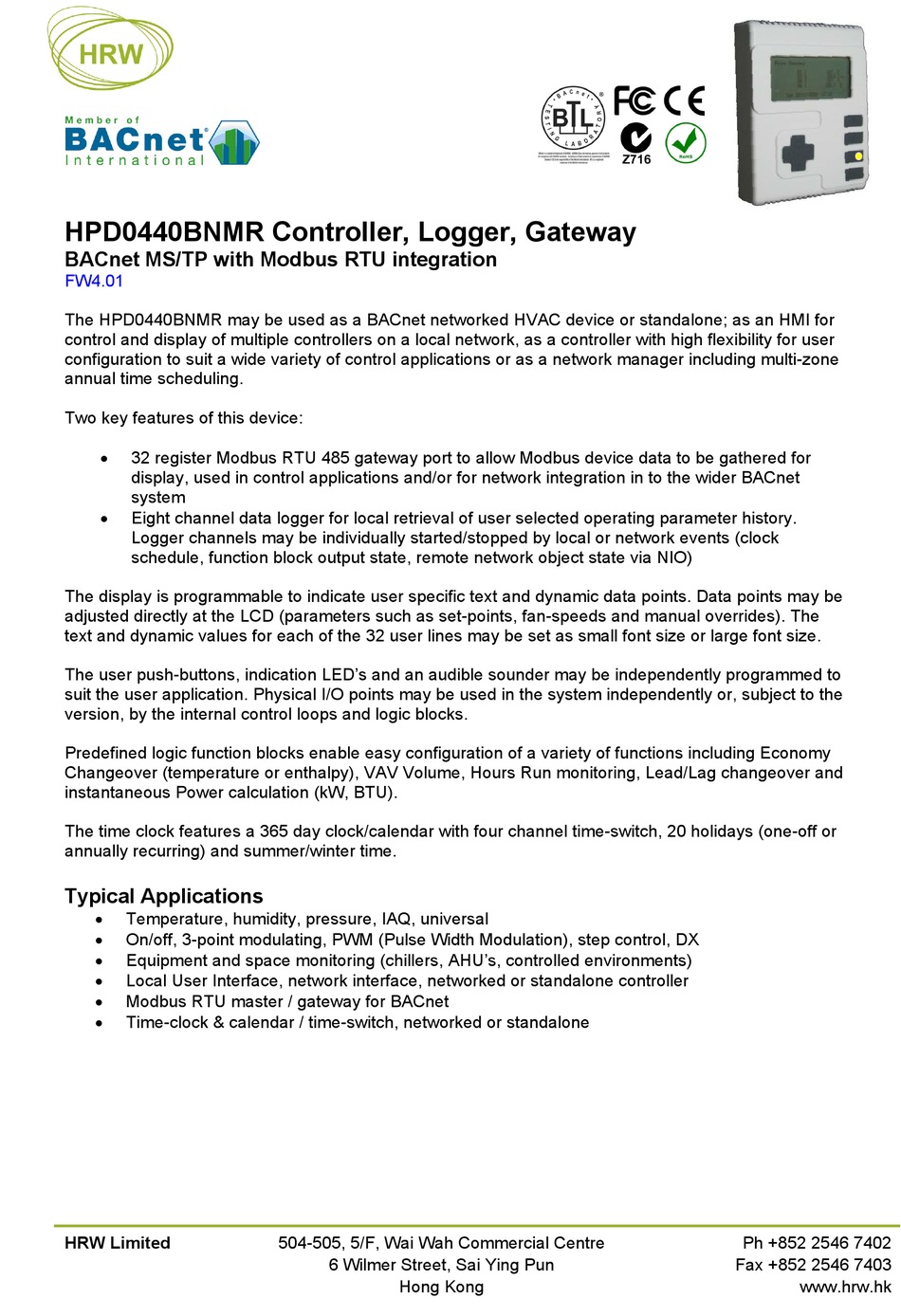

HPD0440BNMR Controller, Logger, Gateway
BACnet MS/TP with Modbus RTU integration
FW4.01
The HPD0440BNMR may be used as a BACnet networked HVAC device or standalone; as an HMI for
control and display of multiple controllers on a local network, as a controller with high flexibility for user
configuration to suit a wide variety of control applications or as a network manager including multi-zone
annual time scheduling.
Two key features of this device:
32 register Modbus RTU 485 gateway port to allow Modbus device data to be gathered for
display, used in control applications and/or for network integration in to the wider BACnet
system
Eight channel data logger for local retrieval of user selected operating parameter history.
Logger channels may be individually started/stopped by local or network events (clock
schedule, function block output state, remote network object state via NIO)
The display is programmable to indicate user specific text and dynamic data points. Data points may be
adjusted directly at the LCD (parameters such as set-points, fan-speeds and manual overrides). The
text and dynamic values for each of the 32 user lines may be set as small font size or large font size.
The user push-buttons, indication LED's and an audible sounder may be independently programmed to
suit the user application. Physical I/O points may be used in the system independently or, subject to the
version, by the internal control loops and logic blocks.
Predefined logic function blocks enable easy configuration of a variety of functions including Economy
Changeover (temperature or enthalpy), VAV Volume, Hours Run monitoring, Lead/Lag changeover and
instantaneous Power calculation (kW, BTU).
The time clock features a 365 day clock/calendar with four channel time-switch, 20 holidays (one-off or
annually recurring) and summer/winter time.
Typical Applications
Temperature, humidity, pressure, IAQ, universal
On/off, 3-point modulating, PWM (Pulse Width Modulation), step control, DX
Equipment and space monitoring (chillers, AHU's, controlled environments)
Local User Interface, network interface, networked or standalone controller
Modbus RTU master / gateway for BACnet
Time-clock & calendar / time-switch, networked or standalone
HRW Limited
504-505, 5/F, Wai Wah Commercial Centre
6 Wilmer Street, Sai Ying Pun
Hong Kong
Ph +852 2546 7402
Fax +852 2546 7403
www.hrw.hk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HPD0440BNMR and is the answer not in the manual?

Questions and answers

Summary of Contents for HRW HPD0440BNMR

  • Page 1 BACnet MS/TP with Modbus RTU integration FW4.01 The HPD0440BNMR may be used as a BACnet networked HVAC device or standalone; as an HMI for control and display of multiple controllers on a local network, as a controller with high flexibility for user configuration to suit a wide variety of control applications or as a network manager including multi-zone annual time scheduling.
  • Page 2 Automatic communication resumption after a power loss  PC configurable with HyperTerminal  PC configuration manually or with FUNCPROG configuration tool for downloadable program file creation HRW HPD0440BNMR V401 Manual 111116.doc E. & O. E. / Subject to change without notice Page 2 of 43...
  • Page 3: Table Of Contents

    UNIVERSAL INPUTS............................37 LINEARISATION TABLE...........................37 ........................37 ACTORY EFAULT ENSOR YPES ..........................38 CTIVE ENSOR CALINGS ..........................39 ASSIVE ENSOR EFINITION ..........................39 ESET TO ACTORY EFAULT HRW HPD0440BNMR V401 Manual 111116.doc E. & O. E. / Subject to change without notice Page 3 of 43...
  • Page 4 INSTALLATION & COMMISSIONING ......................40 CONNECTIONS ..............................41 DIMENSIONS ................................41 TECHNICAL DATA .............................42 ORDERING INFORMATION ..........................43 ...............................43 CCESSORIES HP_BN S ..........................43 THER ERIES EVICES HRW HPD0440BNMR V401 Manual 111116.doc E. & O. E. / Subject to change without notice Page 4 of 43...
  • Page 5: Operation Overview

    LED’s and audible beeper to raise attention to an alarm situation. HRW HPD0440BNMR V401 Manual 111116.doc E. & O. E. / Subject to change without notice Page 5 of 43...
  • Page 6: Bacnet Object Instances

    Commands from the network to Proportion Band & Integral Time points of Control Loops are written to those objects if other than null priority HRW HPD0440BNMR V401 Manual 111116.doc E. & O. E. / Subject to change without notice Page 6 of 43...
  • Page 7: User Interface

    The dynamic point’s unit tag may be customised The time switch display above indicates ‘1 34’ which tells us that switch channels 1, 3 & 4 are ON HRW HPD0440BNMR V401 Manual 111116.doc E. & O. E. / Subject to change without notice...
  • Page 8: Interface Operation

    Right side cursor indicates point now Adjustable using the up/down buttons › › ‹ HRW HPD0440BNMR V401 Manual 111116.doc E. & O. E. / Subject to change without notice Page 8 of 43...
  • Page 9: Large Font Display

    8 which is active on holidays  Wintertime/Summertime shift may be set to occur automatically  European or North American date format may be set HRW HPD0440BNMR V401 Manual 111116.doc E. & O. E. / Subject to change without notice Page 9 of 43...
  • Page 10 Holiday date setting with year =0 will occur every year  Holiday date setting with year >0 will occur once only, in the set year HRW HPD0440BNMR V401 Manual 111116.doc E. & O. E. / Subject to change without notice Page 10 of 43...
  • Page 11: Function Block Objects & Sub-Parameters

    * Digital 1 = 1000 (100%) when applied to these analogue logic functions. Analogue values will act as a Output Minimum when applied to an Output OR and Output Maximum when applied to an Output AND. HRW HPD0440BNMR V401 Manual 111116.doc E. & O. E. / Subject to change without notice...
  • Page 12 * Digital 1 = 1000 (100%) when applied to these analogue logic functions. Analogue values will act as a Output Minimum when applied to an Output OR and Output Maximum when applied to an Output AND. HRW HPD0440BNMR V401 Manual 111116.doc E. & O. E. / Subject to change without notice...
  • Page 13: Modbus Rtu Gateway

    12…14 are applied Current Modbus network Modbus Error Count 185= Read error count / Write 0 to reset comms error count/reset HRW HPD0440BNMR V401 Manual 111116.doc E. & O. E. / Subject to change without notice Page 13 of 43...
  • Page 14: Data Logger

    The sample period in LOG1…8 186…193 xxx01=1…60 1, 5, 10, 15, 30, 60 minutes The point that will start/stop xxx02=1…185 Object # the logging HRW HPD0440BNMR V401 Manual 111116.doc E. & O. E. / Subject to change without notice Page 14 of 43...
  • Page 15: Terminal Mode

    For successful communication between HyperTerminal and the device, initial Properties setup of HyperTerminal should be as per the screen prints below. ‘Connect to’ Comm Configuration: ‘Settings’ General: 9600 ‘Settings’ ASCII Setup: HRW HPD0440BNMR V401 Manual 111116.doc E. & O. E. / Subject to change without notice Page 15 of 43...
  • Page 16: Additional Settings

    (TTTTTTT…). After five (5) T’s have been sent to the device it will switch to terminal mode. At this point the BACnet activity on the network will be halted and the device will display the default user screen. HRW HPD0440BNMR V401 Manual 111116.doc E. & O. E. / Subject to change without notice...
  • Page 17: Administration Commands

    Auto X after 240sec without key entry. After communicati HyperTerminal no longer eXit unplug the HPECOM cable to allow active network communication to take place HRW HPD0440BNMR V401 Manual 111116.doc E. & O. E. / Subject to change without notice Page 17 of 43...
  • Page 18: Modbus Section

    3 channels point HRW HPD0440BNMR V401 Manual 111116.doc E. & O. E. / Subject to change without notice Page 18 of 43...
  • Page 19: Display Navigation

    5 digit point format is standard. 8 digit point format would normally be for pulse counts or other metering related values read in via NIO HRW HPD0440BNMR V401 Manual 111116.doc E. & O. E. / Subject to change without notice Page 19 of 43...
  • Page 20: Manual Override / Release

    R=1…193 Example 2: R=9 to ‘Auto’ * commanded DO1 (point 9) only return to Auto HRW HPD0440BNMR V401 Manual 111116.doc E. & O. E. / Subject to change without notice Page 20 of 43...
  • Page 21: Operational Displays & Instruction

    You may use SLL settings for alarm or warning text that will only appear when the assigned point has a value >0. HRW HPD0440BNMR V401 Manual 111116.doc E. & O. E. / Subject to change without notice Page 21 of 43...
  • Page 22: Download Text File

    Column 4 = The dynamic point value  Column 5 = Units related to the dynamic point value (as configured in the linearization table) HRW HPD0440BNMR V401 Manual 111116.doc E. & O. E. / Subject to change without notice Page 22 of 43...
  • Page 23: 'Main' Physical I/O Display

    Enter P to display the first 21 active points. The listing will include any active logic connections and, in the case of the UI’s the present calibration offset if used. HRW HPD0440BNMR V401 Manual 111116.doc E. & O. E. / Subject to change without notice...
  • Page 24: Control Loop (Cl)

    Point 37, a Digital Logic block 1, is set as the start signal for the control loop and as the enabling point for the DO’s (DO sub-parameter #02 – AND). HRW HPD0440BNMR V401 Manual 111116.doc E. & O. E. / Subject to change without notice...
  • Page 25: Digital Logic (Dl) & Analogue Logic (Al)

    AL2, Point 54 – Proportion (shift) function; CL3 output (point 71, room heating demand) proportionally shifts the supply air heating set point from 22°C up to 35°C HRW HPD0440BNMR V401 Manual 111116.doc E. & O. E. / Subject to change without notice...
  • Page 26: Network Interface Objects (Nio)

    Sensor Type who’s value/status being shared settings is to be sent HRW HPD0440BNMR V401 Manual 111116.doc E. & O. E. / Subject to change without notice Page 26 of 43...
  • Page 27: Modbus Section

    If the scaling is not yet decided then the scaling value can be omitted, or value 0 which is x1, and included later as an MRSCnnn= command for each point that requires scaling as explained later in this section. HRW HPD0440BNMR V401 Manual 111116.doc E. & O. E. / Subject to change without notice Page 27 of 43...
  • Page 28 RIR 2 Word Pair (RIR+RIRP) F04 2 Word (integer) RHR Signed Integer (RHRS) F03 -32767…+32767 RIR Signed Integer (RIRS) F04 -32767…+32767 HRW HPD0440BNMR V401 Manual 111116.doc E. & O. E. / Subject to change without notice Page 28 of 43...
  • Page 29 Word is configured at MR point 153 (with value 5678) and the 2 Word is configured sequentially at point 154 (with value 1234). HRW HPD0440BNMR V401 Manual 111116.doc E. & O. E. / Subject to change without notice Page 29 of 43...
  • Page 30: Diagnostics

    After screen refresh when in Diag mode all Data point results will display in respect of any Scaling settings, thereby displaying the true BACnet AV value. HRW HPD0440BNMR V401 Manual 111116.doc E. & O. E. / Subject to change without notice...
  • Page 31: Find Function

    153. Please ensure the setup of point 153 is as you require it before Writing (W) the configuration. HRW HPD0440BNMR V401 Manual 111116.doc E. & O. E. / Subject to change without notice...
  • Page 32: Logger Section

    In the chiller COP Logger application below these are entered as follows for LOG channels 1…3: 18600=54 18700=17 18800=153 18601=5 18701=5 18801=5 18602=29 18702=29 18802=29 HRW HPD0440BNMR V401 Manual 111116.doc E. & O. E. / Subject to change without notice Page 32 of 43...
  • Page 33: Data Upload File Creation

    & time stamped data values. Any date/time when the start point becomes active or the power is reset will also be indicated with the ‘Restart’ tag. HRW HPD0440BNMR V401 Manual 111116.doc E. & O. E. / Subject to change without notice Page 33 of 43...
  • Page 34: Upload Multiple Channels

    External Data, set the file path to your saved text capture file location and then follow the import wizard process selections relating to comma delimited data format. HRW HPD0440BNMR V401 Manual 111116.doc E. & O. E. / Subject to change without notice...
  • Page 35 Then click Next > Finish > OK to complete the Wizard and the data will appear as illustrated below, at which point you may reformat the data to suit your presentation needs (tags, graphs etc.) HRW HPD0440BNMR V401 Manual 111116.doc E. & O. E. / Subject to change without notice...
  • Page 36: Reset To Factory Default

    Note: If using devices with firmware less than version 4.00 then you must download the Factory Default text file to reset the device to Factory Default. HRW HPD0440BNMR V401 Manual 111116.doc E. & O. E. / Subject to change without notice...
  • Page 37: Universal Inputs

    Column 4 Column 6 Column 1 (Reference) Column 2 Column 7 Row # (UI Sensor Type 0) (UI Sensor Type 5) HRW HPD0440BNMR V401 Manual 111116.doc E. & O. E. / Subject to change without notice Page 37 of 43...
  • Page 38: Active Sensor Scalings

    12 as the final result after processing with the decimal shift will be an intercept of -10.0 Using the FUNCPROG tool these settings can be generated in table form for saving as a download text file. HRW HPD0440BNMR V401 Manual 111116.doc E. & O. E. / Subject to change without notice Page 38 of 43...
  • Page 39: Passive Sensor Definition

    7. If an intercept other than zero (0) is applied then raw count measurements must be at reference values shifted an equivalent amount Reset to Factory Default The FD=1 reset command also resets changes to the linearization tables HRW HPD0440BNMR V401 Manual 111116.doc E. & O. E. / Subject to change without notice Page 39 of 43...
  • Page 40: Installation & Commissioning

    24Vac power supplies cannot be guaranteed, we recommend that a repeater be used to provide isolation of the sections of the network having differing earth potential HRW HPD0440BNMR V401 Manual 111116.doc E. & O. E. / Subject to change without notice...
  • Page 41: Connections

    Connections Dimensions HRW HPD0440BNMR V401 Manual 111116.doc E. & O. E. / Subject to change without notice Page 41 of 43...
  • Page 42: Technical Data

    122mm H x 92mm L x 29mm D Dimensions 8 line dot matrix 62mm x 29mm visible 54mm x 24mm usable HRW HPD0440BNMR V401 Manual 111116.doc E. & O. E. / Subject to change without notice Page 42 of 43...
  • Page 43: Ordering Information

    VAV / Universal Controller, 13 Point, BACnet MS/TP, 24Vac HPE-BNMBUS BACnet gateway for M-Bus devices, 250 point, 24Vac HPE-BNMOD BACnet gateway for Modbus devices, 250 point, 24Vac HRW HPD0440BNMR V401 Manual 111116.doc E. & O. E. / Subject to change without notice Page 43 of 43...
