ww w.qlight.com
QMPS
OPERATION MANUAL
Panel-Mounted Multi Functional Speaker
Thank you for purchasing Qlight products.
Please read carefully and follow the instruction in order to
prevent product damage.
1
Product Features
• Can prevent cross talk of different voice environments by
selecting an audio signal t for the special environment and
condition
▪ 30 pre-recorded sounds, binary input mode has built-in 30
messages that can be played with switch for sound
• Bit input mode is organized into 6 groups of 5 sound
tones for a total of 30 sound tone options. Playback can be
selected from one of the
5 tones in each group (MP3 file with bit input mode)
• Volume adjustment and sound selection switches located
inside the unit
• SD card type can play MP3 voice messages, user can select
and change the sound message after record it
• Sound volume : Max 98dB at 1m (Warning Sounds)
Max 95dB at 1m (MP3 Sounds)
• Materials : Housing-ABS, Cover-ABS
• Protection rating : IP54
• Ambient operating temperature : -25°C to +50°C
• Weight: 0.45kg(DC Type), 0.53kg(AC Type)
2
Specifications & Technical Diagram
Model
Voltage
Current
Number
DC12V~
Max.0.750A
24V
QMPS
AC110V~
Max.0.100A
220V
Input Method
Sound Volume
/# of Chanel
Warning
Bit Input:
Sounds:98±3dB at 1m
5Ch
MP3 Sounds:95±3dB
Binary Input:
at 1m
30Ch
2-Panel fixing bracket
QMPS
3

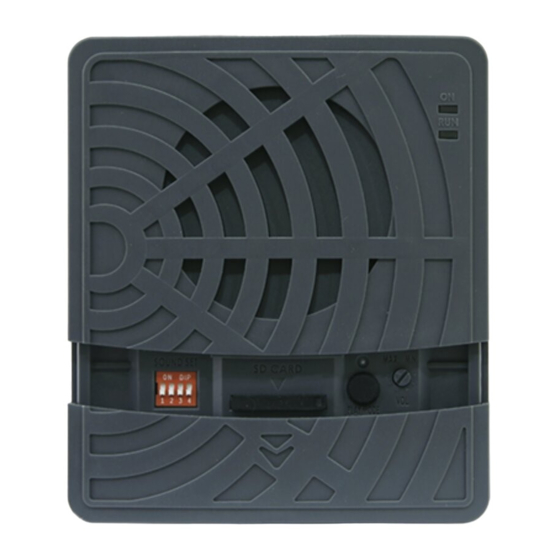

Part Names
9
4
2
8
<앞면>
Front
① Body
② Front Cover
③ LED Light(Up-Power, Down-Operation)
④ Switch for Sound selection
⑤ SD card slot for MP3 recording
⑥ Switch for play Mode selection
⑦ Switch for Volume adjustment
⑧ Front cover fixing bolt(M3x6)
⑨ Mount Bracket
⑩ Terminal Block(M3 Type Only)
⑪ Rear cover
⑫ Waterproof sealing
⑬ Terminal Box Cover
4
Installation
<판넬 취부 치수>
Dimension
▪ This panel mounted model is designed for indoor use.
▪ Please drill a hole in panel before installation. (Please refer
to measurements above for installation)
▪ For outdoor application, please make sure the product is not
damaged from rain.
▪ Please avoid applying the product in environment with moist,
dirt, vibration and shock.
12
3
10
1
7
6
5
13
11
<뒷면>
Rear
1
Advertisement
Related Manuals for Qlight QMPS
Summary of Contents for Qlight QMPS
-
Page 1: Product Features
Part Names QMPS OPERATION MANUAL Panel-Mounted Multi Functional Speaker Thank you for purchasing Qlight products. Please read carefully and follow the instruction in order to <앞면> <뒷면> Front Rear prevent product damage. ① Body Product Features ② Front Cover ③... -
Page 2: Wiring Instructions
▪ Fix the product by using two brackets provided with the product. Please confirm if QMPS is fixed well after installation of the product. ▪ In order to install QMPS, thickness of panel should be 1 to 10mm. ▪ Warning : Product may be damaged if customer uses inappropriate tools or method during product installation. -
Page 3: Operational Sequence
Operational Sequence ▪ Pre-recorded sound OPEN FRONT ① Set the sound switch no.1 off. COVER ② PLAY MODE control switch-Choose play mode(Bit input/Binary input) ③ SOUND set-up switch- Select sound group using no.2,3 and 4 ④ In case of bits input, 5 sound tones can be played(CH1~5) ⑤... - Page 4 In test mode, Ch1 of group is PLAY MODE SETUP automatically played back SWITCH Test Mode repeatedly. To end the test mode, switch back to the other modes. PLAY MODE SELECTION (Regardless of direction) 9. VOLUME CONTROL - You can adjust the speakers sound output by using the volume dial.
-
Page 5: Troubleshooting
Binary input type sound pattern group composition Connection Output 2 kinds of ON = 1 / OFF = 0 sounds Problem Sound tone Contact Qlight or CH1 CH2 CH3 CH4 CH5 Selection Switch Agent Sound pattern Inquiry and Customer Service No sound Fire.A-ANG(560Hz-1.5kHz)
