- Page 1 Midor Balancing Measuring Device User Guide for Mobile Devices with iOS v. 10.3...
-
Page 3: Table Of Contents
Midor Content Introduction ..................................5 Midor Instrument Features ..............................5 Midor Pressure Measuring Unit ............................6 Midor application installation ..............................7 Midor Application Main Display ............................7 Application Setup ................................. 7 Pressure Unit Turn-on ................................8 Warning! Very important! ..............................8 Measuring .................................... - Page 4 Battery Replacement ......................................26 Troubleshooting ................................. 27 Safety and Device Disposal Instructions ........................... 29 Batteries ..........................................29 Information for Users on Collection and Disposal of Used Devices and Batteries ....................29 Specifications ..................................30 Midor iOS User Guide rev. 1.1...
-
Page 5: Introduction
Bluetooth Low Energy (hereinafter just BLE) technology in a mobile device with the Android or iOS operating systems. The Midor measuring unit is very robust with a massive heavy-duty frame that can withstand a fall from 2 meters. Inside the measuring unit, there is a hydraulic section with a built-in symmetrical differential sensor for accurate digital processing of measured data. -

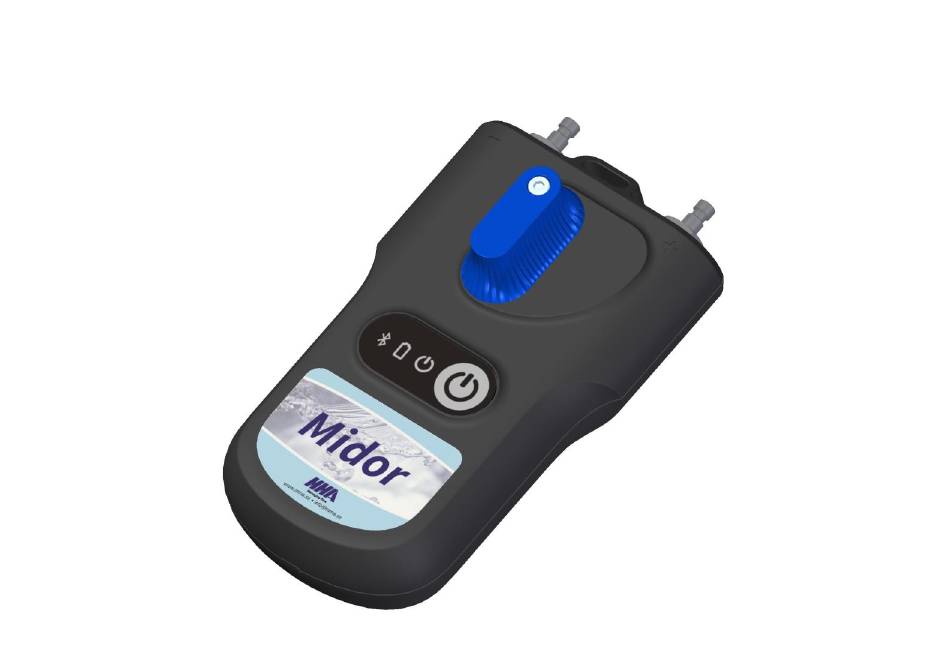

Page 6: Midor Pressure Measuring Unit
Midor Using the BLE transmission, the Midor application communicates with the measuring unit; a user-friendly interface can be handled via the user mobile device. The application processes pressure values and allows displaying the flows in the measured system based on features of balancing components stored in the mobile device’s storage. The application stores in the mobile device’s storage balancing valves of most leading European producers. -
Page 7: Midor Application Installation
Midor Midor application installation Find in App Store the Midor application and install it in your mobile device. Midor Application Main Display Start the Midor application. Application Setup Press the Setup button in the introductory window where you can set up the initial features of the application. -
Page 8: Pressure Unit Turn-On
If the green light indicator fleshes with 1 second period, there is an error in the BLE module initialisation. Try to switch off the instrument, wait for several seconds and turn it on again. Midor iOS User Guide rev. 1.1... -
Page 9: Measuring
Once the Measuring button is selected, a window is displayed on the introductory screen for searching and connecting with the measuring unit. After the Scan button is pressed, the Midor application will search for and display available Midor devices. Select your Midor unit from the displayed list using the last four digits of the serial number and confirm the option by pressing the Connect button. -
Page 10: Measuring Context Menu Tabs
You can select the required valve by pressing the selection list. After clicking on the blue Manufacturer line, the list of valve manufacturers contained in the Midor instrument database will open from which you select the manufacturer required by you. The database of valves in the instrument contains valves the world’s leading manufacturers. -
Page 11: Valve Preset
In case the database of valves does not contain the valve you require you can measure the flow using the Kv direct specification. You can obtain the table with preset values and Kv values from the documentation of the respective valve manufacturer. Rev. 1.1 Midor iOS User Guide... -
Page 12: Set Requested Flow
Measuring window will show just the flow value in absolute units. Medium Temperature Specify the temperature of the medium in the measured system by pressing the Set Temperatureselection list. Fill in the temperature data manually in the Temperature field. Midor iOS User Guide rev. 1.1... -
Page 13: Pressure Measuring Zero, Deaeration Of Measuring Hoses
The connection of the pressure inlets can also be used to bleed the connection hoses of the measuring unit. For media temperatures above 50 ° C, venting of less than 10 seconds is recommended to avoid unnecessary heating of the pressure unit measuring circuits. Rev. 1.1 Midor iOS User Guide... -
Page 14: Projects
Projects Project Management The project management in the Midor measuring instrument makes the work in the real technology easier. You can prepare the project you need to measure directly in the Midor measuring instrument. You can then store two values for each branch of the project - the initial status of the branch before balancing and its status after balancing. -
Page 15: Project Context Menu
The Save as selection list, enter the an already existing project stores the existing project with new name for storing the existing which you want to open. the existing name. project, confirm with the OK button. Rev. 1.1 Midor iOS User Guide... -
Page 16: Send Project Via Mail
Flow requested. The other three fields contain the measured quantities - Disposition pressure, Initial flow, Actual flow. The other two fields are used for specifying and entering two values - Initial preset and Preset. The remaining fields are filled in automatically. Midor iOS User Guide rev. 1.1... -
Page 17: Branch Context Menu
OK button. You can verify this in the list of branches by selecting the arrow at the branch name. Rev. 1.1 Midor iOS User Guide... -
Page 18: Delete Branch
Recording The Midor pressure unit is equipped with the function of independent periodical data recording. This function may make the project diagnostics easier especially for irregular or long-time processes. The recorded data contains the record description, date, time, selected valve, valve preset, medium, temperature of the medium while recording, pressure and flow. -
Page 19: Record Info Tab
Record Info context menu is displayed where you can work with records using respective tabs - Add new record, Open record, Save record as, Read record, Send record via Mail, Delete record. Rev. 1.1 Midor iOS User Guide... -
Page 20: Record Info Context Menu
You can activate new recording by clicking on the Start recording button. Midor iOS User Guide rev. 1.1... -
Page 21: Open Record
From the Read record selection menu, new screen opens in which the list of you can read a record from the records stored by the Midor application pressure measuring unit. After reading, in the mobile device is shown. Once a... -
Page 22: Record Items Tab
Heating engineering calculations allow and make easier solutions of partial tasks and calculations in balancing hydraulic systems. There are the following four calculations in the Midor application: 1. Preset calculation - calculates the valve preset for the flow requested in the current branch. -
Page 23: Preset Calculation
Confirm the measured pressure value with the Save current disposal pressure button. Based on the measured values and the requested flow, the Midor application calculates the needed valve preset and displays the result in the Calculations window in the Results section of the screen. -
Page 24: Pressure Loss Calculation
Save button. Confirm saving of the measured disposal pressure with the fully closed valve with the Save button in the next screen. The result will be displayed in the Calculations/Results section of the screen. Midor iOS User Guide rev. 1.1... -
Page 25: Valve Authority Calculation
Save button. Measure the pressure in the next screen with the valve fully open, and confirm with the Save button. The result will be displayed in the Calculations/Results section of the screen. Rev. 1.1 Midor iOS User Guide... -
Page 26: Maintenance
Unscrew the screws on the battery cover. Remove the cover and insert new batteries following the technical parameters. If you insert batteries of a different type, do not forget to change the battery type in the Midor application. Midor iOS User Guide rev. 1.1... -
Page 27: Troubleshooting
1 kPa The pressure unit Bluetooth search Check the Mobile device setup. If you have the Midor pressure unit paired with the is not functional, or the Midor mobile device, unpair it. BLE does not pairing of the Bluetooth device as the application is unable to connect previous version required;... - Page 28 Here, you will see the BT module address recorded by your option. Delete to measure with a different the address, and the application will again search through all pressure units. pressure unit. Midor iOS User Guide rev. 1.1...
-
Page 29: Safety And Device Disposal Instructions
By ensuring the correct disposal of the product you can help prevent from occurring potential dangerous impacts on the environment and human health that would threaten when the product is not disposed of properly. Commercial users in European Union may contact their dealers or suppliers. Rev. 1.1 Midor iOS User Guide... -
Page 30: Specifications
NiMH rechargeable batteries * optional ** measured at the end of measuring hoses, length 1.5m, Hot water flows thru Midor hydraulic parts during Pressure zero procedure. Maximum time duration of zeroing when temperature of the medium exceeds 50°C is 10 seconds.
