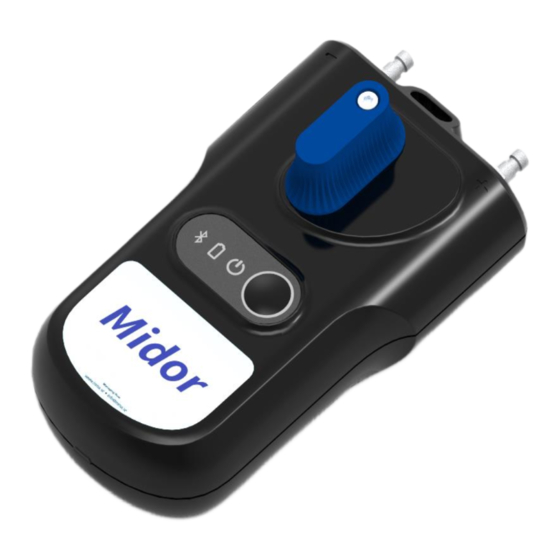

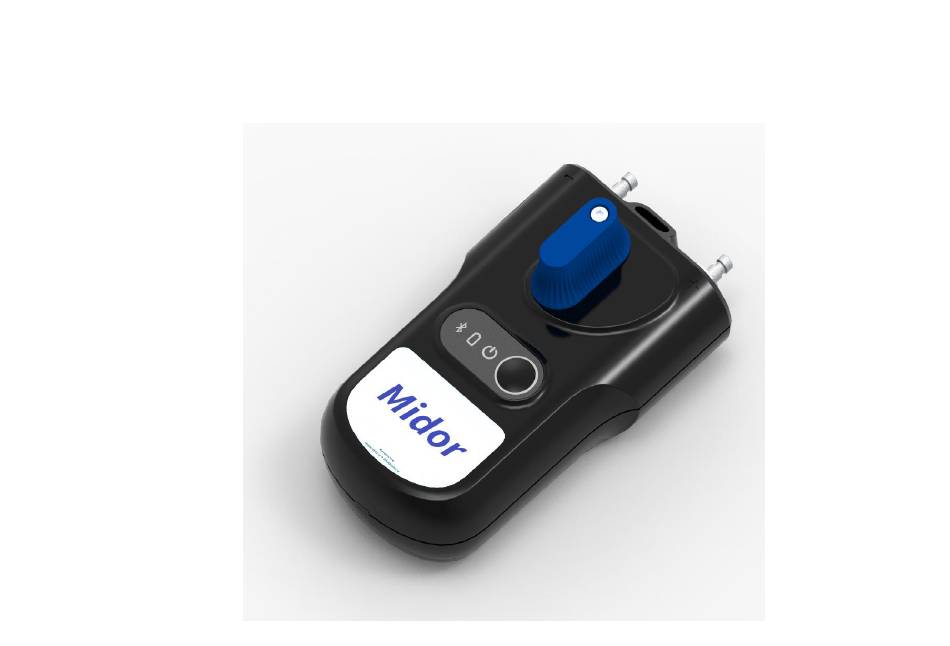

- Page 1 Midor Measuring and Balancing Device User Guide for Mobile Devices with OS Android 7.0 and above...
-
Page 3: Table Of Contents
Midor Contens Introduction ..................................5 Midor Instrument Features ..............................5 Midor Pressure Measuring Unit ............................6 Midor Application Installation ............................... 7 Main Application Display ..............................7 Application Setup ................................. 7 Context Menu ..................................8 Instrument turn-on ................................8 Measuring .................................... 9 Authorisation of Location Services in the Android OS ............................... - Page 4 Batteries Replacement ......................................27 Troubleshooting ................................. 28 Safety and Device Disposal Instructions ........................... 29 Batteries ..........................................29 Information for Users on Collection and Disposal of Used Devices and Batteries ....................29 Specifications ..................................30 Android Midor Application User Guide rev 1.2...
-
Page 5: Introduction
Bluetooth Low Energy (hereinafter just BLE) technology in a mobile device with the Android or iOS operating systems. The Midor measuring unit is very robust with a massive heavy-duty frame that can withstand a fall from 2 meters. Inside the measuring unit, there is a hydraulic section with a built-in symmetrical differential sensor for accurate digital processing of measured data. -
Page 6: Midor Pressure Measuring Unit
Midor Using the Bluetooth Low Energy transmission, the Midor application communicates with the measuring unit; a user- friendly interface can be handled via the user mobile device. The application processes pressure values and allows displaying the flows in the measured system based on features of balancing components stored in the mobile device’s storage. -
Page 7: Midor Application Installation
Midor Midor Application Installation Find the Midor application in Google play and install it in your mobile device. Main Application Display On the home page of the application are buttons that directly navigate to the different parts of the Midor application. -
Page 8: Context Menu
If the green light indicator fleshes with 1 second period, there is an error in the BLE module initialisation. Try to switch off the instrument, wait for several seconds and turn it on again. Android Midor Application User Guide rev 1.2... -
Page 9: Measuring
This function occurs in many other places in the Midor application. If you check the Always use the selected device option, the Midor application will connect with this unit automatically and will not search for any other. -
Page 10: Measuring Window
You can select the required valve by pressing the Select valve selection list. After clicking on the blue Manufacturer line, the list of valve manufacturers contained in the Midor instrument database will open. Select the manufacturer required by you. The database of valves in the instrument contains valves from the world’s leading manufacturers;... -
Page 11: Valve Presetting
In case the database of valves does not contain the valve you require you can measure the flow using the Kv direct specification. You can obtain the table with preset values and Kv values from the documentation of the respective valve manufacturer. rev. 1.2 Android Midor Application User Guide... -
Page 12: Set Requested Flow
Fill in the temperature data manually in the Temperature field. For water medium, the effect of the temperature on the flow calculation is negligible. If an anti-freeze is selected as the medium, the temperature specification is necessary for the flow calculation!!! Android Midor Application User Guide rev 1.2... -
Page 13: Pressure Measuring Zero, Deaeration Of Measuring Hoses
Certain settings under the Measuring window, such as the Medium temperature, Valve selection or Valve presetting, can be set directly by tapping on the required fields. Valve presetting can also be changed using a slider under the displayed pre-setting value. rev. 1.2 Android Midor Application User Guide... -
Page 14: Quick Record
Projects Working with Projects The project management in the Midor measuring instrument makes the work in the real technology easier. You can prepare the project you need to measure directly in the Midor measuring instrument. You can then store two values for each branch of the project - the initial status of the branch before balancing and its status after balancing. -
Page 15: Project Window, Project Tab
Save, Save as, Rename Project, new project name and confirm with Mail this project. the OK button. After that, the introductory Projects screen is reopened which already shows the new file name for storing the new project. rev. 1.2 Android Midor Application User Guide... -
Page 16: Open
Midor Open Save Save as You will store the existing project with the existing name. Mail this Project Rename Project Write the new project name for renaming, confirm with the OK button. Android Midor Application User Guide rev 1.2... -
Page 17: Project Window, Branches Tab
A screen is opened in which you Here, you can work with branches: Add branch, Rename specify and enter the new branch branch, Move branch up, Delete branch, Move branch name and confirm with the OK down. button. rev. 1.2 Android Midor Application User Guide... -
Page 18: Rename Branch
You can move the existing branch currently being edited. one position down in the list of branches. You can verify this in the list of branches by selecting the arrow at the branch name. Android Midor Application User Guide rev 1.2... -
Page 19: Records
Midor Records The Midor pressure unit is equipped with the function of independent periodical data recording. This function may make the project diagnostics easier especially for irregular or long-time processes. The recorded data contains the record description, date, time, selected valve, valve preset, medium, temperature of the medium while recording, pressure and flow. -
Page 20: New Record
The last two fields are used for entering the interval in which the selected quantities should be measured and saved, and how many times the record should be repeated. You can activate new recording by clicking on the Start recording button. Android Midor Application User Guide rev 1.2... -
Page 21: Open Record
From the Read record selection a new screen opens in which the list menu, you can read a record from the of records stored by the Midor pressure measuring unit. application in the mobile device is shown. Once a record is selected in... -
Page 22: Export Record As Csv
Record will be exported in Microsoft xls format and saved Record is exported as in previous paragraph and will be to Internal Storage Midor/Export folder send via Mail. Only the file in attachment is in xls format. RECORD ITEMS Tab You can read a record from the measuring unit or open a record from the mobile device. -
Page 23: Heating Calculations
Heating engineering calculations allow and make easier solutions of partial tasks and calculations in balancing hydraulic systems. There are the following four calculations in the Midor application: 1. Preset calculation - calculates the valve preset for the flow requested in the current branch. -
Page 24: Pressure Loss Calculation
Save button. Confirm saving of the measured disposition pressure with the fully closed valve with the Save button in the next screen. The result will be displayed in the Calculations/Results section of the screen. Android Midor Application User Guide rev 1.2... -
Page 25: Calculate Valve Authority
Save button. Measure the available pressure in the next screen with the valve fully open, and confirm with the Save button. The result will be displayed in the bottom section of the introductory Calculations screen. rev. 1.2 Android Midor Application User Guide... - Page 26 Midor Android Midor Application User Guide rev 1.2...
-
Page 27: Pressure Measuring Unit Maintenance
Unscrew the screws on the battery cover (refer to page 8), remove the cover and insert new batteries following the technical parameters. If you insert batteries of a different type, do not forget to change the battery type in the Midor application. rev. 1.2 Android Midor Application User Guide... -
Page 28: Troubleshooting
1 kPa The pressure unit Bluetooth search Check the Mobile device setup. If you have the Midor pressure unit paired with the is not functional, or the Midor mobile device, unpair it. BLE does not pairing of the Bluetooth device as the application is unable to connect previous version required;... -
Page 29: Safety And Device Disposal Instructions
By ensuring the correct disposal of the product you can help prevent from occurring potential dangerous impacts on the environment and human health that would threaten when the product is not disposed of properly. Commercial users in European Union may contact their dealers or suppliers. rev. 1.2 Android Midor Application User Guide... -
Page 30: Specifications
NiMH rechargeable batteries * optional ** measured at the end of measuring hoses, length 1.5m, Hot water flows thru Midor hydraulic parts during Pressure zero procedure. Maximum time duration of zeroing when temperature of the medium exceeds 50°C is 10 seconds.
