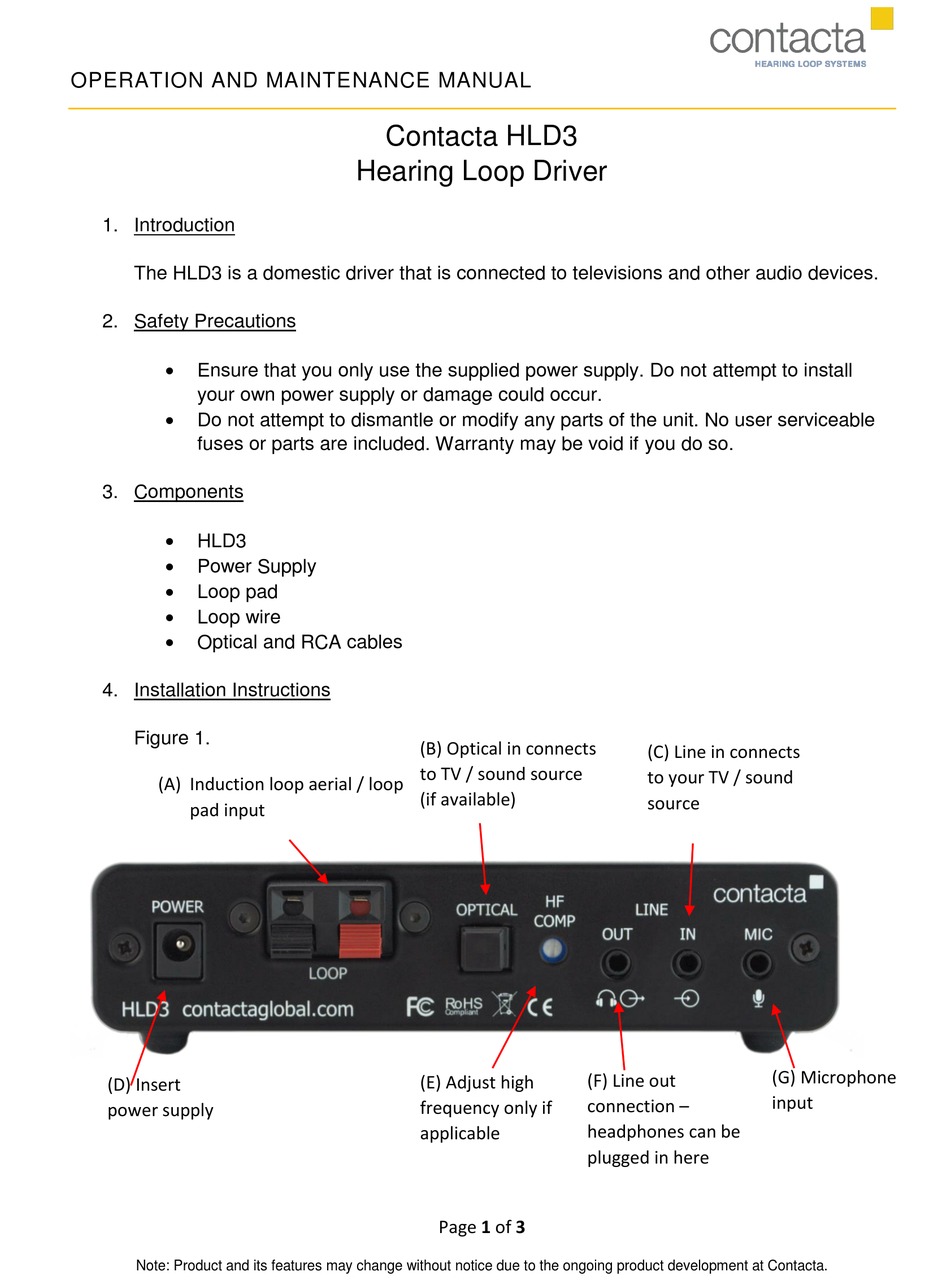

OPERATION AND MAINTENANCE MANUAL

1. Introduction

The HLD3 is a domestic driver that is connected to televisions and other audio devices.

2. Safety Precautions

Ensure that you only use the supplied power supply. Do not attempt to install
your own power supply or damage could occur.
Do not attempt to dismantle or modify any parts of the unit. No user serviceable
fuses or parts are included. Warranty may be void if you do so.

3. Components

HLD3
Power Supply
Loop pad
Loop wire
Optical and RCA cables

4. Installation Instructions

Figure 1.
(A) Induction loop aerial / loop
pad input
(D) Insert
power supply
Note: Product and its features may change without notice due to the ongoing product development at Contacta.
Contacta HLD3
Hearing Loop Driver
(B) Optical in connects
to TV / sound source
(if available)
(E) Adjust high
frequency only if
applicable
Page 1 of 3
(C) Line in connects
to your TV / sound
source
(F) Line out
connection –
headphones can be
plugged in here
(G) Microphone
input
