NorthStar NS15781520 Quick Start Manual

PART NO. NS15781520
NorthStar 4000PSI Cold Water
Petrol Pressure Washer
THESE INSTRUCTIONS ARE TO BE USED AS A GUIDE ONLY AND ARE NOT INTENDED TO REPLACE THE FULL INSTRUCTION MANUAL PROVIDED WITH YOUR PRODUCT.
ALWAYS READ THE INSTRUCTION MANUAL FOR FULL DETAILS RELATING TO SAFETY INSTRUCTIONS, ASSEMBLY, OPERATION AND MAINTENANCE OF YOUR PRODUCT.
ALWAYS MAKE SURE YOUR PRESSURE WASHER IS ON STABLE LEVEL GROUND BEFORE CHECKING OIL LEVELS.
1

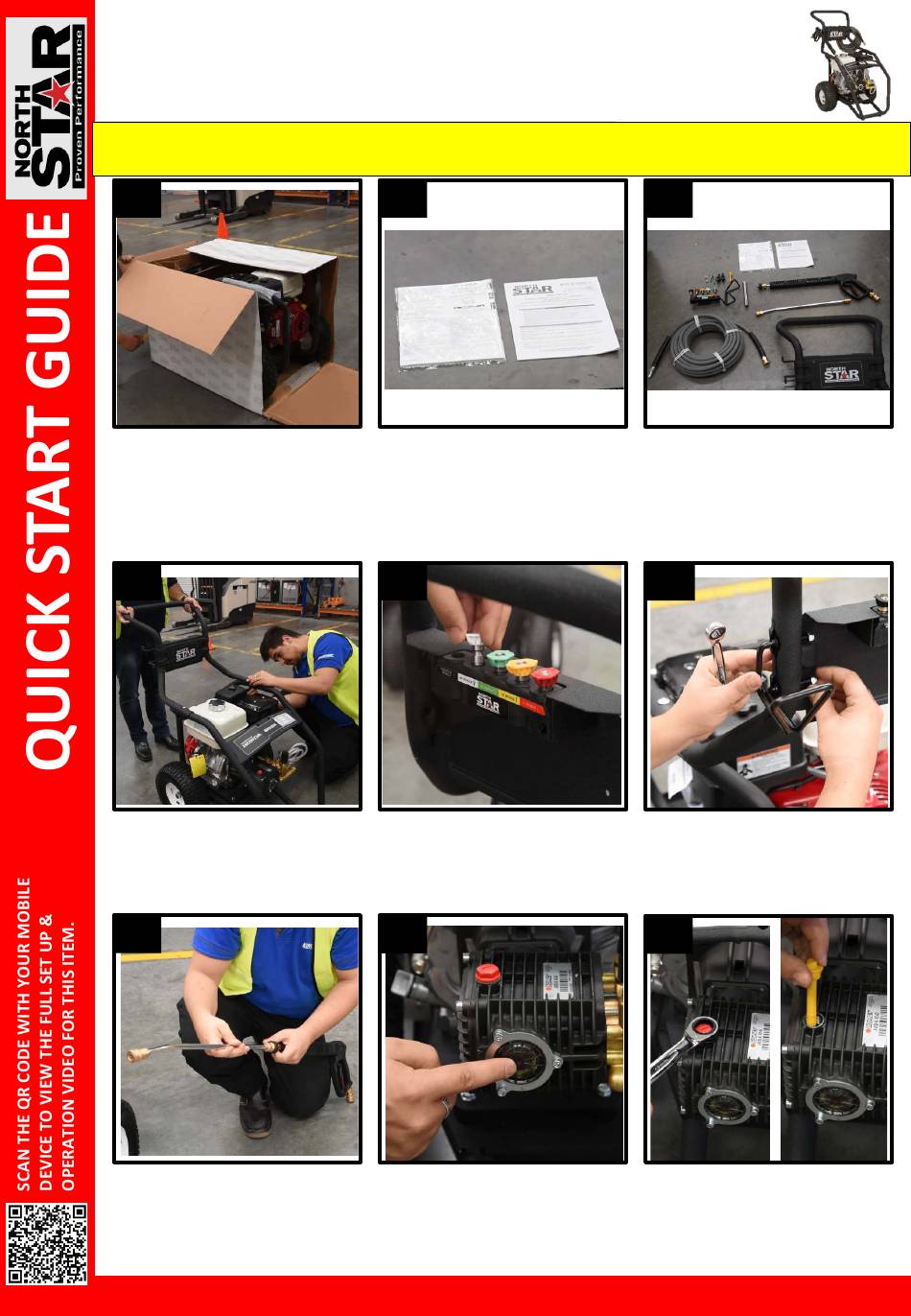

Fully unpack the contents of the
pressure washer and lay out all
accessories .
4
Assemble the handle using the bolts
and wing nuts supplied. Tighten as
required.
7
Attach the quick connect lance to the
gun assembly & ensure you tighten
the connection.
Have questions relating to assembly or operation of your product, call KINCROME on
2
Remove the instruction manuals and
read all safety & user instructions
carefully.
Note: There are two separate
instruction manuals. One for the
motor & one for the pressure washer.
5
Slide the nozzle holder belt clip
holder into the rear of the handle
frame, and then insert all of the
supplied nozzles into the rubber
retaining rings.
8
Check and verify the pressure pumps oil
level by visually inspecting the pumps oil
level sight glass. Verify that the oil level
is at least ½ way up the sight glass. If
low, top up with SAE 30 oil (not
supplied)
3
Remove all product components &
review the instruction manual to
confirm all components have been
supplied with the product.
6
Insert the hose holder bracket through
the allocated holes in the handle, then
tighten the supplied nuts with a 13mm
spanner.
9
Using an 18mm spanner, undo &
remove the RED pressure pump travel
plug from the top of the pressure
washers pump. Replace the RED travel
plug with the YELLOW breather/oil
dipstick plug
