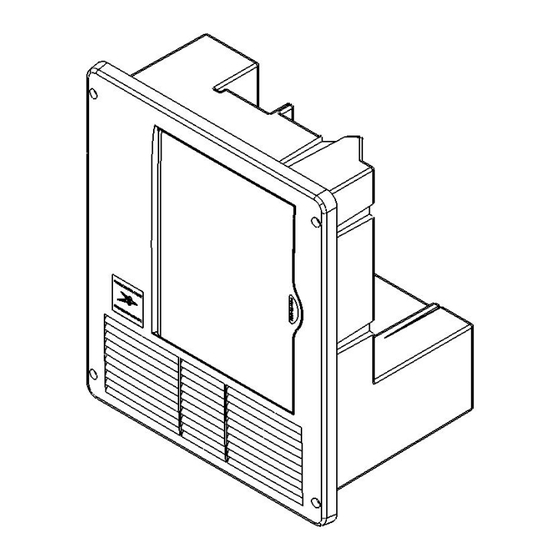

Installation and Operation Guide for PD4300
and PD4500 Series Power Control Centers
Member
Thank you for selecting Progressive Dynamics as your choice for your RV power needs. We'd like to welcome you to a full line
of industry leading and time tested products including our newest additions to the PDI family, the PD4300 and PD4500 Series
POWER CONTROL CENTERS.
The PD4300 and PD4500 Series POWER CONTROL CENTERS offer break-through technologies that help maintain and
£
lengthen the life of your batteries such as our patented Charge Wizard
.
£
The heart of the PD4300 and PD4500 is the INTELI-POWER Converter. The built-in Charge Wizard
microprocessor constantly
monitors the battery voltage then automatically adjusts the converter output voltage to provide the proper charging voltage for fast
recharges and long-term maintenance.
The intelligent way to charge and maintain your RV battery.
With enough AC and DC branches you'll have plenty of options for your growing RV needs.
Progressive Dynamics, Inc.
507 Industrial Rd.
Marshall, MI 49068
www.progressivedyn.com
Patent Numbers: 5,687,066 - 5,600,550 - 5,982,643 - 6,184,649 - 7,782,002
110030 Rev D
© 2011
Advertisement
Related Manuals for Progressive Dynamics PD4300 Series
Summary of Contents for Progressive Dynamics PD4300 Series
- Page 1 Member Thank you for selecting Progressive Dynamics as your choice for your RV power needs. We’d like to welcome you to a full line of industry leading and time tested products including our newest additions to the PDI family, the PD4300 and PD4500 Series POWER CONTROL CENTERS.
-
Page 2: Limited Warranty
Technical Specs and Troubleshooting LIMITED WARRANTY I. LIMITED WARRANTY: Progressive Dynamics, Inc. warrants its power control center to be free from defects in material or workmanship under normal use and service; and limits the remedies to repair or replacement. II. DURATION: This warranty shall extend for a period of two years from the original date of purchase, and is valid only within the continental limits of the United States and Canada. -
Page 3: Installation Instructions
Connect wiring system using appropriately sized cable clamp. A closure plug kit for any unused Romex connectors may be purchased from Progressive Dynamics, Inc. Part Number PD812374. For installations without an external DC disconnect switch, connect battery POS (+) to the BATTERY POS. + lug and battery NEG (-) to the BATTERY NEG. - Page 4 Page 2 User Information Many options will be installed prior to the purchase of your new RV, however there are a few options that you should be aware of while operating your new POWER CONTROL CENTER. £ The Charge Wizard selects the best mode for your battery automatically.
-
Page 5: Troubleshooting Guide
Weight: 8 lbs Weight: 8 lbs Weight: 10 lbs * Consult local regulatory authority for possible branch circuit restrictions Breakers: Recommended breakers rated maximum 50A for PD4500 series and 30A for PD4300 series The following breakers are 50 Amp 30 Amp... - Page 6 Do not replace the converter section unless the following checks have been performed: 1. Use an AC voltmeter to check for the proper voltage at the 120 VAC breaker that the converter is connected to. This voltage should be between 105 and 130 volts. 2.
- Page 7 Notes:...
- Page 8 P r o g r e s s i v e D y n a m i c s, I n c . 507 Industrial Rd Marshall, MI 49068 Visit us on the web for other great products. www.progressivedyn.com...
