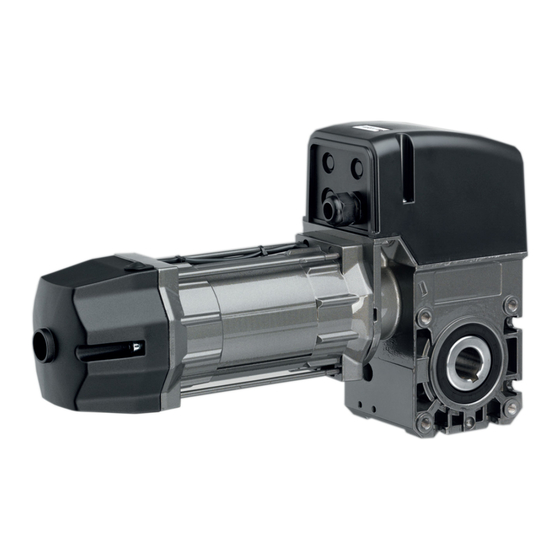

- Page 1 Operating Instructions STA 1 sectional door operator Sectional door operator STA 1 / Rev. D 0.3 – 1...
-
Page 2: Table Of Contents
Reference to separate documents which must be complied with. ☞ Action request − List, itemisation ➔ Reference to other sections of this document 2 – Sectional door operator STA 1 / Rev. D 0.3 2 – Sectional door operator STA 1 / Rev. D 0.3... -
Page 3: General Safety Instructions
MFZ does not accept any liability or warranty for damage due to the use of non-approved spare parts and accessories. Intended use The operators of the STA 1 range are designed exclusively for opening and closing weight counterbalanced sectional doors. Target group Only qualified and trained specialists are permitted to install and service the operator. -
Page 4: Overview Of Products
The precise values for all operators can be found in ➔ „9. Technical data“ Additional product combinations are possible. Information about these combinations can be obtained from the manufacturer. 4 – Sectional door operator STA 1 / Rev. D 0.3... -
Page 5: Installation
– no other sources of danger exist, Check whether the feather key is suitable for the spring shaft – the installation site has been cordoned off over a wide on site. area. Sectional door operator STA 1 / Rev. D 0.3 – 5... -
Page 6: Installation Of The Emergency Hand Chain (Only For Operators With Emergency Hand Chain)
To avoid damage to the drive and the door, the emergency hand chain must be secured while the door is operated ☞ Fix the operator to the torque support bracket with 4 screws. electrically. 6 – Sectional door operator STA 1 / Rev. D 0.3... -
Page 7: Initial Operation
When operated with electronic control units, the 6.2 / 2 corresponding start-up instructions and circuit diagrams must be complied with. ☞ Feed the cables through the screw fitting into the operator. Sectional door operator STA 1 / Rev. D 0.3 – 7... - Page 8 Potential-free connection OPEN Potential-free connection CLOSE Switch off safety circuit Switch off OPEN end position Switch off CLOSED end position Internal safety circuit 8 – Sectional door operator STA 1 / Rev. D 0.3...
-
Page 9: Manual Settings
Control cam for limit switch, CLOSED (white) mains supply. Control cam for additional limit switch, CLOSED (white) 6.2 / 8 ☞ Connect all the cables required. Identification of wires AUF (OPEN) blue ZU (CLOSE) blue Sectional door operator STA 1 / Rev. D 0.3 – 9... -
Page 10: Digital Settings - Limit Switch And Safety Circuit For Drive
CLOSED limit switch (E) Please refer to the control unit operating manual for is passed over. instructions on setting the end positions. ☞ Adjust the CLOSED safety limit switch (D). 10 – Sectional door operator STA 1 / Rev. D 0.3... -
Page 11: Check The System
Thermal element in the drive − The operator must be taken out of service immediately, Manual emergency control − The customer service must be informed. (emergency crank or emergency chain) Sectional door operator STA 1 / Rev. D 0.3 – 11... -
Page 12: Emergency Operation
Move the door in the OPEN or CLOSE direction by turning the emergency hand crank. ☞ Remove the emergency hand crank from the operator after completing emergency manual operation. 12 – Sectional door operator STA 1 / Rev. D 0.3... -
Page 13: Maintenance
Check the housing for damage. Faulty parts that have been replaced must be disposed of properly in accordance with the regulations. Sectional door operator STA 1 / Rev. D 0.3 – 13 Sectional door operator STA 1 / Rev. D 0.3 – 13... -
Page 14: Technical Data
1 cycle = 1 complete door movement (open and then close the door). The values given assume an even distribution. Temperature ranges < -5 °C: Type of oil and electric heater on request. 14 – Sectional door operator STA 1 / Rev. D 0.3... - Page 15 1 cycle = 1 complete door movement (open and then close the door). The values given assume an even distribution. Temperature ranges < -5 °C: Type of oil and electric heater on request. Sectional door operator STA 1 / Rev. D 0.3 – 15...
- Page 16 Technical data STA/STAW 1 E 9 / 1 6.35 4x M8x16 deep, on both sides STA/STAW 1 KE 9 / 2 6.35 4x M8x16 deep, on both sides 16 – Sectional door operator STA 1 / Rev. D 0.3...
- Page 17 STA/STAW 1 KU 9 / 3 6.35 4x M8x16 deep, on both sides STA/STAW 1 E - HD 9 / 4 6.35 4x M8x16 deep, on both sides Sectional door operator STA 1 / Rev. D 0.3 – 17...
- Page 18 STA/STAW 1 KE - HD 9 / 5 6.35 4x M8x16 deep, on both sides STA/STAW 1 KU - HD 9 / 6 6.35 4x M8x16 deep, on both sides 18 – Sectional door operator STA 1 / Rev. D 0.3...
- Page 19 STAC/STAWC 1 E 9 / 7 6.35 4x M8x16 deep, on both sides STAC/STAWC 1 KE 9 / 8 6.35 4x M8x16 deep, on both sides Sectional door operator STA 1 / Rev. D 0.3 – 19...
- Page 20 Technical data STAC/STAWC 1 KU 9 / 9 6.35 4x M8x16 deep, on both sides 20 – Sectional door operator STA 1 / Rev. D 0.3...
- Page 21 Sectional door operator STA 1 / Rev. D 0.3 – 21...
-
Page 22: Manufacturer's Declaration
For this reason, this product may only be commissioned once it has been determined that the complete machine /system into which it has been incorporated corresponds with the indicated EC guidelines. 22 – Sectional door operator STA 1 / Rev. D 0.3... - Page 23 In case of changes to the product that are not confirmed by us, this declaration is void. Legden, dated 01.07.2018 Dirk Wesseling, General Manager Sectional door operator STA 1 / Rev. D 0.3 – 23...
- Page 24 #1700007835 #97609...
