Honeywell Q6371A Product Data

FEATURES
• Attractive modern styling makes this module ideal
for locating in the occupied space in offices or
hotels.
• Slide switches for ease of operation and visual
indication of status.
• On/off switch and fan 1-2-3 speed switch allow
complete control of fan operation.
• Lockable front cover.
SPECIFICATIONS
Application Manual control of the fan in line
voltage fan-coil installations.
230 V~ ±10%, 50/60 Hz
Voltage
Current 6(4)A at 230 V~
Switches On/off switch
Fan 1-2-3 speed switch
Operational Life Greater than 6,000 operations for
each switch.
Mounting Mounting hole pitch 60mm.
Mounting screws supplied.
Wiring Terminals suitable for wires up to
1.5mm
EN0R 8490 R1 1998
001
DESCRIPTION

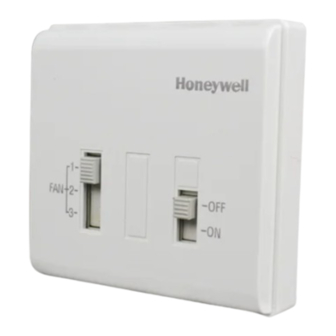

The Q6371A is a fan speed selector module for manual operation of
the fan in fan coil installations.
Honeywell
2
FAN SPEED SELECTOR
• Mounts directly onto a wall, a conduit box, or a fan
coil unit. Mounting screws are supplied
Protection Class IP30
Dimensions
Environmental
Requirements
Approvals
Ordering
Specification
1
Honeywell
Q6371A
PRODUCT DATA
83 x 84 x 27 mm
Operating temperature 0 to 40°C
Humidity ≤90%rh, non-condensing.
CE Mark : complies with standards
EN60730-1 (1995), EN55014-1
(1997), and EN55014-2 (1996)
Q6371A1006
42009532-
