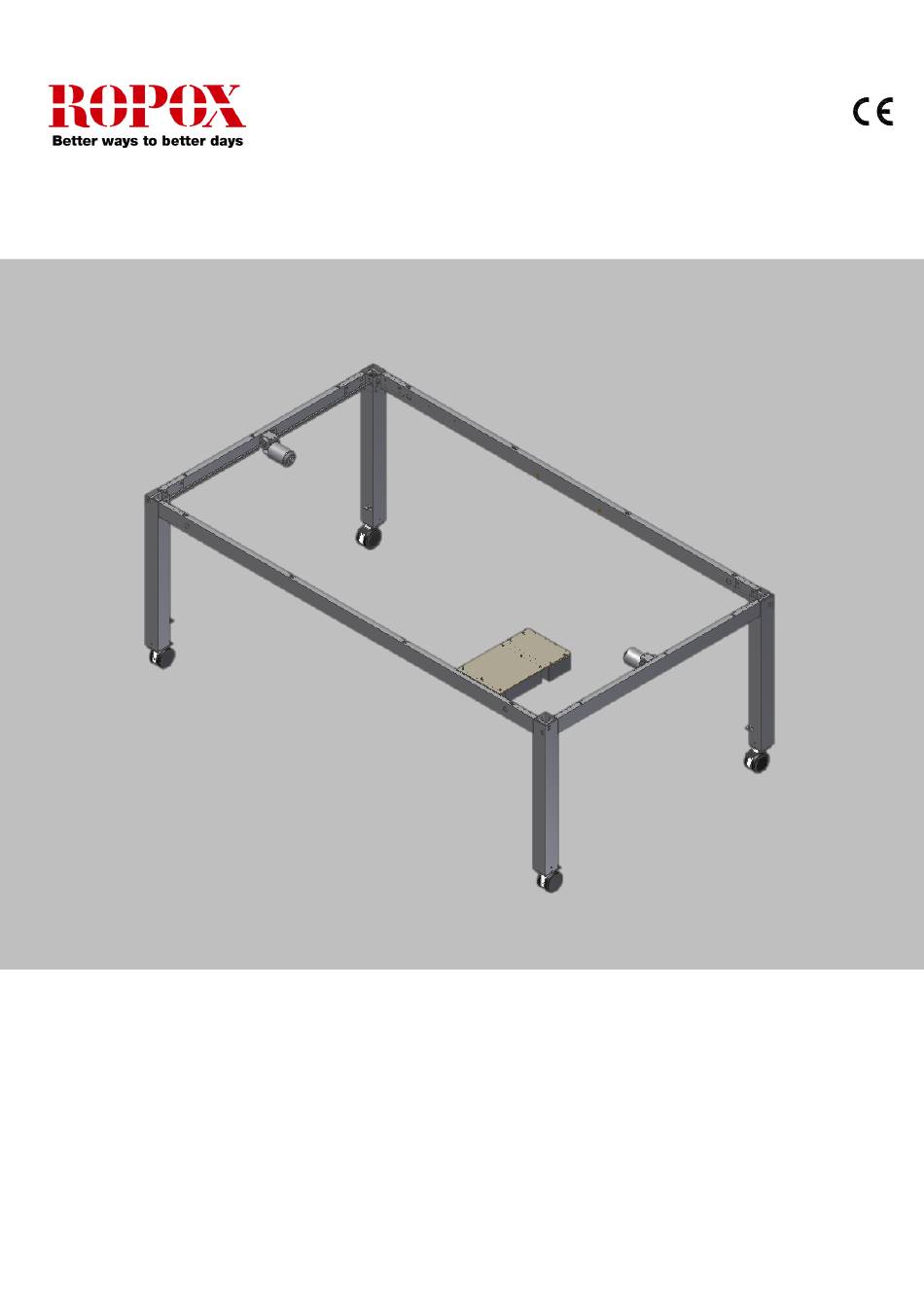

- Page 1 4Single Battery User manual Installation instructions This manual must always accompany the product PDF 6065 / 12.03.2019...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ........................... 2 1 Introduction ............................3 Technical data ..........................4 List of components .......................... 5 Optional extras ..................Fejl! Bogmærke er ikke defineret. Replacement instructions ........................ 6 Installing the control ..........................8 Replacement instructions ........................ 9 Function test .............................. -
Page 3: Introduction
Product: 4Single Battery Pack Manufacturer: Ropox, DK-4700 Næstved, Tel. +45 55 75 05 00 Area of application: The 4Single Battery Pack is an extra pack for the 4Single electric multifunction table. This replacement kit allows the table to be made even more flexible and easy to transport. -
Page 4: Technical Data
Technical data Product number 4Single Battery Pack (rapid) 50-47013 4Single Battery Pack (heavy load) 50-47014 Materials Steel and misc. plastic parts Surface treatment Powder coating: st. CWS 81283 RAL 7021 mat Power supply 230V AC/2.5A/50Hz Battery Output voltage: 24V DC; Output current limit: Max. 15A Intermittence Max. -
Page 5: List Of Components
List of components 96000588 Control box including: 98002014 Y-lead to safety shutout connectors with resistor 98002013 96000578 Battery (incl. charger) 1 set 97701-731 Mount for control box and 1 set battery 95091012 Screw ø4.8 x 13 30-67840 Control, small surface (6 x 3 cm) 3.1 Optional extras 96000629 Split cable for control... -
Page 6: Replacement Instructions
Replacement instructions Before you start replacing the old control with the battery pack, refer to the list of components to make sure that all parts have been included. See list of components, section 3. Installation must always be carried out by competent personnel. Detach all cables leading to and from the control box before replacing the control. - Page 7 Picture 5-8: Mounting the battery pack. Attach the cables supplied and the existing cables (to motors, anti-crushing strips and controls) as shown in the diagram below. BATTERY Charger Anti-crushing CONTROL BOX strip Motor 2 Motor 1 Page...
-
Page 8: Installing The Control
Installing the control Page... -
Page 9: Replacement Instructions
Replacement instructions Function test Once the control has been replaced and before the unit is used, you must always perform a full test of all of the table’s functions. The same function test must then always be performed at least once a year by competent personnel: 5.1.1 Before testing the battery: 1. -
Page 10: Safety
• Only Ropox’s original spare parts may be used when replacing parts. If other spare parts are used, any right to make a claim under warranty may be revoked. -
Page 11: Maintenance
• Check that all leads are correctly fitted and are undamaged. Fill in the service form after each inspection. See section 7.1. Only Ropox’s original spare parts may be used when replacing parts. If other spare parts are used, any right to make a claim under warranty may be lost. -
Page 12: Service Forms, Operation And Maintenance
Service forms, operation and maintenance Service and maintenance Serial no. Service and maintenance Serial no. Date: Date: Signature: Signature: Comments: Comments: Service and maintenance Serial no. Service and maintenance Serial no. Date: Date: Signature: Signature: Comments: Comments: Service and maintenance Serial no. Service and maintenance Serial no. -
Page 13: Waste Disposal
Faults Possible solutions • Check that the battery is charged. If the battery The height of the frame cannot be adjusted (feels level is so low that it is recommended that you difficult to adjust) recharge it, a warning sound will beep for 3 seconds. -
Page 14: Ce Declaration
8 CE declaration EU Declaration of Conformity Ropox hereby declares that the following products 50-47013 4Single Battery Pack (rapid) 50-47014 4Single Battery Pack (heavy load) are classified as class I and conform to the following directives and standards: Directives and Standards For standards and directives with which conformance is achieved, please refer to LogicData, the supplier of the battery pack. -
Page 15: Complaints
Complaints All inquiries concerning complaints must be directed to the distributor representing Ropox on the market in question. Cf. Ropox General Terms of Sale and Delivery. Ropox A/S Ringstedgade 221 DK – 4700 Naestved Tel.: +45 55 75 05 00 Fax.: +45 55 78 05 50 E-mail: info@ropox.dk...
