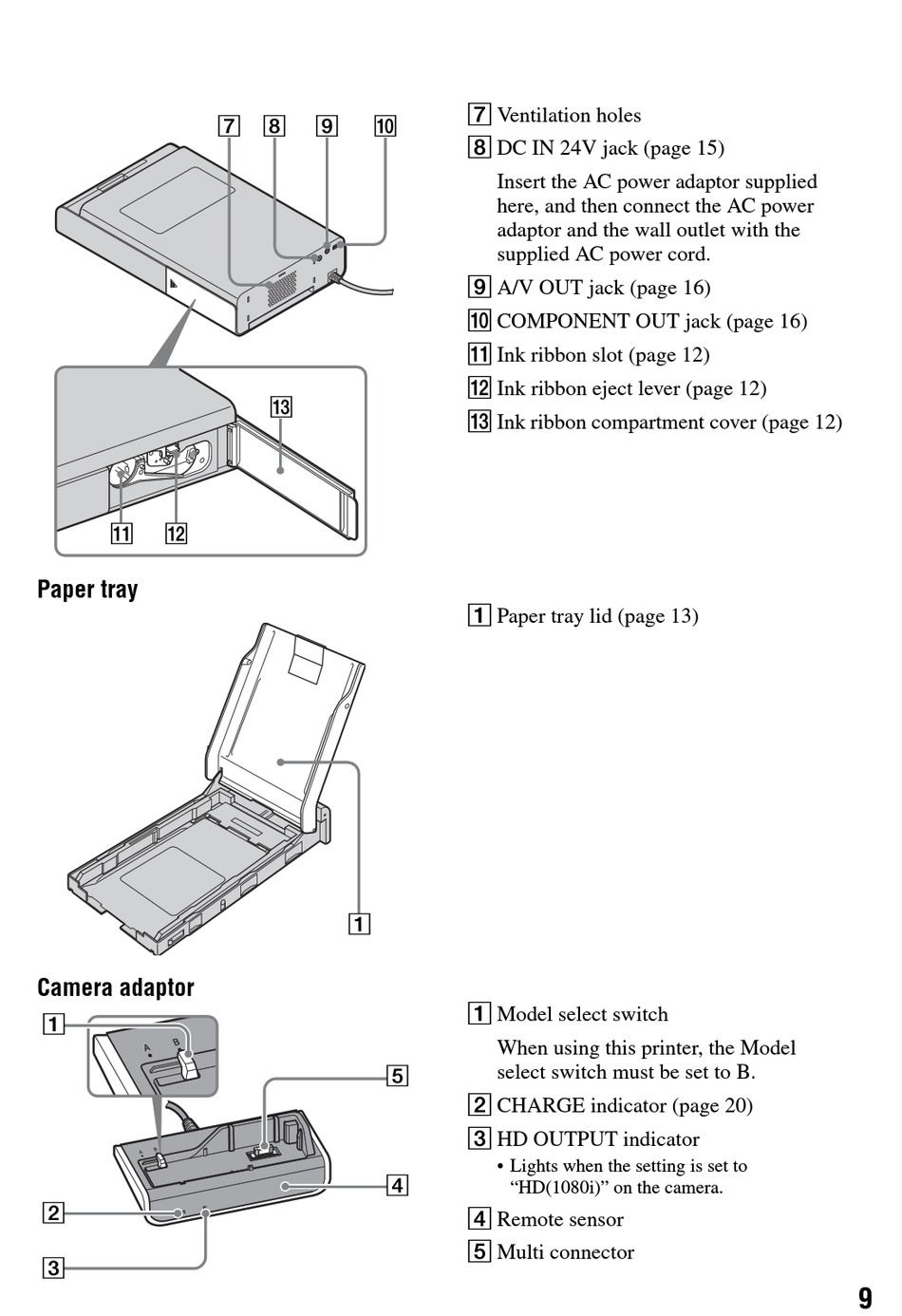

Paper tray
Camera adaptor
A
B
C
G H I J
M
A
E
D
G Ventilation holes
H DC IN 24V jack (page 15)
Insert the AC power adaptor supplied
here, and then connect the AC power
adaptor and the wall outlet with the
supplied AC power cord.
I A/V OUT jack (page 16)
J COMPONENT OUT jack (page 16)
K Ink ribbon slot (page 12)
L Ink ribbon eject lever (page 12)
M Ink ribbon compartment cover (page 12)
A Paper tray lid (page 13)
A Model select switch
When using this printer, the Model
select switch must be set to B.
B CHARGE indicator (page 20)
C HD OUTPUT indicator
• Lights when the setting is set to
"HD(1080i)" on the camera.
D Remote sensor
E Multi connector
