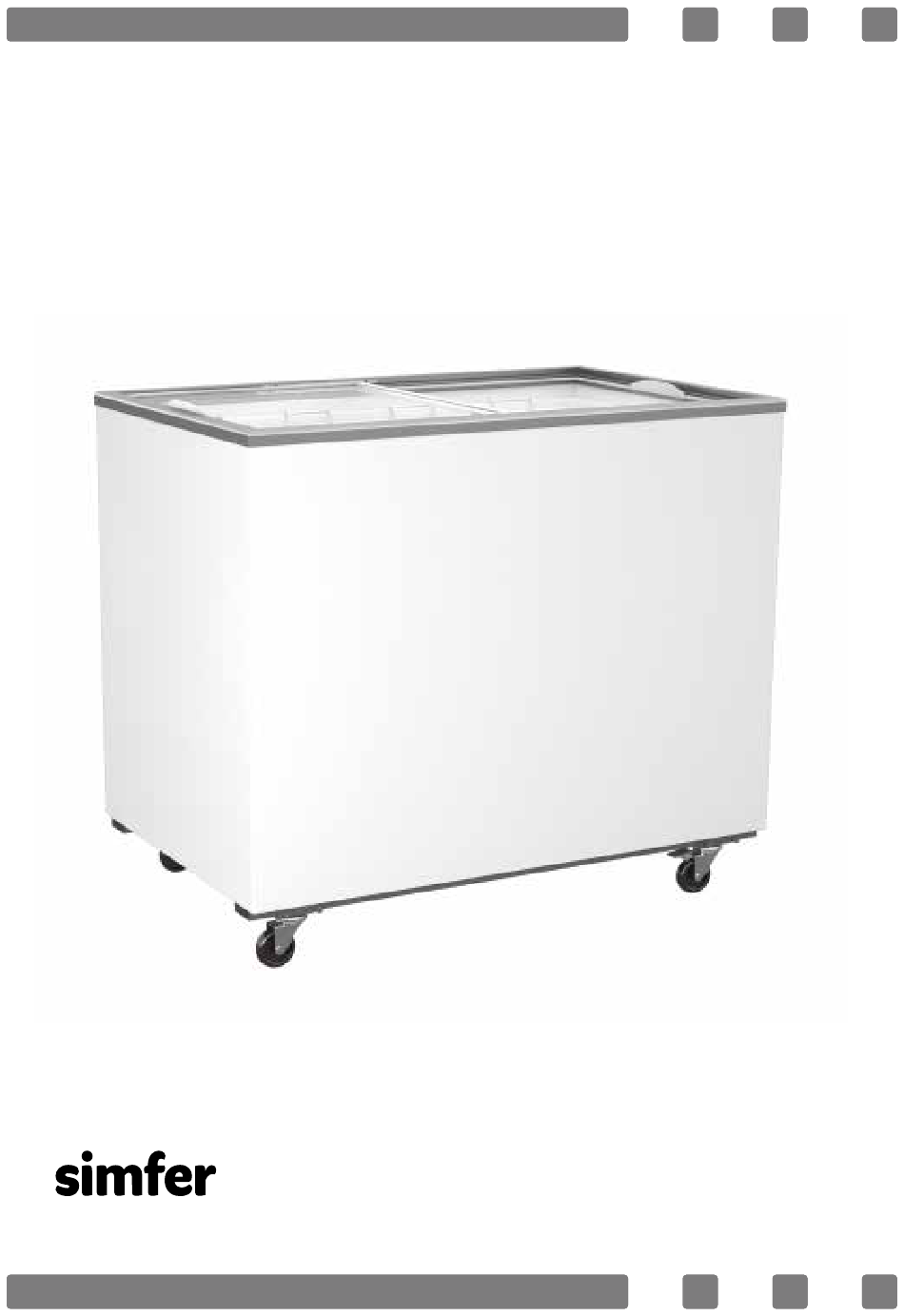

- Page 1 CONSERVATORS Models SYD 150 MD DC SYD 210 MD DC SYD 310 MD DC SYD 410 MD DC SYD 550 MD DC SYD 650 MD DC USER MANUAL...
- Page 2 Dear Customer, Thank you for choosing Simfer products. We aim to allow you to op- timally and efficiently use this environment-friendly product produced in our modern facilities under precise conditions with respect to sense of quality in total. We advise you to read this user manual thoroughly before using the...
-
Page 3: Table Of Contents
CONTENTS SECTION 1 Safety Warnings..............4 SECTION 2 Overview and Technical Specifications.........9 Technical Specifications ............10 SECTION 3 Installation and Initial Operation.........12 Glass Mounting Instructions..........14 Castor Mounting Instructions..........15 SECTION 4 Installation.................18 Operation of the Freezer............19 Thermostat Setting.............20 SECTION 5 Cleaning, Maintenance and Transportation of Your Freezer..22 What To Do Before Calling For Authorized Service.....25 SECTION 6 Compliance With AEEE Regulations And Waste Disposal... -
Page 4: Safety Warnings
SAFETY WARNINGS 1. Your product is set for 220-240 V 50 Hz mains power. Use of incompatible voltage may cause your product to become inoperable or a fire. 2. Your product is designed and manufactured only to preserve frozen packaged foods in applicable temperature. - Page 5 9. For your safety, in order to eliminate the risk of electric shock and fire there must be a breaker sys- tem with a residual current device in your electrical wiring. Our firm is not responsible for failures and losses which may occur as a result of using the prod- uct on an ungrounded grid.
- Page 6 16. In order to avoid your product from sliding or overturning, place the product on a non-tilted flat surface. Adjust the height of pre-set legs after place- ment. 17. In case of any failure within your product, taking measures for food preserved within the deep freeze is fully under responsibility of the user.
- Page 7 Unplug the product and disconnect the power of the device by turning the main switch off and contact nearest Simfer authorized service. 29. Do not store explosive materials such as aerosol cans with flammable propellants inside this product.
- Page 8 • Except materials recommended by the man- ufacturer, no electric appliances should be used within food storage compartment of the appli- ance. • In order to decrease the risk of ignition, this appliance shall only be installed and maintained by Simfer services.
-
Page 9: Overview And Technical Specifications
SECTION 2 OVERVIEW AND TECHNICAL SPECIFICATIONS Aluminium Frame Profile Glass Cover Handle Lock External Body (Adver- tisement Application Area) Castors... -
Page 10: Technical Specifications
TECHNICAL SPECIFICATIONS Brand Simfer Simfer Simfer Model SYD 650 MD DC SYD 550 MD DC SYD 410 MD DC COMMERCIAL COMMERCIAL COMMERCIAL Product Category CONSERVATORS CONSERVATORS CONSERVATORS Refrigerant R404A R404A R404A Total Gross Volume (lt) Total Net Volume (lt) Cooling System... - Page 11 Power consumption test standard for commercial type products is prEN 16902. Specifications of the product are available on the identification plates on the product. Simfer reserves the right to make changes on the specifications of the products without prior notice.
-
Page 12: Installation And Initial Operation
SECTION 3 INSTALLATION AND INITIAL OPERATION Selection of Installation Places Operating environment of the product is very important to ensure that your product operates without any problem. When you are se- lecting the operating environment, • Do not place your product outdoors so that it shall be exposed to weather conditions. - Page 13 The fuse of the mains socket should be maximum 16A. CAUTION! On installations performed by the Simfer authorized service, custom- er shall be informed and advised about the proper installation location, however final decision on the installation location shall be made by the customer.
-
Page 14: Glass Mounting Instructions
GLASS MOUNTING INSTRUCTIONS Figure 1 Figure 2 Place your product on a flat, level ground. Mount your glass by plac- ing it on the mounting rack below by placing one side, then placing on the other side and fix it as shown in Figure 2. Figure 3 Figure 4 . -
Page 15: Castor Mounting Instructions
Picture 5 . Place the glass stoppers, tabs facing back, on the lower and upper rack and press them to ensure that they are fixed on the racks, as shown in Figure 5. Apply the same procedure on the other side, place the 4 stoppers on the lower and upper racks. - Page 16 Figure 4 Figure 5 Figure 5 Climate Class Description Your freezer provides best cooling performance in the conditions specified below as per the climate class. Thus, ensure that the environ- ment where your freezer shall be used conforms with this temperature ranges.
- Page 17 Product Climate Class Description This is the temperature range determined by the protection temper- ature of the product to be placed inside the freezer. Climate Class Hottest product temperature -18,0 ºC -7,0 ºC Special product classification SİMFER conservators you have purchased have the climate class of BC1 and they are manufactured so that they shall operate in an aver- age ambient temperature between +16ºC and +35ºC.
-
Page 18: Installation
SECTION 4 LOCATION Possible Installation Locations: 1- Ensure that a clearance of 150 mm (15 cm) is available between the wall and your freezer so that solely the back of your freezer faces the wall. 2- When you place it on the corner, leave a clearance of 150 mm (15 cm) on its back so that it faces the corner. -
Page 19: Operation Of The Freezer
Use only genuine Simfer spare parts. Non-genuine spare parts may cause risks for you and may damage your product. Place your product where you desire. Consider the placing rules spec- ified in the manual during placement. Level your product laterally and vertically with a spirit level. Perform the levelling procedure with the adjustable legs on the front lower part of your freezer. -
Page 20: Thermostat Setting
Figure 6 THERMOSTAT SETTING Temperature settings of your freezer is performed in our factory for operation in suitable conditions. Temperature for the preservation of the food is adjusted with the thermostat by observing it from the thermometer on your freezer (op- tional). - Page 21 DEFROSTING OPERATION High temperatures and humidity and frequent operation of your product may increase the rate of frost. The more the frost, the more the operation time. And this causes an increase in the power con- sumption. Turn off your product and make sure that the frost is re- moved in such a case...
-
Page 22: Cleaning, Maintenance And Transportation Of Your Freezer
SECTION 5 CLEANING, MAINTENANCE AND TRANSPORTATION OF YOUR CONSERVATOR CLEANING Cleaning of your product consists of two stages, namely internal cleaning and external cleaning. Always follow the warnings below before starting the cleaning oper- ation. WARNING! • Always unplug your freezer before any cleaning operation. •... - Page 23 Internal Cleaning • Place the products inside your freezer to a cool environment where they shall retain their temperatures. • İBefore performing internal cleaning, wait until the temperature of the inner parts of the product increases up to the ambient tempera- ture.
- Page 24 WARNING! If your product shall be stored in a closed environment after turning it off; Do not cover your product with plastic material. A plastic material may cause your product release odour and perspiration as it does not permeate air through it. Perspiration may cause rusting. If you do not keep your product with its door open, it may release odour.
-
Page 25: What To Do Before Calling For Authorized Service
Power ratings of the lamps or LEDs used in your products are specified on the plate inside the freezer or in the installation area of the lamps. Lamps and LEDs used in your products should only be operated on by Simfer Authorized Services. -
Page 26: Compliance With Aeee Regulations And Waste Disposal
SECTION 6 COMPLIANCE WITH AEEE REGULATIONS AND WASTE DISPOSAL 1. This product does not contain the dangerous and prohibited materials indicated in "Waste Electrical and Elec- tronic Equipment Control Regulation" published by Ministry of Environment and Urbanisation of Republic of Turkey. Com- plies with AEEE Regulation. - Page 27 EC CONFORMITY DECLARATION WE, AS THE MANUFACTURER/EXPORTER, SERSİM DAYANIKLI TÜKETİM MALLARI KOLLEKTİF ŞİRKETİ, HEREBY DECLARE THAT THE DEVICE, DETAILS OF WHICH ARE SPECIFIED BELOW COMPLIES WITH ALL THE BASIC SECURI- TY REQUIREMENTS OF THE “REGULATION ON ELECTRICAL INSTALLATIONS DESIGNED TO BE USED WITHIN CERTAIN VOLTAGE LIMITS-LVD (2006/95/AT)”, WHICH HAS BECOME EFFEC- TIVE UPON BEING PUBLISHED IN THE OFFICIAL GAZETTE DATED 30.12.2006 AND NO.26392 AND THE “ELECTROMAGNATIC COMPLIANCE REGULATON-EMC (2004/108/AT)”...
